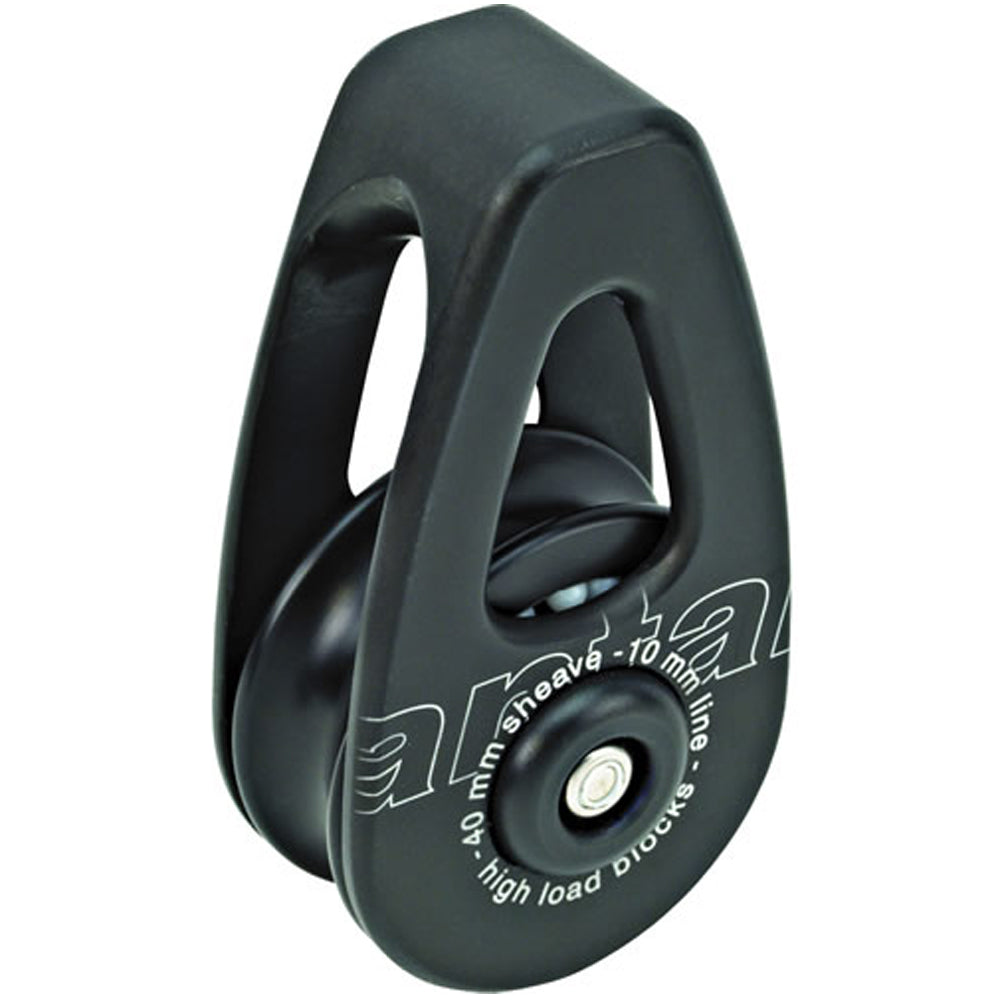

Antal High Load Block 55 mm
SKU:
ANTH150
|
Manuf. Code:
H150
Unit price
/
Unavailable
Antal High Load Block 55 mm is backordered and will ship as soon as it is back in stock.
This product ships from Italy.
Description
Description
These small and light blocks are the best solution for very high loads when sliding is not important.
The very small sheave is fitted with a Composite Fibre bushing. The one piece frame is made for line connection
The 3 blocks (D = 30, 40 and 55 mm) give an 8 to 1 system. This system is specially designed for the backstay or the boom-vang.
Our Part # ANTH150 | Antal Part # H150
Technical Information
Technical Information

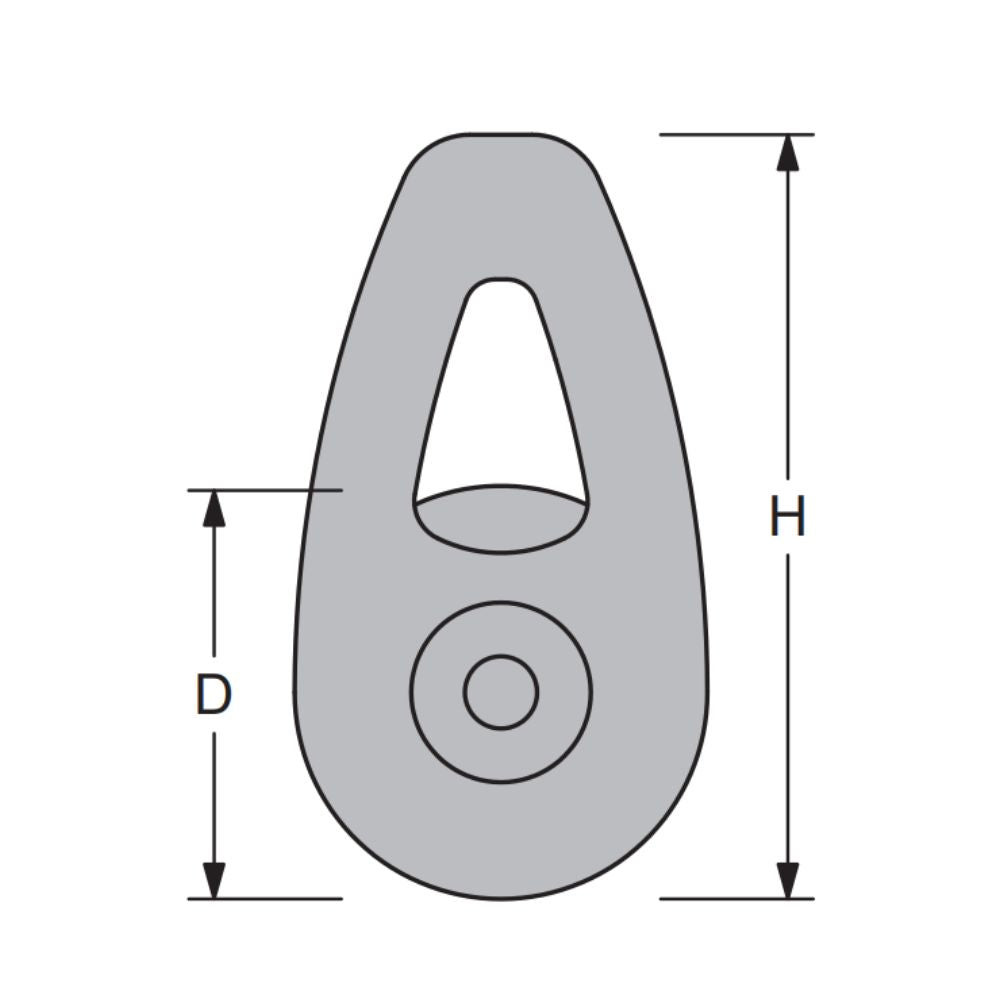

Description | Imperial | Metric |
---|---|---|
Ø Line | 2/5 - 1/2 in. | 10.00 - 12.00 mm. |
D | 2 1/6 in. | 55.00 mm. |
H | 3 4/7 in. | 91.00 mm. |
Safe Working Load | 5292.00 lb. | 2400.00 kg. |
Weight | 0.39 lb. | 0.18 kg. |
