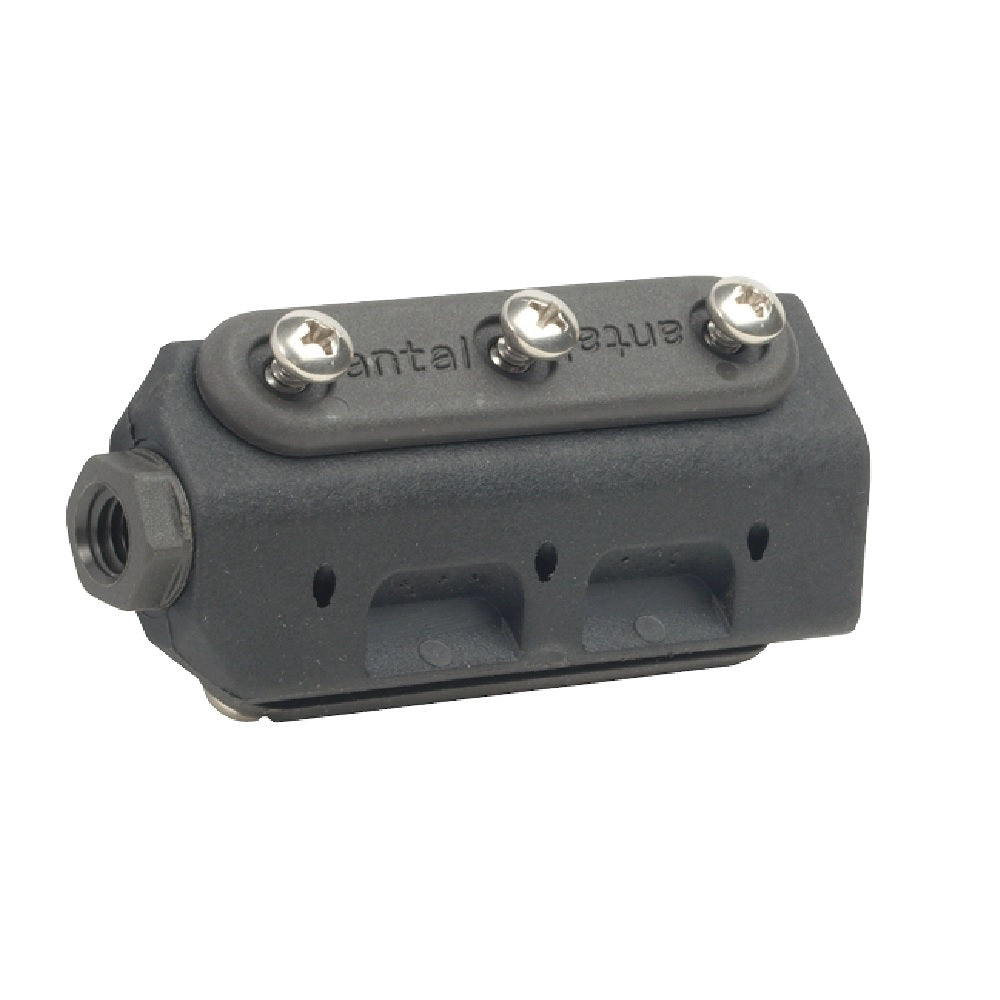

Antal Batten Car Receptacle - Symmetric SBR90 (Round) w/ M10 Toggle - Length: 3.54 in (90 mm) & Dia: 0.47 in (12 mm)

SKU: ANT609320  |  Manuf. Code: 609.320
$99.90 USD
This product ships from Italy.

Description

The SBR is different from standard batten receptacles in that it fits inside the batten pocket, making it invisible on the outside except for the small fastening plate - thereby almost completely eliminating chafe on the mast and rigging. Moreover the batten will be not on one side, but perfectly in the middle.

Each SBR includes: the main body; side plates to fix the receptacle to the sail; trimm. Ing screw for batten compression; the cap with a threaded hole to screw the receptacle in the toggle of the batten slider.

Our Part # ANT609320 | Antal Part # 609.32

Technical Information


DescriptionImperialMetric
MaterialAluminum
TypeRound
Length3 35/64 in.90.00 mm.
Height1 47/64 in.44.00 mm.
Batten Dimensions15/32 in.12.00 mm.
Weight0.18 lb.0.08 kg.
MaterialResin
Fixing Screws6
