Description

Car bodies are machined to precise specifications then honed to an exceptional finish before being treated and anodised for maximum corrosion protection. Stainless steel elements are put through a special high energy finish process to achieve a uniquely smooth edge and surface finish.

Applications

• Mainsheet systems on boats to 17m (56ft)
• Self tacking jib sheet systems on boats to 11m (36ft)
• Genoa sheet systems on boats to 17m (56ft)
• Suitable for boats to 16m (53ft) with 1:1 halyard purchase

Materials

• Alloy track car and end stops
• Acetal sliderods
• Grade 316 stainless steel fixtures

Features

• Low profile
• Lightweight alloy car bodies
• System includes sliderod car special 1231mm (48 15/32") Series 30 track and two low profile end stops
• Car has 2 attachment lugs for the soft eye end of the halyard and tensioning tail.
• Car has dual over-size plunger stops that can be locked in the "up" position
• The special track has oversize plunger stop holes at 50mm (1 31/32") spacing for the associated high loads and is drilled and tapped to accept the low profile end stops

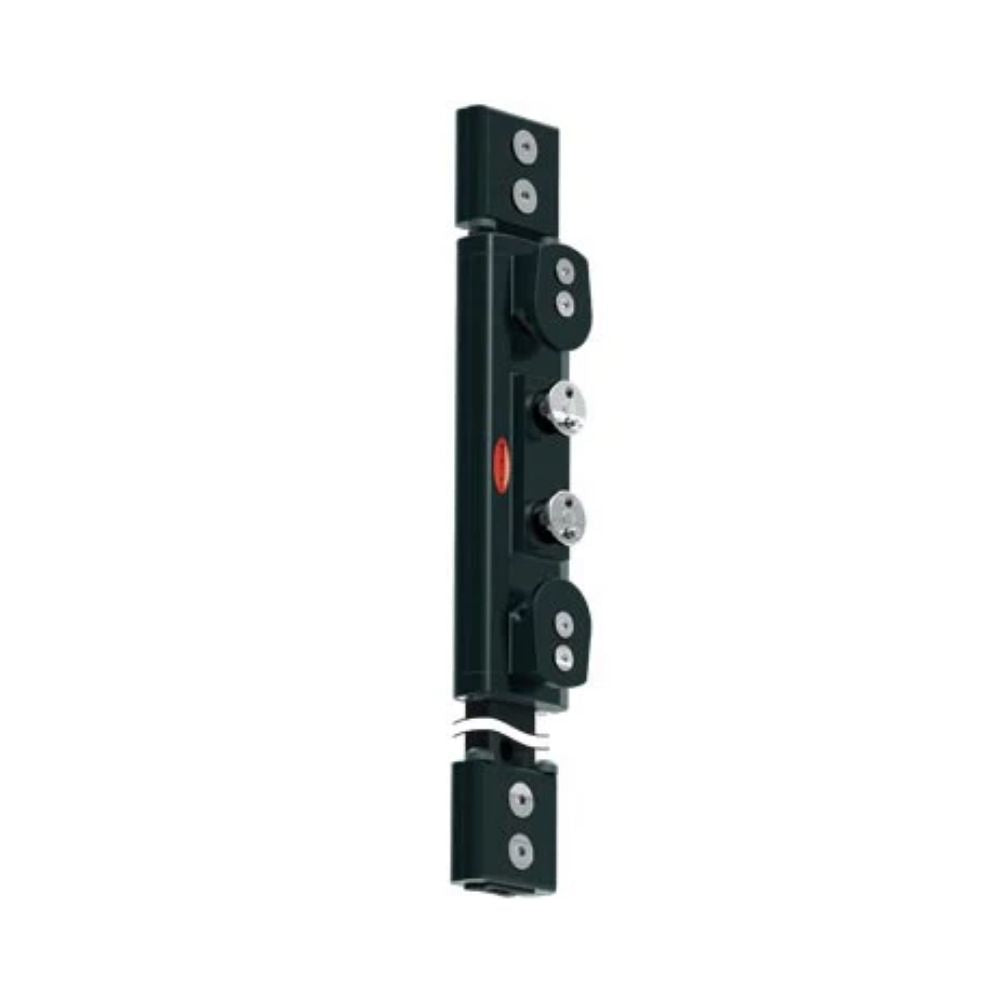

Our Part # RONRC53047 | Mfr. Part # RC53047

Technical Information

Length: 210 mm
M.W.L.: 2300 kg
B.L.: 4600 kg
Weight: 1940 g
