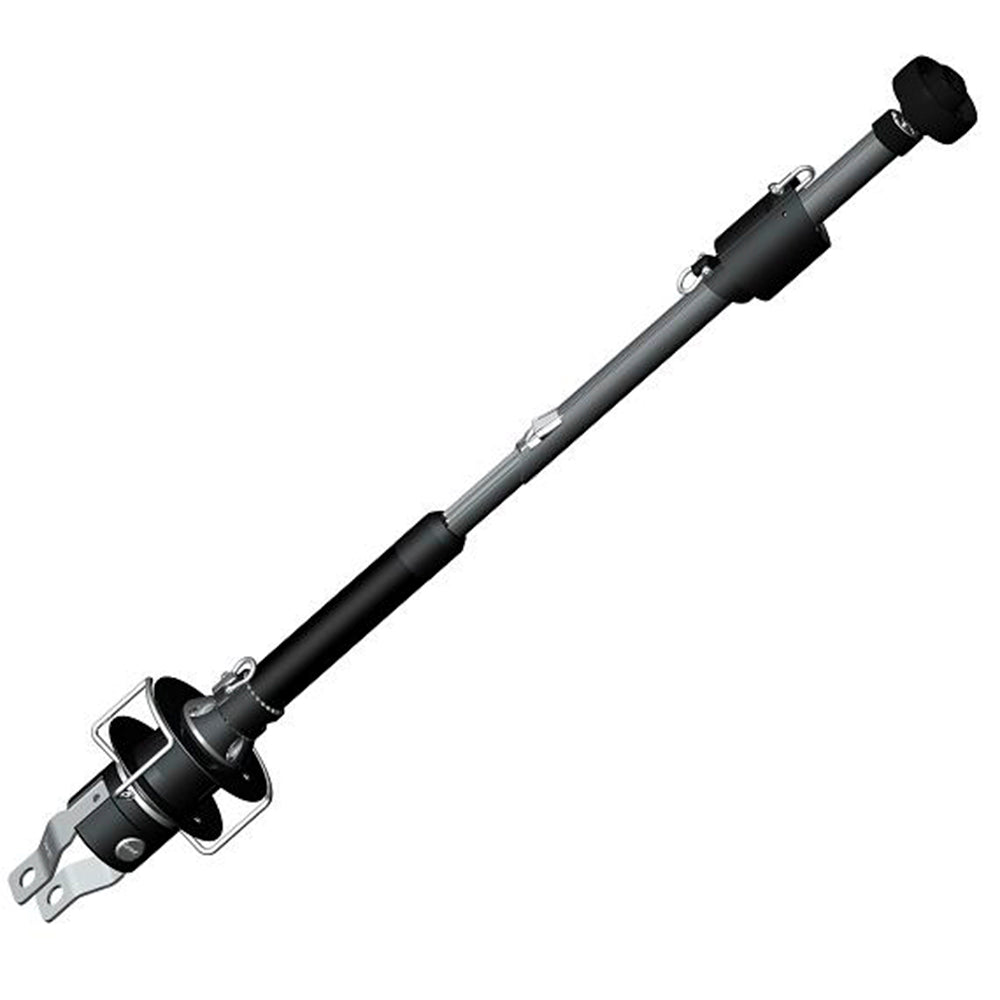

Facnor Jib Furlers - LS 100 - Boat Size: 26.0 - 30.0 ft (7.5 - 9.0 m)
Facnor Jib Furlers - LS 100 - Boat Size: 26.0 - 30.0 ft (7.5 - 9.0 m) is backordered and will ship as soon as it is back in stock.
Description
Description
Like the Facnor carbon furling systems on board of Jean Luc Van Den Heede's 80 footer, the Ls/Lx/Rx drum and swivel are fitted with a "bearing box" (see above). This was tested over ocean races under loads up to 20 to 30 times higher than a 30ft cruising boat. Even under high halyard tension furling remains easy. This innovative system is now available for every boat thanks to Facnor continuous development.
- Smooth rotation even under high loads.
- Maintenance free.
- Large range of new sections.
- Strong connections.
- Adjustable guides.
- Insulation between different materials.
- 40 micron hard anodizing.
Fits Boats:24' to 29' (7.5 m to 9 m).
Our Part # FACLS100 | Facnor Part # 10315444600
Features
Features
- Various attachments: Alternative 2-to-1 block fitting.
- Secured sail connection: Smooth push spring release device (except for FX+900 which is secured with clevis pin), user friendly, unique design "by Facnor".
- Anti-impact cover for swivel: Delivered in standard kit in neoprene, high-visibility marking.
- Easy operation: Captive quick release pin HR stainless steel.
- Carbon housing: Strong mechanism bodies, machined from one single piece.
- Easily fitted furling line: Thanks to a round and smooth notch on the drum edge.
- Start and Go Rotation: Drum self-locking device (optional). Fitted with a ratchet in S/S Duplex.
- 360 orientating line exits: Stainless steel guide.
- Adjustable fastenings: Top and bottom adapted attachments.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Weight | 16 kg | 34.2 lb |
Approx. Boat length | 8.0 - 9 m | 24 - 29 ft |
Max. area of Genoa | 28 m² | 301 ft² |
Max Forestay length | 10.4 m | 34.5 ft |
Forestay Ø | 6 mm | 1/4 in |
Forestay bottom pin Ø | 10 mm | 3/8 in |
Length of optional link plates | 10 cm | 3 15/16 in |
Length of optional turnbuckle fitting | 20 cm | 7 7/8 in |
Optional furling line kit | None | |
Tack fitting | Fixed | |
Drum plates | Not removable | |
Foil reference | SX33 | |
Swivel reference | C33 |
