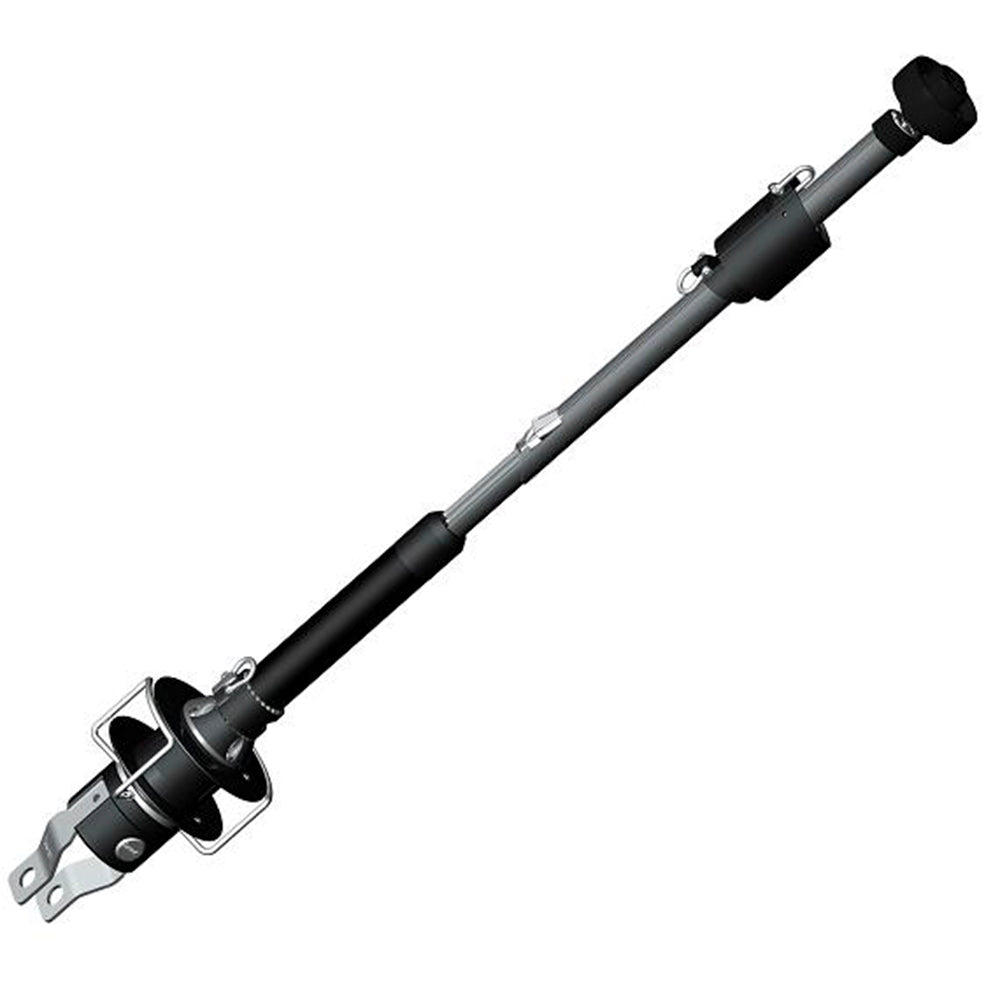

Facnor Jib Furlers - LS 60 - Boat Size: 20.0 - 23.0 ft (6.1 - 7.0 m)

SKU: FACLS60  |  Manuf. Code: 10114444600
¥141,548 JPY

Description

Like the Facnor carbon furling systems on board of Jean Luc Van Den Heede's 80 footer, the Ls/Lx/Rx drum and swivel are fitted with a "bearing box" (see above). This was tested over ocean races under loads up to 20 to 30 times higher than a 30ft cruising boat. Even under high halyard tension furling remains easy. This innovative system is now available for every boat thanks to Facnor continuous development.

  • Smooth rotation even under high loads.
  • Maintenance free.
  • Large range of new sections.
  • Strong connections.
  • Adjustable guides.
  • Insulation between different materials.
  • 40 micron hard anodizing.

Fits Boats:20' to 23' (5.5 m to 7 m).

Our Part # FACLS60 | Facnor Part # 10114444600

Technical Information

DescriptionMetricImperial
Weight11 kg24 lb
Approx. Boat length6 - 7 m20 - 23 ft
Max. area of Genoa15 m²161 ft²
Max Forestay length7 m24 ft
Forestay Ø5 mm3/16 in
Forestay bottom pin Ø8 mm5/16 in
Length of optional link plates10 cm3 15/16 in
Length of optional turnbuckle fitting20 cm7 7/8 in
Optional furling line kitNone
Tack fittingFixed
Drum platesNot removable
Foil referenceSX25
Swivel referenceC25
