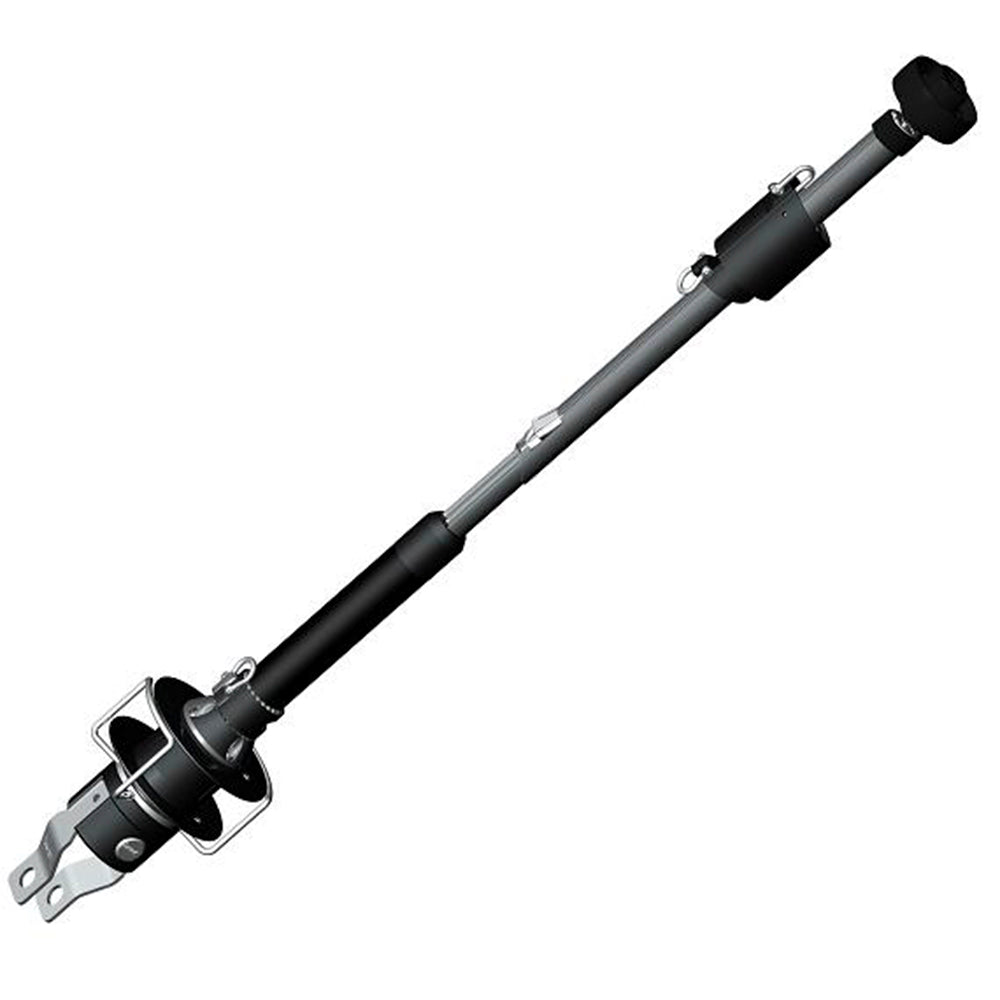

Facnor Jib Furlers - LS 70 - Boat Size: 24.0 - 26.0 ft (7.3 - 8.0 m)

SKU: FACLS70  |  Manuf. Code: 10213224600
¥190,144 JPY

Description

Like the Facnor carbon furling systems on board of Jean Luc Van Den Heede's 80 footer, the Ls/Lx/Rx drum and swivel are fitted with a "bearing box" (see above). This was tested over ocean races under loads up to 20 to 30 times higher than a 30ft cruising boat. Even under high halyard tension furling remains easy. This innovative system is now available for every boat thanks to Facnor continuous development.

    Smooth rotation even under high loads. Maintenance free. Large range of new sections. Strong connections. Adjustable guides. Insulation between different materials. 40 micron hard anodizing.

Fits Boats:21' to 28' (6.5 m to 8 m).

Our Part # FACLS70 | Facnor Part # 10213224600

Technical Information

DescriptionMetricImperial
Weight11.9 kg26.09 lb
Approx. Boat length6.5 - 8 m21 - 26 ft
Max. area of Genoa20 m²215 ft²
Max Forestay length8.4 m27.6 ft
Forestay Ø5 mm3/16 in
Forestay bottom pin Ø8 mm5/16 in
Length of optional link plates10 cm3 15/16 in
Length of optional turnbuckle fitting20 cm7 7/8 in
Optional furling line kitNone
Tack fittingFixed
Drum platesNot removable
Foil referenceSX25
Swivel referenceC25
