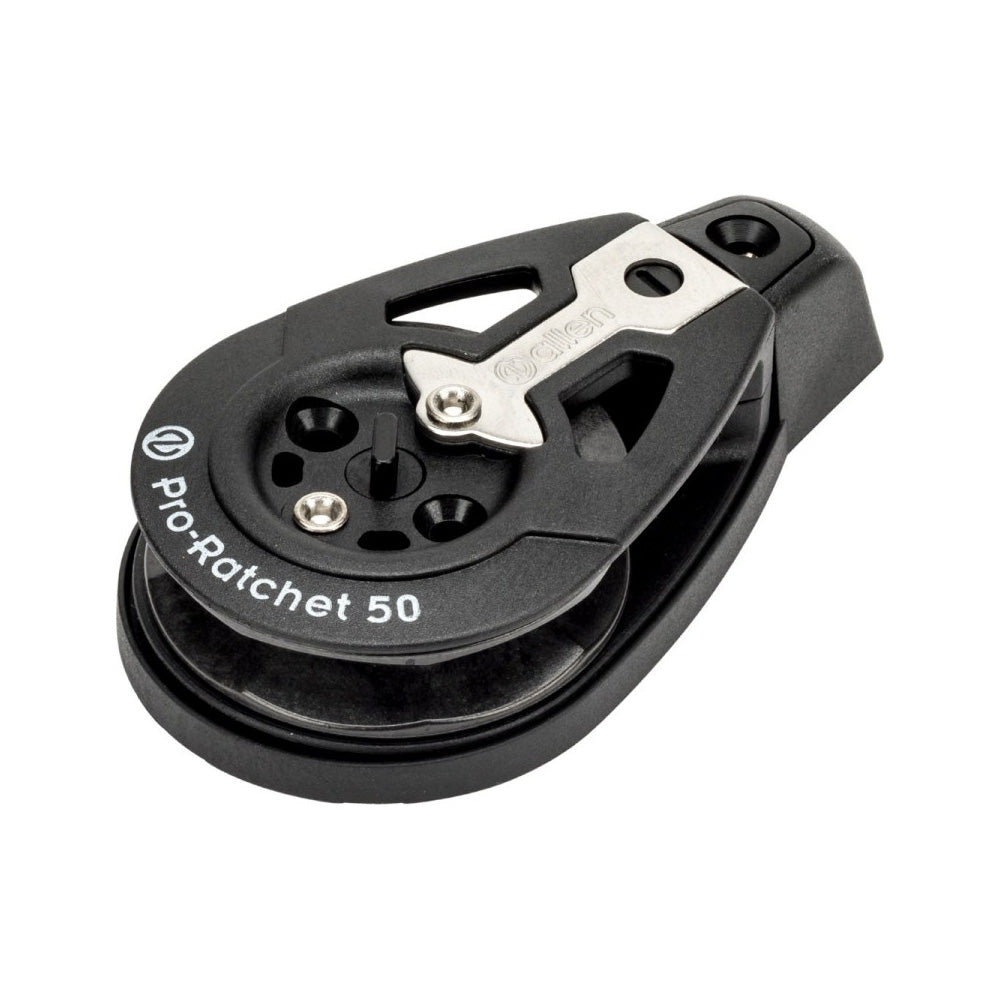

Pro-Ratchet 50 With Cheek Adaptor.
The Pro-Ratchet 50 features a hardwearing nylon sheave with eight V grips to give an extreme hold on any rope. In the middle of the block is a switch that can be used even under load to turn the ratchet on or off. This version comes with a cheek side plate, to allow mounting to any flat surface. Three screws are required to complete installation.
Our Part # ALL-A2150C | Mfr. Part # A2150C
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Breaking load | 1543.5 lbs. | 700.0 kg |
| Length | 3 5/8 in | 92.0 mm |
| Maximum line diameter | 3/8 in | 10.0 mm |
| Maximum working load | 441.0 lbs. | 200.0 kg |
| Shackle pin | 1/6 in | 4.0 mm |
| Sheave size | 2.0 in | 50.0 mm |
| Weight | 2.82 oz | 80.0 g |
