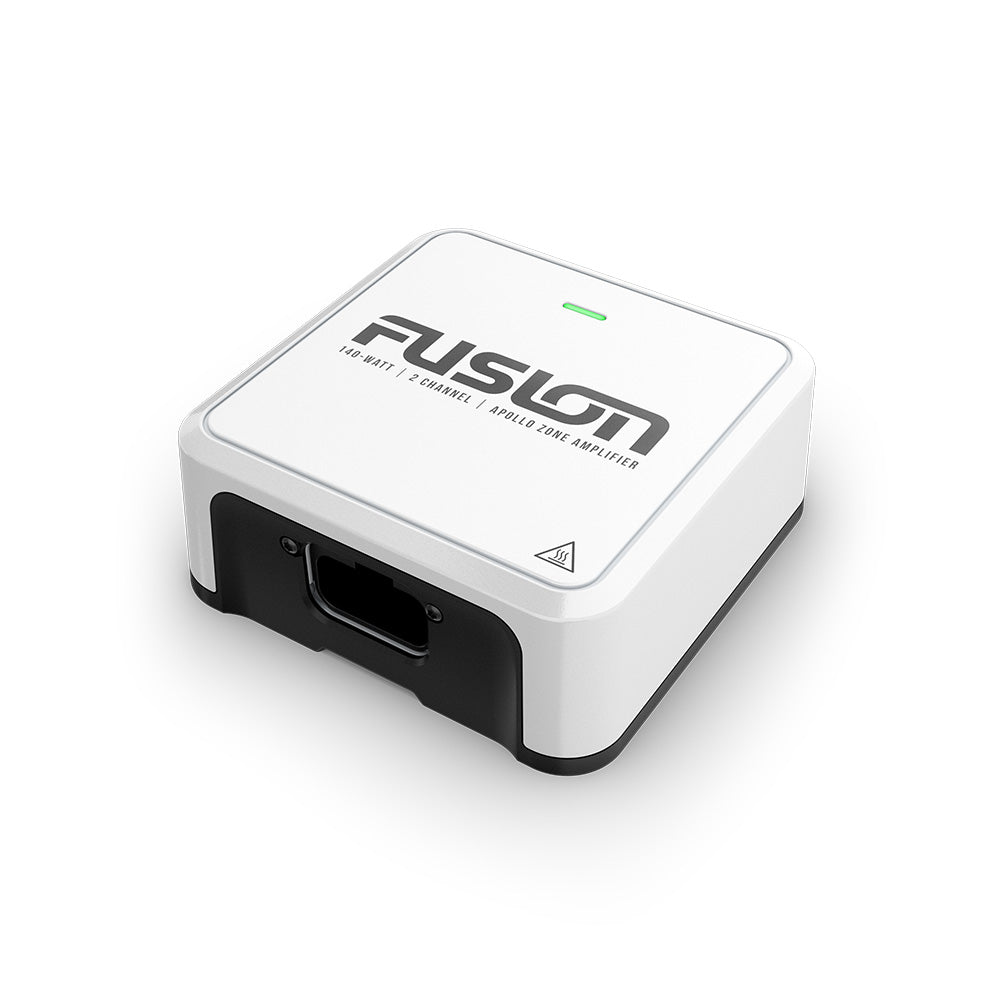

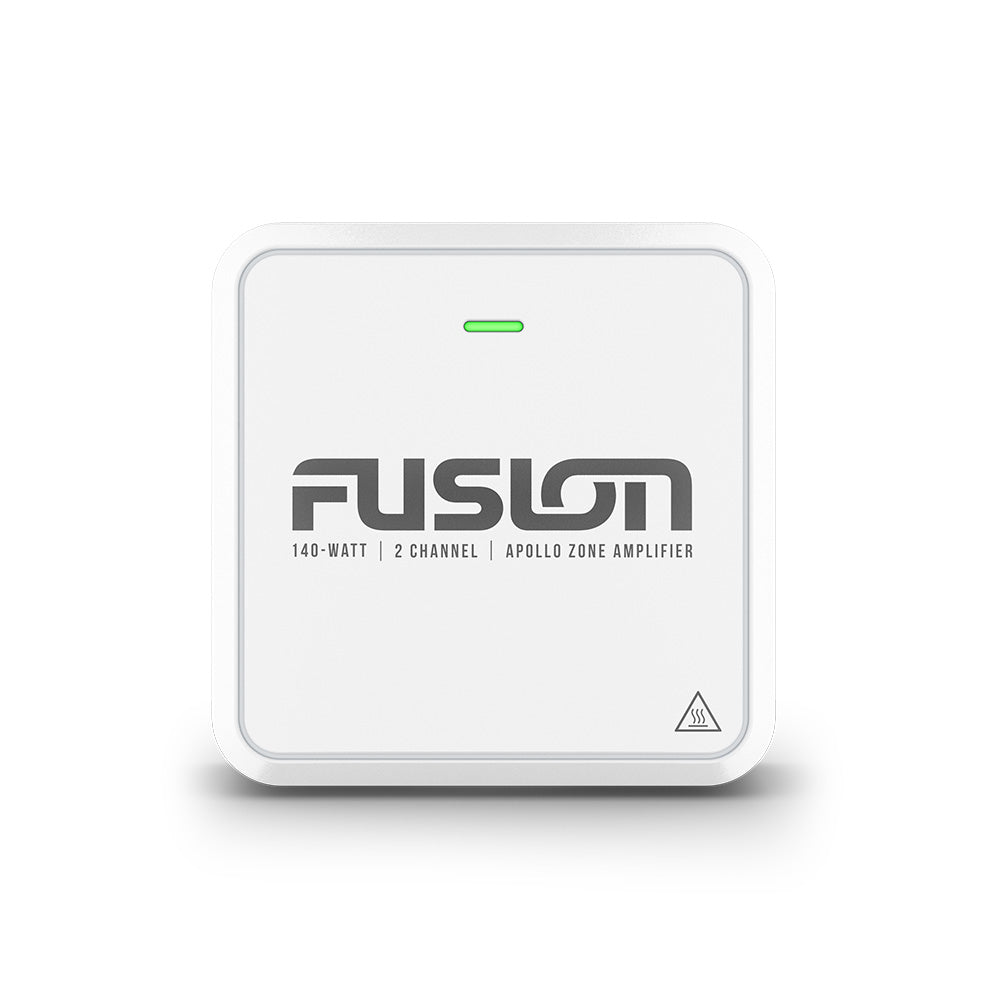

Apollo Marine Zone Amplifier - 140W
Amplify the moment with an Apollo marine amplifier – designed specifically for use with your FUSION DSP-enabled marine stereo and Fusion speakers.
This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. With 20-watt RMS per channel (at 4 ohms), this 2 channel amplifier allows you to add an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link app on a compatible smartphone).
FUSION Apollo AP-DA214
Technical Specifications:
- Peak Power - 140 Watts
- Power at 4 ohm - 20 Watt RMS
- Power at 2 ohm - 30 Watt RMS
- Operating Voltage - 10.8 to 32 VDC
- Class D Amplifier
- Water Rating - IPX7
Our Part # GAR-010-02569-00 | Mfr. Part # 010-02569-00
Class-D Amplifier Technology: The highly efficient Class-D design provides 1500-watt peak power while drawing less current than a standard Class-AB amplifier. This design provides increased efficiency and power output to your speakers and subwoofers, letting you enjoy your music for longer without needing to worry about battery drain.
1500-Watt Peak Power: With a peak power of 1500-watts, you can easily power up to 6 pairs of speakers OR up to 4 pairs of speakers and 1 subwoofer.
Marine-Ready Design with Conformal Coated PCBs: Extending the life of your amplifiers, the Signature Series amplifiers are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.
Rigid Aluminum Alloy Heat Sink: Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.
Stainless Steel Mirror Finish: The polished stainless steel control panel cover conceals and helps protect all cable connections and the settings control panel while providing an attractive finish to complement any installation.
Speaker Configuration: Whether you require 2 ohms per channel or 4 ohms bridged, the Signature Series amplifier has your installation options covered to achieve optimum output levels. Connect up to 2 speakers per channel (2 x 4 ohm speakers in parallel) with the SG-24DA61500.
Zone Designation: To align with the Fusion Entertainment System Zone philosophy, the input and output connections are labeled as zones.
In the Box:
- Four 8-gauge, self-tapping screws
- 3 mm hex key (for the top cover and power terminals)
- 2.5 mm hex key (for the speaker terminals)
- Polishing cloth
- Spare J1171 compliant 20 A blade-type fuses (only included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Description | Imperial | Metric |
---|---|---|
Dimensions with bracket (W x H x D) | 3.94 x 4.53 x 1.89 in | 10.0 x 11.5 x 4.8 mm |
Dimensions without bracket (W x H x D) | 3.94 x 3.94 x 1.57 in | 10.0 x 10.0 x 3.99 cm |
Weight | 1.0 lb | 0.5 kg |
