Sailboat Boom Vangs: Essential Systems for Mainsail Shape Control

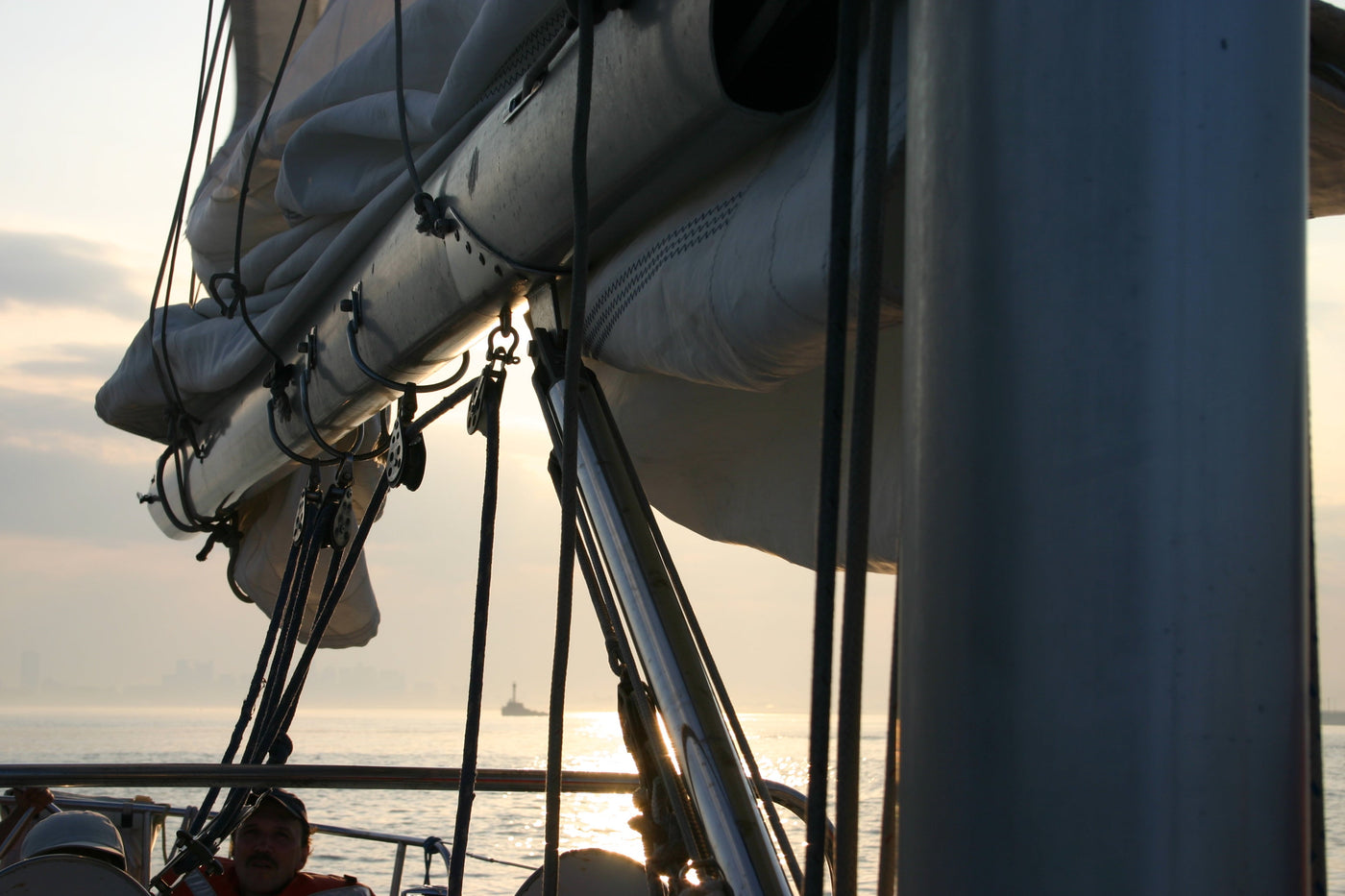

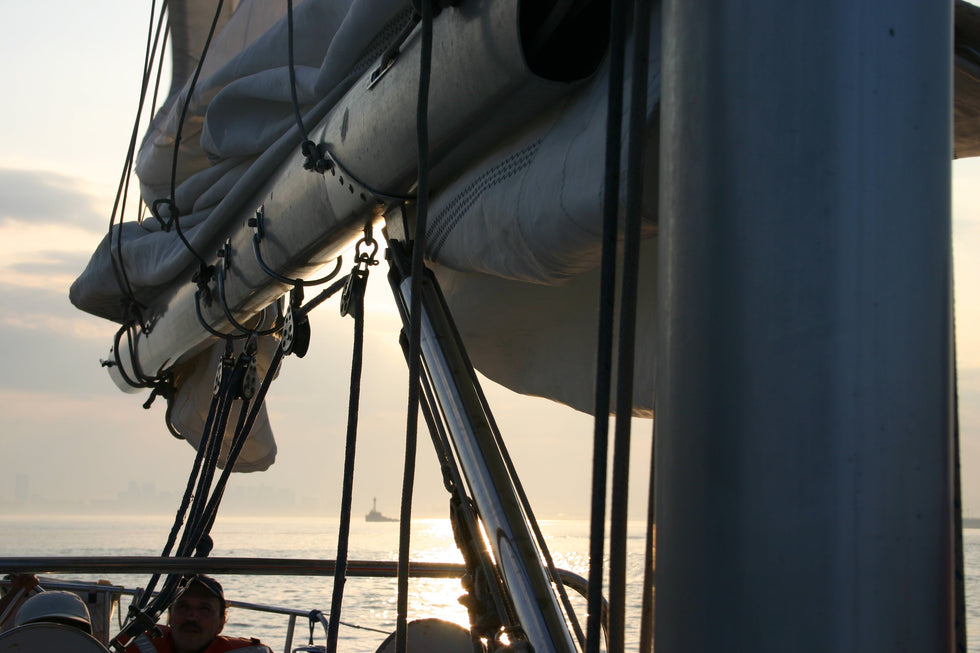

The boom vang stands as one of the most consequential yet frequently underestimated components in your sailboat's control arsenal. This deceptively simple system—connecting your boom to the base of the mast or the deck—delivers the critical downward force that governs mainsail twist, leech tension, and overall sail shape across all points of sail. Whether you're fighting to maintain pointing ability in a building breeze, maximizing drive on a deep reach, or preventing an uncontrolled gybe from launching your boom skyward, your vang system directly influences both performance and safety aboard.
At its core, a boom vang counteracts the natural tendency of wind pressure to lift the boom and allow the upper mainsail to twist open. Without adequate vang tension, the upper third of your mainsail spills wind prematurely, costing you pointing ability upwind and power on reaches. Conversely, proper vang application flattens the sail, tightens the leech, and allows you to ease the mainsheet for better helm balance—all while maintaining the designed airfoil shape that transforms wind into forward motion. On downwind legs, the vang becomes your primary mainsail control, since mainsheet tension primarily affects boom position rather than sail shape when sailing deep.
Modern boom vang systems have evolved dramatically from the simple rope-and-block arrangements of decades past. Today's sailors can choose from traditional block-and-tackle configurations offering precise mechanical advantage, rigid gas-spring units that support the boom while providing adjustable compression, hydraulic systems delivering fingertip control of enormous loads, and sophisticated cascading arrangements designed for the uncompromising demands of offshore racing. Each approach presents distinct advantages depending on your boat's size, your sailing program, and your priorities regarding weight, cost, and ease of adjustment. Understanding these options—and correctly sizing your system for the loads your mainsail will generate—separates a well-tuned boat from one fighting its own rigging.
How to Choose the Right Sailboat Boom Vangs
Selecting the optimal boom vang system requires careful analysis of your vessel's specifications, your typical sailing conditions, and your performance expectations. An undersized vang compromises sail control and risks catastrophic failure under load, while an oversized system adds unnecessary weight, complexity, and expense. The following criteria will guide you toward the right choice for your specific application.
Understanding Vang System Types and Their Applications
Block and Tackle Vang Systems represent the most traditional and widely applicable approach to boom control. These configurations employ multiple sheaves arranged to create mechanical advantage, typically ranging from 4:1 on smaller boats to 16:1 on larger cruisers. The beauty of a well-designed block-and-tackle vang lies in its simplicity, reliability, and ease of repair—every component is visible, serviceable, and replaceable with standard chandlery items. High-quality systems use low-friction ball-bearing blocks, pre-stretched polyester or Dyneema line, and precisely engineered deck and boom attachments. Working load limits span from 500kg for dinghy applications to 3,000kg or more for offshore cruising yachts. The primary considerations when selecting block-and-tackle systems include total purchase ratio, line diameter compatibility with your clutches or cam cleats, and the overall length of the system when fully extended versus fully compressed.
Rigid Vangs (Gas Spring Systems) have transformed boom control for boats in the 25 to 60-foot range by combining downward vang force with upward boom support in a single integrated unit. These systems incorporate a gas-charged strut—typically nitrogen—that supports the boom's weight when the mainsheet is eased, eliminating the need for a topping lift and providing automatic compensation as conditions change. The internal gas spring exerts continuous upward pressure, while an external tackle or internal mechanism allows the crew to apply additional downward force when needed. Construction typically features anodized aluminum or marine-grade stainless steel tubes, with chrome-plated or stainless internal components rated for the marine environment. Rigid vangs excel in cruising applications where convenience and reduced cockpit clutter outweigh the weight penalty compared to pure block-and-tackle systems. They're particularly valuable for short-handed crews who benefit from the boom staying at a consistent height during reefing, sail handling, and maneuvering.
Hydraulic Vangs represent the pinnacle of vang technology for larger yachts and performance-oriented vessels where precise, high-load control justifies the additional complexity and cost. These systems replace mechanical advantage with hydraulic cylinders capable of generating enormous forces with minimal crew effort—a few strokes of a deck-mounted pump can tension a vang that would otherwise require multiple crewmembers grinding a powerful winch. Hydraulic vangs offer infinite adjustability throughout their range, enabling fine-tuned leech tension that mechanical systems struggle to match. Working load limits routinely exceed 5,000kg, with some offshore racing installations capable of handling 10,000kg or more. The trade-offs include higher initial cost, greater maintenance requirements (seals, fluid levels, and pump servicing), and the potential for complete system failure if hydraulic integrity is compromised. For blue-water cruisers and racing programs where performance and ease of handling justify the investment, hydraulic vangs deliver unmatched capability.
Cascading Vang Systems achieve extreme mechanical advantages—24:1, 32:1, or even higher—by combining multiple block-and-tackle arrangements in series. These configurations allow a single crewmember to control loads that would otherwise require winch assistance, making them popular in racing applications where crew weight positioning matters and time spent grinding is time not spent trimming. Cascading systems demand careful attention to line management, as the high purchase ratios mean significant line length must be pulled for relatively small boom movements. They typically incorporate the highest-grade blocks available—think Harken Black Magic or equivalent low-friction designs—along with high-modulus lines that minimize stretch under load. The complexity of cascading arrangements increases maintenance requirements and the potential for fouling, but for the right application, no other mechanical system matches their power-to-weight ratio.
Fixed Length Vangs serve a specialized role on dinghies, day-sailers, and certain one-design classes where rules or simplicity favor non-adjustable solutions. These may consist of robust webbing straps, stainless steel rods, or simple tackle arrangements set to a predetermined length. While they lack the adjustability of more sophisticated systems, fixed vangs provide reliable boom control at minimal cost and weight. Sailors using fixed vangs typically adjust mainsail shape through other controls—cunningham, outhaul, and mainsheet—accepting the vang's limitation in exchange for simplicity.
Boat Size, Displacement, and Load Calculations
The loads your boom vang must handle correlate directly with your boat's size, mainsail area, and the conditions you sail in. Undersizing this component invites structural failure at the worst possible moment—when wind and waves are already testing your vessel and crew. Conservative sizing protects both your rig and your safety.
Boats Under 30 Feet LOA: Vessels in this range typically require vang systems with 4:1 to 6:1 mechanical advantage, using 8-10mm diameter line for comfortable handling. Working load limits should fall between 500kg and 800kg for recreational sailing, though racing boats operating in heavy air may benefit from stepping up to the next category. Block-and-tackle arrangements predominate in this size range, though entry-level rigid vangs serve many cruising applications well.
Boats 30 to 45 Feet LOA: Mid-sized cruisers and racers demand more robust systems, typically featuring 8:1 to 12:1 purchase, 10-12mm line, and working load limits between 1,000kg and 2,000kg. This size range sees the greatest diversity of vang styles, with block-and-tackle, rigid gas spring, and entry-level hydraulic systems all representing viable options depending on intended use. Racing-oriented boats often favor cascading arrangements for their superior mechanical advantage, while cruisers gravitate toward rigid vangs for their convenience and boom support capability.
Boats 45 Feet and Larger: Larger yachts generate boom loads that challenge purely mechanical systems, making rigid vangs and hydraulic units the preferred choices. Purchase ratios of 12:1 or greater, 12-16mm line where applicable, and working load limits starting at 2,500kg and extending well beyond 5,000kg characterize this category. The decision between a premium rigid vang and a hydraulic system often comes down to sailing program—coastal cruisers may find a Harken Vang Master or equivalent perfectly adequate, while ocean racers and superyacht programs typically specify hydraulic control for its precision and power.
Working Load Limit Calculations
Properly calculating your required working load limit involves estimating the maximum downward force your boom will experience and applying appropriate safety factors. The physics involve mainsail area, wind pressure, and the mechanical lever arm from the gooseneck to the vang attachment point.
A reasonable starting estimate for maximum vang load uses the formula: 1.5 × mainsail area (m²) × expected wind pressure (kg/m²) × lever arm ratio. For a typical 40-foot cruiser with 45m² mainsail operating in 25 knots of apparent wind, this might yield maximum loads in the 800-1,200kg range before applying safety factors. Cruising applications should then multiply by a minimum 2:1 margin, while racing boats operating closer to design limits might accept lower margins with more frequent inspection protocols.
Running rigging standards typically call for a 6:1 safety factor between breaking strength and working load for lines and soft components. Blocks and hardware generally carry lower factors (3:1 to 4:1) since their failure modes are more predictable. When in doubt, size up—the weight penalty for a slightly oversized vang pales against the consequences of failure when your boom is loaded in a building squall.
Line Selection and Tackle Configuration
The line running through your block-and-tackle or cascading vang system significantly impacts both performance and longevity. Key considerations include stretch characteristics, diameter compatibility with your blocks and clutches, and resistance to UV degradation and chafe.
Pre-stretched polyester remains the workhorse choice for cruising vangs, offering excellent durability, reasonable cost, and sufficient low-stretch performance for most applications. Premium versions feature multiple braided jackets over parallel cores, minimizing elongation under load while maintaining the hand and splice-ability that sailors appreciate.
Dyneema and similar HMPE lines (high-modulus polyethylene) deliver near-zero stretch at dramatically reduced weight compared to equivalent-strength polyester. These lines have become standard in racing applications and increasingly popular for cruising upgrades where performance justifies the cost premium. The primary considerations when specifying Dyneema for vang service include creep under sustained load (less critical for vangs than for standing rigging) and reduced UV resistance compared to polyester—addressed by keeping lines covered when not in use.
Line diameter must match your vang blocks' sheave grooves for efficient operation and maximum breaking strength. Undersized line can slip or jam; oversized line increases friction and may damage block bearings. Consult manufacturer specifications and err toward the middle of each block's rated range for optimal performance.
Attachment Points and Structural Considerations
The strongest vang system in the world provides no benefit if its attachment points fail. Boom vangs generate substantial loads at both the boom and the mast base or deck attachment, and these connection points must be engineered accordingly.
Boom attachments typically involve tangs, straps, or through-bolted fittings positioned on the boom's underside, ideally at a reinforced section or directly over an internal web. The attachment location affects both the vang's mechanical advantage and the loads on the boom itself—positioning too close to the gooseneck increases the load the vang must generate to control the boom, while positioning too far aft may exceed the boom section's designed load capacity. Consult your boom manufacturer's recommendations for optimal vang attachment positioning and maximum allowable point loads.
Mast base or deck attachments must transfer vang loads into the boat's structure without creating stress concentrations or point loading on unsupported surfaces. On boats with deck-stepped masts, this typically means a dedicated tang on the mast base or a reinforced deck pad eye positioned slightly forward of the mast. Keel-stepped configurations may incorporate vang attachments into the mast partners or nearby structural members. In all cases, backing plates distributing load over a larger area help prevent deck core compression or fiberglass delamination under sustained high loads.
Installation Geometry and Adjustment Range
The angle between your vang and the boom at various boom positions affects both the system's mechanical efficiency and its ability to control sail shape throughout the boom's full range of travel. Ideally, the vang should exert primarily downward force on the boom across the range from close-hauled to a deep reach—angles too shallow waste force pulling the boom forward, while angles too steep may limit the boom's ability to ease out on downwind legs.
When evaluating specific vang systems, consider both the extended length (boom fully out and up) and compressed length (boom centered and pulled down hard). Rigid vangs and hydraulic units publish these specifications clearly; block-and-tackle systems can be configured with longer or shorter pendants to achieve appropriate geometry for your installation. On boats with multiple headstay positions or unusual boom height relative to deck, achieving proper vang geometry may require custom pendant arrangements or non-standard attachment locations.
Brand Overview
Harken
Harken has defined the standard for sailboat hardware innovation since 1967, and their boom vang systems showcase the company's commitment to engineering excellence across every price point and application. From the legendary Vang Master series of rigid gas-spring units to their comprehensive hydraulic vang lineup, Harken products consistently deliver the precision, durability, and performance that serious sailors demand. The company's decades of experience with high-load marine applications—including America's Cup and Volvo Ocean Race programs—directly informs their production hardware, ensuring that the vang system on your cruiser benefits from technology proven at the sport's highest levels.
Harken's hydraulic boom vangs, including the Single Acting series represented in our inventory, feature marine-grade aluminum cylinders, precision-machined pistons, and corrosion-resistant fittings designed for years of reliable service in harsh saltwater environments. The Vang Master rigid units combine a nitrogen gas spring with an external tackle that allows adjustment while under load—a feature cruisers particularly appreciate when tweaking sail shape on long passages. Harken supports their products with comprehensive documentation, readily available service parts, and a global network of authorized service centers.
Best for: Sailors seeking premium quality hardware backed by industry-leading engineering and worldwide support availability.
Sailtec
Sailtec has established itself as a specialist manufacturer of hydraulic sailing systems, focusing exclusively on the design and production of high-performance hydraulic vangs, backstay adjusters, and related components. This concentrated expertise allows Sailtec to optimize every aspect of their vang systems for marine service, from seal compounds selected for saltwater resistance to cylinder materials engineered for the cyclic loading patterns unique to sailing applications. The company's products equip racing programs and blue-water cruisers worldwide, earning a reputation for reliability and performance that keeps pace with Harken while often delivering meaningful cost advantages.
The Sailtec Standard hydraulic vang series offers boat-size-matched solutions ranging from compact units suitable for 30-foot racers to heavy-duty systems capable of controlling the booms on 70-foot offshore yachts. Each size point represents a purpose-designed system—not simply scaled versions of a single base design—allowing Sailtec to optimize weight, stroke, and load capacity for specific application ranges. The company's European manufacturing heritage shows in meticulous attention to finish quality and assembly precision, details that contribute to long service life and minimal maintenance requirements.
Best for: Performance-focused sailors seeking hydraulic vang capabilities at competitive price points without sacrificing quality or reliability.
Frequently Asked Questions
What's the functional difference between a single-acting and double-acting hydraulic boom vang?
A single-acting hydraulic vang uses hydraulic pressure in only one direction—typically to extend the cylinder and apply downward force to the boom—while relying on an internal spring, gas charge, or gravity to retract when pressure is released. This simpler design reduces cost, decreases maintenance points, and suits the vast majority of sailing applications where controlled release of vang tension doesn't require the same precision as application. Double-acting vangs use hydraulic pressure for both extension and retraction, offering precise control in both directions. This proves valuable on boats where the vang must pull the boom down against significant uplift forces (large overlapping headsails, certain ketch or schooner rigs) or where the installation geometry means gravity alone won't consistently retract the cylinder. For most monohull applications in the 30 to 70-foot range, single-acting designs like the Harken Single Acting series provide all necessary functionality at lower cost and complexity.
How do I determine the correct hydraulic vang size for my boat?
Start with your boat's LOA and displacement as initial indicators—manufacturer sizing guides provide recommended ranges that account for typical mainsail areas and boom weights at each size point. However, several factors may push you up or down from the default recommendation. Racing programs regularly operating in heavy air should size up for margin; light-displacement boats with relatively small mainsails may size down; boats with unusually long booms, high-aspect mainsails, or frequent offshore use benefit from conservative (larger) sizing. The hydraulic cylinder's stroke must also accommodate your boom's full range of vertical travel from hardsheet to running deep—measure from your vang attachment points with the boom at minimum and maximum positions, then add 10-15% margin. When comparing systems at a given size point, pay attention to both force output (expressed in kg or lbs) and stroke length (expressed in mm or inches). Our rigging team can review your specific installation and recommend appropriate sizing based on your boat's documentation.
Can I convert my existing block-and-tackle vang to a rigid or hydraulic system?
Yes, upgrading from block-and-tackle to rigid or hydraulic vang systems is a common and worthwhile improvement that most boats can accommodate with appropriate planning. The critical considerations include: verifying that your boom and mast base (or deck) attachment points can handle the concentrated loads a rigid or hydraulic unit will apply—these systems lack the load-distributing properties of multiple blocks spread along a tackle; ensuring adequate vertical clearance for the new unit at all boom positions; and routing any hydraulic lines to a convenient pump location without creating tripping hazards or interference with other cockpit functions. Some installations require new attachment tangs or backing plate reinforcement; others bolt directly to existing hardware. We stock adapter fittings and provide detailed installation guidance for popular retrofit scenarios. Submit photos of your current vang setup and boom/mast base fittings, and our rigging specialists can assess your conversion options.
What maintenance does a hydraulic boom vang require, and what's the typical service interval?
Hydraulic boom vangs require less routine attention than many sailors assume, though they're not maintenance-free. The primary service items include: checking hydraulic fluid level annually and topping up as needed (most units use standard mineral-based hydraulic oil); inspecting all fittings, hose connections, and the pump mechanism for leaks or corrosion; and exercising the system through its full range of motion several times per season to keep seals lubricated and pliable. The cylinder rod should be wiped clean periodically to prevent salt crystal accumulation that can score seals. Complete seal replacement typically becomes necessary every 8-12 years depending on usage intensity and environmental exposure—harsh UV and salt spray environments accelerate seal degradation. Both Harken and Sailtec offer seal kits for owner-level rebuild of most components; alternatively, complete cylinder assemblies can be factory rebuilt. Many owners perform routine fluid checks themselves while scheduling professional seal service at appropriate intervals. The investment in periodic maintenance pays dividends in reliable operation and extended service life.
How does a rigid gas-spring vang affect my topping lift requirements?
One of the primary advantages of rigid gas-spring vangs like the Harken Vang Master series is their ability to support the boom's weight, potentially eliminating the need for a traditional topping lift. The internal gas charge exerts continuous upward force calibrated to approximately match your boom's weight, keeping the boom at a consistent height when the mainsheet is eased—during reefing, sail removal, or at anchor. This removes a line from your mast and rigging, reduces windage and weight aloft, and eliminates the topping lift's tendency to chafe the leech of your mainsail or interfere with the roach in light air.
However, some sailors retain a topping lift even after installing a rigid vang as a backup system and to provide additional boom support when the main is completely lowered and the vang disconnected. The decision depends partly on your sailing program—coastal day-sailors with readily available assistance might forgo the backup, while offshore cruisers often prefer redundancy. If you do eliminate the topping lift, ensure your rigid vang has adequate gas charge for your boom's actual weight (including any gear mounted on the boom), and consider the implications for boom position if the vang's gas charge eventually weakens and requires recharging.
What's the maximum mechanical advantage practical for a cascading vang system, and when does hydraulic make more sense?
Cascading vang systems can theoretically achieve very high mechanical advantages—32:1, 48:1, or even higher—by combining multiple tackle arrangements in series. However, practical limits emerge well before theoretical maximums. Each additional block adds friction, reducing the actual mechanical advantage below the calculated value; high purchase ratios require pulling enormous lengths of line for modest boom movement, creating handling challenges; and the complexity of multiple tackle stages increases the potential for fouling, tangles, and maintenance issues.
Most practical cascading vangs top out around 24:1 to 32:1 purchase, which remains achievable with high-quality blocks and proper line selection while keeping total system length and line-pull requirements manageable. Beyond this range, hydraulic vangs typically offer superior solutions—the hydraulic cylinder converts pump strokes directly to boom force without the friction losses and line-handling complications inherent in extreme-ratio mechanical systems. The transition point depends on budget, weight considerations (hydraulics add more weight than equivalent-capability cascading systems), and maintenance preferences. Racing programs often push cascading systems to their practical limits to minimize weight; cruising sailors increasingly choose hydraulics for their convenience and reduced deck clutter despite the weight penalty.
