Mantus Anchor Swivel S2 - 5/16, 3/8 and 7/16 in (8.0, 10.0 and 11.0 mm) Chain
MAT-US2
$131.00 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø1/4'' (Ø6 Mm) Rope, Nylon Pa, White
NVR-44596
$0.63 USDUnit price /Unavailable -

Mantus Anchor Swivel S1 - 1/4 and 5/16 in (6.0 and 8.0 mm) Chain
MAT-US1
$104.00 USDUnit price /Unavailable -

Lewmar Anchor Swivel Fixed - 1/4 and 5/16 in (6.0 and 8.0 mm) Chain
LEWSWIVEL312F
$64.21 USDUnit price /Unavailable -

Mantus Anchor Swivel S3 - 3/8, 1/2, and 7/16 in (10.0, 12.0 and 11.0 mm) Chain
MAT-US3
$248.00 USDUnit price /Unavailable -
Nuova Rade

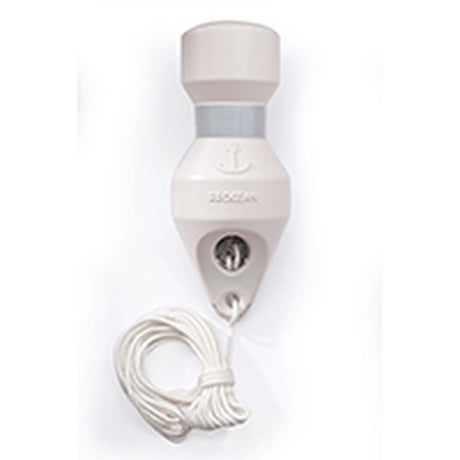

Nuova Rade Anchor Marking Buoy With Retroreflective Tape & Line 36' (11 M)
NVR-197765
$115.00 USDUnit price /Unavailable -

Lewmar Anchor Swivel Fixed - 3/8, 1/2, and 7/16 in (10.0, 12.0 and 11.0 mm) Chain
LEWSWIVEL500F
$116.00 USDList Price: $170.95 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø3/4'' (Ø18 Mm) Rope, Nylon Pa, White
NVR-44607
$1.49 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø7/8'' (Ø22 Mm) Rope, Nylon Pa, White
NVR-44611
$2.34 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø3/8'' (Ø10 Mm) Rope, Nylon Pa, White
NVR-44600
$0.72 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø3/16'' (Ø5 Mm) Rope, Nylon Pa, White
NVR-44594
$0.60 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Snap Hook W/Eye Ø35/64 X 2-43/64''(14X68Mm), F/Ø25/64''(10Mm) Cord, Polyam. Black
NVR-44047
$1.00 USDUnit price /Unavailable -
Nuova Rade

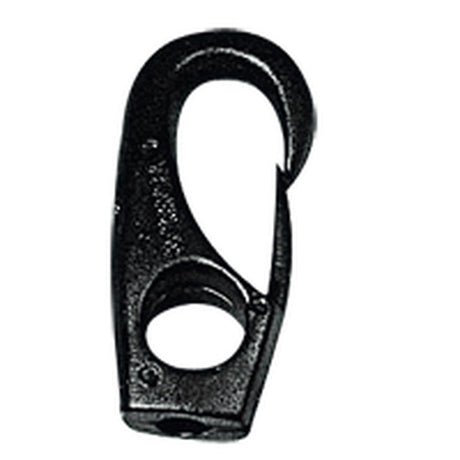

Nuova Rade Snap Hook W/Eye 1/2'' X 2 1/4'' (Ø12 X 58 Mm), F/ 5/16'' (Ø8 Mm) Cord, Polyam. Black
NVR-44041
$0.65 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø18/64'' (7Mm) Rope, Nylon Pa, White
NVR-24134
$0.63 USDUnit price /Unavailable -

Quick Anchor Swivel SW10 - 3/8 in (10.0 mm) Chain (Jaw Jaw Swivel)
QCK-MSVGGGX10000
$26.76 USDUnit price /Unavailable -

Quick Anchor Swivel SH10 - 3/8 in (10.0 mm) Chain (Bullet Swivel)
QCK-MMGGX10120000
$25.14 USDUnit price /Unavailable -

Maxwell Anchor Swivel 316 - 1/4 and 5/16 in (6.0 and 8.0 mm) Chain
MAXP104370
$110.95 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø25/32'' (Ø20 Mm) Rope, Nylon Pa, White
NVR-44609
$1.87 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø5/8''(16Mm) Rope, Nylon Pa, White
NVR-44605
$0.89 USDUnit price /Unavailable -
Nuova Rade
Nuova Rade Thimble For Ø1/2'' (Ø12 Mm) Rope, Nylon Pa, White
NVR-44602
$0.76 USDUnit price /Unavailable
Anchor Swivels, Shackles and Accessories: Matching the Connectors to Your Chain
The swivel and shackle between the anchor and the chain are the links the rest of the ground tackle depends on. A swivel keeps the rode from twisting as the anchor sets and is hauled; a shackle or integrated shackle joins it to the anchor; and a few small accessories (safety strap, marker, hanger, thimble) finish the job. Quick, one of the makers in this collection, puts it plainly: a swivel or shackle between the anchor and the rode is needed for the anchor to enter the bow roller properly and for the rode to be retrieved without twisting. This collection covers swivels for 1/4 to 1/2 in chain from Mantus, Lewmar, Maxwell, Quick and Sea-Dog, anchor shackles, and the accessories around them.
What Is in This Collection
- Mantus anchor swivels S1, S2 and S3: S1 for 1/4 and 5/16 in (6 and 8 mm) chain, S2 for 5/16, 3/8 and 7/16 in (8, 10 and 11 mm), S3 for 3/8, 7/16 and 1/2 in. Mantus makes them from 316 L stainless steel with a duplex stainless pin, with an integrated shackle design that removes side loading and a slim hex head with safety-wire holes that passes a bow roller. Mantus says they are designed to be stronger than the matching Grade 40 chain. See the S1, S2 and S3.
- Lewmar fixed anchor swivels: 316 stainless steel in two sizes, 1/4 and 5/16 in (6 and 8 mm) chain (SWIVEL312F) and 3/8, 7/16 and 1/2 in (10, 11 and 12 mm) chain (SWIVEL500F).
- Maxwell anchor swivel 316: for 1/4 and 5/16 in (6 and 8 mm) chain, with captured pins and a profile that passes over bow rollers. Maxwell recommends it with its automatic rope/chain windlasses and for boats up to 20 m (65 ft), and advises joining the rode to the anchor with it rather than fitting it straight onto the anchor — see the Maxwell swivel.
- Quick bullet and jaw-jaw swivels: the SH10 bullet swivel and the SW10 jaw-jaw swivel for 3/8 in (10 mm) chain, both stainless steel with 360-degree rotation.
- Sea-Dog stainless anchor swivel: for 1/4 to 5/16 in chain — the Sea-Dog swivel.
- Anchor shackles: Mantus anchor-type stainless shackles in 316 drop-forged stainless, such as the 7/16 in (11 mm) and 1/2 in (12 mm), and the Sea-Dog 7/8 in bow shackle, 316 cast stainless with a 1 in opening and a screw pin.
- Anchor safety straps: Lewmar wire straps in 1/8 in (3 mm) and 3/16 in (4 mm) wire that clip onto the chain, shackle or anchor to prevent accidental deployment. Lewmar notes the windlass is not meant to hold the anchor when the boat is not in use.
- Stowing the anchor: the Mantus stern bracket, a universal 316 L stainless bracket with adjustable rollers that holds an emergency anchor of any design on the pushpit or at the bow, and the Schaefer pulpit anchor hanger for Danforth-style anchors of 8 to 22 lb, with 1/2 to 3/4 in stock diameter, clamping to 1 in tubing.
- Thimbles and snap hooks (Nuova Rade): white nylon PA thimbles for rope eyes in 4, 5, 6, 7, 10, 12, 14, 16, 18, 20 and 22 mm (for example the 10 mm thimble), and polyamide snap hooks with an eye for 4, 8 and 10 mm cord (for example the 8 mm snap hook).
- Marking the anchor and the rode: the Nuova Rade anchor marking buoy with retroreflective tape and 11 m (36 ft) of line, and the Lalizas rode marker, marked in feet for 3/8 to 5/8 in (10 to 16 mm) rope.
Choosing the Right Swivel and Shackle
- Match the chain. Read the chain range in the product title, not just the model name, and check it against your chain's actual size. Our chain sizing guide shows how to measure it.
- Look for a swivel that passes your bow roller. Mantus and Maxwell both describe their swivels as passing a bow roller cleanly. Quick offers two shapes: a bullet swivel (SH10) and a jaw-jaw swivel (SW10) with a jaw at each end.
- Rate every connector to the rode. Our ground tackle guide says to rate connecting shackles and swivels to the working load of the rode, secure them against unwinding, and inspect them as a set.
- Keep the polyamide hooks for light work. The Nuova Rade snap hooks are listed for cord, fenders and mooring lines; the swivel and shackle on the anchor should be one of the stainless parts above.
Who It's For
Cruisers refitting their ground tackle, owners replacing a worn swivel or shackle, and anyone adding a safety strap, rode marker or emergency-anchor bracket. Match the chain and rode first: browse anchor and mooring chain and anchor rodes, or the Mantus anchors.
Frequently Asked Questions
Do I need an anchor swivel?
A swivel between the anchor and the rode lets the anchor turn without twisting the chain, and Quick states one is necessary for the anchor to enter the bow roller properly and for the rode to be retrieved without twisting. Choose one rated for your chain and check that it fits your roller.
How do I choose the right size swivel for my chain?
Match the swivel's listed chain range to your chain size: for example 1/4 and 5/16 in for the Mantus S1, Lewmar SWIVEL312F and Maxwell swivel, 5/16 to 7/16 in for the Mantus S2, and 3/8 in for the Quick SH10 and SW10. See our chain sizing guide to measure your chain.
What is the difference between an anchor swivel and an anchor shackle?
A shackle joins two links with a pin and does not rotate; a swivel rotates to keep the rode from twisting. Mantus builds the shackle into the swivel (an integrated shackle design) so there is no side loading. You can also use a separate stainless anchor shackle, such as the Mantus anchor-type or the Sea-Dog bow shackle.
What size thimble do I need for my anchor rope?
Choose the thimble for the rope's diameter: the Nuova Rade nylon thimbles here cover 4 to 22 mm rope. It protects the eye splice from chafe at the shackle. For choosing the rode itself, read How to Choose Anchor Rodes.
How do I stop my anchor from deploying by accident?
Clip a safety strap, such as the Lewmar 1/8 in or 3/16 in wire strap, onto the chain, shackle or anchor. Lewmar notes the windlass is not meant to hold the anchor in place when the boat is not in use.
