Cleats, Bollards and Chocks: Choosing Mooring Hardware for Your Lines
A cleat, a bollard or a chock is where a dock line meets the boat or the dock. The cleat holds the line, the bollard takes a loop or a turn of a heavier line, and the chock guides the line over the rail so it does not chafe. This collection brings together stainless deck cleats and welded or bolted bollards from Vetus, chrome-plated open-base cleats and chocks from Perko, galvanized dock cleats from Whitecap, a polyamide cleat from Nuova Rade and Sea-Dog bow and stern eyes. The right piece depends on the line size, the load and how it is fastened to the boat.
Cleat and Bollard Families in This Collection

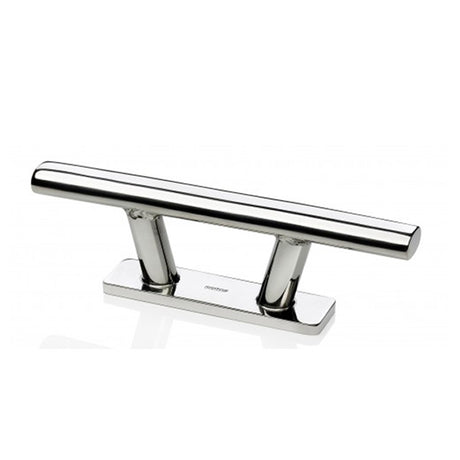

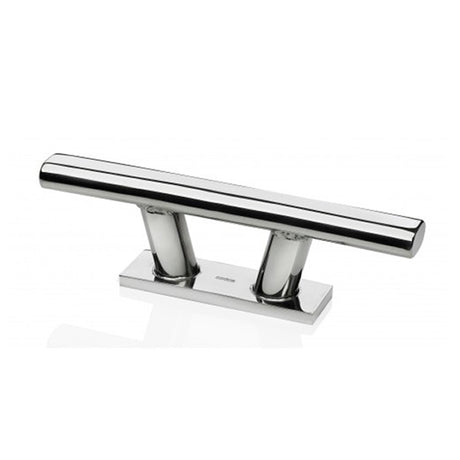

- Vetus TAURUS stainless cleats: high-gloss polished AISI 316 stainless steel in six lengths — TAURUS 1 (140 mm), TAURUS 2 (195 mm), TAURUS 3 (254 mm), and TAURUS 4, TAURUS 5 and TAURUS 6 (300 mm). Vetus tapped the underside of TAURUS 1 to 5 so no fastenings show on top; TAURUS 6 is not tapped.
- Vetus ACHILLES bollards: polished AISI 316 stainless in six sizes (80, 90, 110, 130, 150 and 160), with a Z version (welding bollard) of each, plus the ACHILLES 90 with bolt mounting. The number is the size in mm. The catalog lists safe working loads of 620 kgf for the 80 and 90 (ACHILLES 80, 90), 1150 kgf for the 110 and 130 (110, 130), 1800 kgf for the 150 (ACHILLES 150) and 2620 kgf for the 160 (ACHILLES 160). Vetus's own page confirms 1150 kgf for the ACHILLES 130Z welding bollard, for example the 130Z.
- Perko chrome-plated zinc open-base cleats: 4 in (1188DP4, listed for lines up to 5/16 in), 6 in (1188DP6, up to 1/2 in), 6 1/2 in (1252DP0, up to 3/4 in) and 8 in (1188DP8, up to 5/8 in). Perko lists the open base as allowing easy installation and removal.
- Whitecap galvanized dock cleats: 6 in (S-1520P), 8 in (S-1521) and 10 in (S-1522P), fastened with hex-head bolts of 5/16, 3/8 and 1/2 in respectively.
- Nuova Rade polyamide cleat: the 3 x 1 in (60 x 19 mm) black cleat with two pre-drilled mounting holes, described for smaller boats and for securing dock lines, fenders or other ropes.

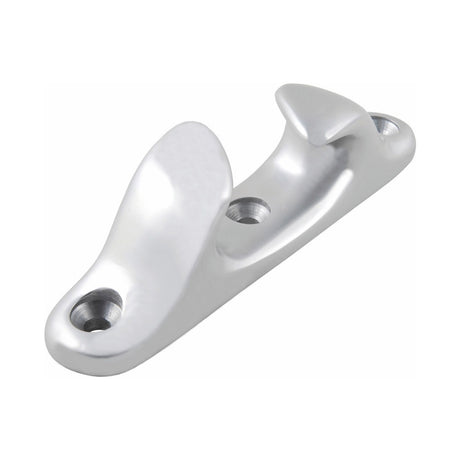

- Perko chocks: the Straight Chock (4 in, for lines up to 3/4 in) and the Skene Bow Chock (3 1/2 in, port and starboard pair, for lines up to 1/2 in), both chrome-plated zinc alloy and sold as pairs.
- Sea-Dog bow and stern eyes: machined stainless eyes in 3/8 in (3/8 in, 3/8 x 3-1/2 in, 3/8 x 4-1/4 in), 7/16 x 3-1/2 in and 1/2 in bow eyes, plus a 3/8 x 3-1/2 in stern eye. Sea-Dog describes them as mounting points for winching, towing and anchor or mooring lines, not as cleats; read each product page for its intended use.
Cleat, Bollard or Chock: Which Piece Does Which Job
- Cleat: the standard hold for a dock line, with a turn and a locking hitch. Choose a cleat long enough for the turns and the line size you use.
- Bollard: a post for loops or turns of a heavier line. The Vetus ACHILLES range is listed by safe working load, so you can match it to the boat.
- Chock: a fairlead for the line to run through without chafing on the rail. Match the chock to the line size (3/4 in or 1/2 in for the Perko models here).
- Bow or stern eye: a fixed attachment point rather than a cleating point.
- Cam cleats and clutches: for sheets and halyards, see the cam cleats collection; the cleats on this page are for mooring and dock lines.
Sizing, Material and Fastening
- Line size: use the largest line your cleat is listed for as your upper limit. Perko lists a maximum rope size for each cleat and chock; for Whitecap and Vetus, size the cleat by length and the fastener size.
- Load: the Vetus ACHILLES bollards list a safe working load per size (620 to 2620 kgf in this collection); check the figure for your boat before you buy.
- Material: Vetus uses AISI 316 stainless steel, Perko chrome-plated zinc alloy, Whitecap galvanized steel and Nuova Rade polyamide. Choose the one that matches the surface it is fixed to and where it is mounted — deck or dock.
- Fastening: Vetus advises a topping and backing plate when retrofitting cleats, because spreading the load above and below the deck is the point of the plate. The ACHILLES Z versions are welding bollards; the ACHILLES 90B is bolt mounted. Check each product page before drilling or welding.
Who It's For
Owners fitting or replacing mooring cleats and bollards, boat builders and refit yards specifying hardware by size and safe working load, and marina or dock owners looking for galvanized dock cleats. To finish the mooring setup, browse dock lines.
Frequently Asked Questions
What is the difference between a cleat and a bollard?
A cleat has two horns and holds a line with a turn and a hitch. A bollard is a post that takes a loop or turns of a line. In this collection the Vetus TAURUS models are cleats and the ACHILLES models are bollards.
How do I choose the right size cleat for my dock lines?
Check the maximum line size listed for the cleat, and make sure the cleat is long enough for the turns you take. Perko lists maximum rope size for each model (5/16 in on the 4 in cleat to 3/4 in on the 6 1/2 in cleat). Whitecap cleats are sized by length (6, 8 or 10 in) and bolt (5/16, 3/8 or 1/2 in).
What is the safe working load of a Vetus ACHILLES bollard?
The catalog lists 620 kgf for the ACHILLES 80 and 90, 1150 kgf for the 110 and 130, 1800 kgf for the 150 and 2620 kgf for the 160. Vetus's own page states 1150 kgf for the ACHILLES 130Z welding bollard.
Do I need a backing plate for a deck cleat?
Vetus advises fitting topping and backing plates when you retrofit a cleat, so the load is spread above and below the deck. The right shape depends on the deck and the space available.
Is a bow eye a replacement for a cleat?
No. A bow or stern eye is an attachment point for lines or fittings, while a cleat holds the line. Sea-Dog describes its bow eyes for winching, towing and anchoring uses; read the product page for the intended use of the model you choose.
