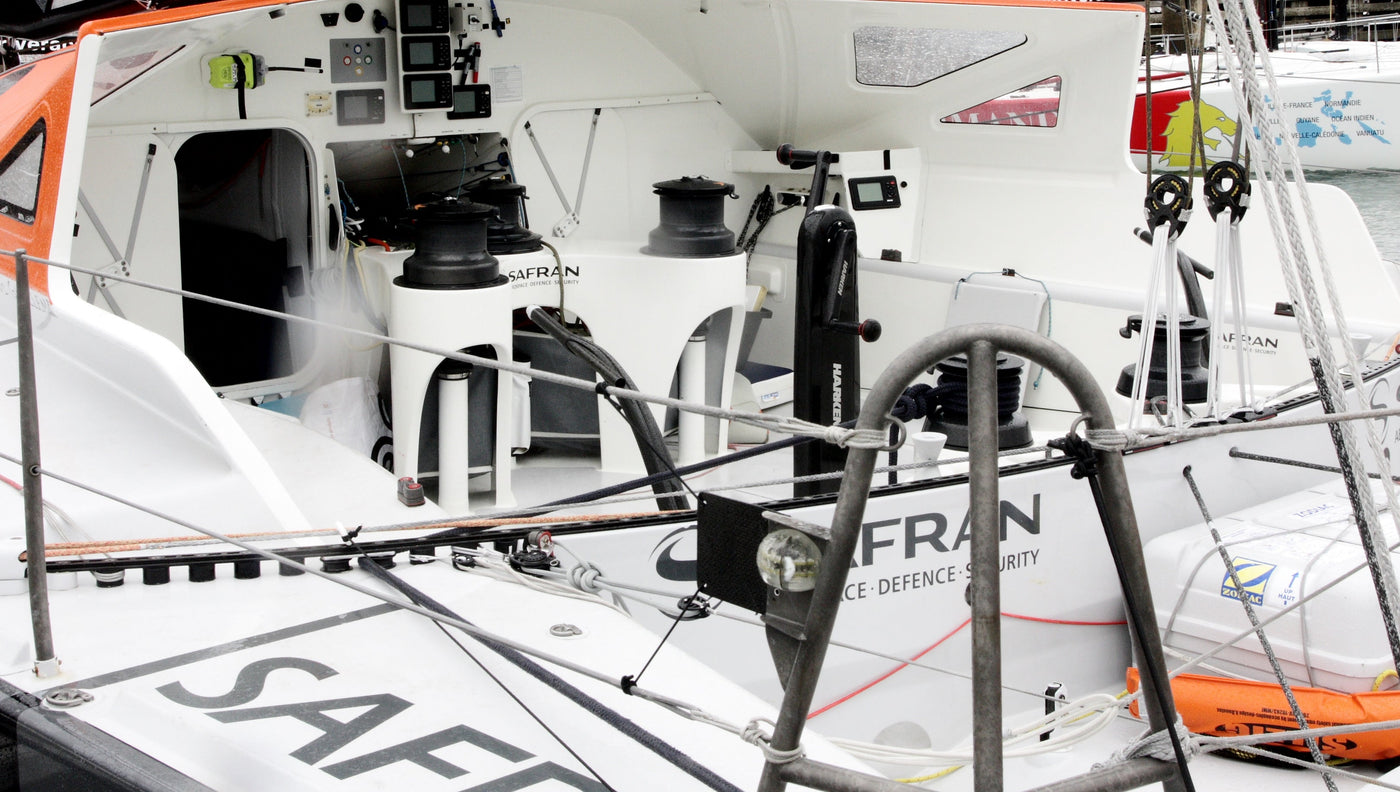

Precision Control at the Helm: Understanding Steering Systems & Foils for Sailboats
The steering system represents the primary interface between helmsman and vessel, translating human input into precise directional control through a complex chain of mechanical, hydraulic, or electronic components. Whether you're racing a J/24 around the buoys, cruising coastal waters on a Tartan 10, or preparing for offshore passages, the quality and appropriateness of your steering components directly impact safety, performance, and sailing enjoyment. At MAURIPRO, we stock steering solutions from leading manufacturers including Rudder Craft, Simrad, and Raymarine—brands that have earned their reputations through decades of proven performance in demanding marine environments.
Steering systems for sailboats fall into several interconnected categories: the helm input device (wheel or tiller), the transmission system (cables, quadrants, hydraulic lines, or direct linkage), the rudder assembly itself, and increasingly for performance-oriented sailors, hydrofoil systems that lift the hull to reduce drag and increase speed. Each component must be correctly sized for your vessel's displacement, LOA, and intended use. A mismatch at any point in the system—an undersized quadrant, worn cables, or an inappropriately balanced rudder—can create dangerous handling characteristics, excessive weather helm, or complete loss of steering when you need it most.
Beyond the primary steering system, modern sailors often integrate autopilot technology to reduce helmsman fatigue on long passages. Tillerpilots from manufacturers like Simrad and Raymarine connect directly to the tiller, providing push-pull actuation that maintains course or responds to wind angle inputs. These systems require proper rudder feedback units and careful installation to deliver reliable performance. For vessels with wheel steering, below-deck autopilot drives connect to the quadrant or rudder stock directly, but many smaller cruisers and racing boats retain tiller steering specifically for its simplicity, direct feedback, and compatibility with compact autopilot solutions.
How to Choose the Right Sailboat Steering
Selecting appropriate steering components requires careful consideration of your vessel's specifications, your sailing style, and the conditions you'll encounter. An undersized system invites premature wear and potential failure; an oversized system adds unnecessary weight and expense. The following criteria will guide you toward the optimal configuration for your boat.
Boat Length Overall (LOA) and Displacement
Your vessel's size fundamentally determines steering system requirements. Boats under 30 feet LOA typically employ tiller steering, which offers direct rudder feel, mechanical simplicity, and weight savings that matter on smaller platforms. The direct connection between hand and rudder post provides immediate feedback about water flow over the foils, helping you feel changes in boat speed, heel angle, and weather helm. Rudder Craft manufactures boat-specific tillers for dozens of popular classes, with lengths calibrated to each design's cockpit geometry and rudder characteristics.
Vessels between 30 and 50 feet generally transition to wheel steering, which provides mechanical advantage necessary to overcome higher rudder loads. Displacement increases roughly with the cube of length, meaning a 40-footer may displace four to five times what a 25-footer does. The rudder area must scale accordingly, and the forces required to deflect that larger foil through the water exceed what most sailors can comfortably manage with a tiller over extended periods. Wheel diameters typically range from 600mm to 1200mm for this size range, with larger wheels providing greater mechanical advantage and finer control resolution.
Above 50 feet LOA, dual rudder configurations become increasingly common, particularly on performance cruisers and racing yachts. Twin rudders positioned outboard remain immersed and effective at higher heel angles where a single centerline rudder might ventilate. These installations typically require hydraulic steering systems capable of simultaneously actuating both rudder stocks while providing the power assist necessary for comfort and control. High-strength materials—carbon fiber rudder stocks, titanium pintles, aerospace-grade bearings—become standard at this level to handle the enormous loads involved.
Rudder Configuration and Foil Design
The rudder itself is the actual control surface, and its design significantly impacts handling characteristics. Spade rudders, fully cantilevered from the stock without bottom support, offer high lift-to-drag ratios and responsive handling. Their vulnerability to damage from grounding makes them more common on racing boats and coastal cruisers than blue-water voyagers. Skeg-hung rudders gain protection and bearing support from the skeg, accepting some efficiency loss in exchange for robustness. Transom-hung rudders, while less hydrodynamically efficient, provide the simplest installation and easiest inspection—advantages that make them preferred choices for many small cruisers and traditional designs.
Rudder balance—the percentage of foil area forward of the stock axis—determines handling feel and required steering force. A balanced rudder with 15-20% of its area ahead of the stock axis reduces helm loads significantly but requires more precise engineering to avoid dangerous oscillation or loss of control. Unbalanced rudders demand more steering effort but provide inherently stable handling characteristics. Most production boats split the difference with semi-balanced designs, but replacement rudder systems should match the original balance percentage unless you're prepared to retune the entire sailing system.
Working Load Limits and Safety Factors
Every component in the steering chain must be rated for the loads it will experience, with appropriate safety margins for the unexpected. Steering cables, quadrants, and linkages carry manufacturer-specified Working Load Limits (WLL) that should exceed your calculated maximum rudder load by a factor of at least 3:1 for cruising applications and 4:1 for offshore work. Rudder load estimation involves complex hydrodynamic calculations, but rough guidance suggests maximum force in kilograms equals approximately 0.5 times waterline length in meters squared times boat speed in knots squared. A 35-foot waterline boat at 8 knots might generate peak rudder forces approaching 400 kg—loads that translate through the entire system.
Quadrant sizing must match the rudder stock diameter precisely while providing sufficient radius for the required cable sweep. Bronze quadrants offer excellent corrosion resistance and bearing characteristics; aluminum quadrants save weight but require more careful attention to dissimilar metal corrosion where they contact the stock. Cable construction—whether 7x7, 7x19, or compacted strand—affects flexibility, strength, and service life. Higher strand counts bend more easily around sheaves and quadrants, reducing fatigue stress at these critical transition points.
Tiller Design and Material Selection
For boats employing tiller steering, the tiller itself deserves careful consideration beyond simply matching your boat model. Laminated wood tillers from Rudder Craft combine traditional aesthetics with engineered strength, using multiple wood species oriented to maximize stiffness along the primary loading axis while providing some flexibility to absorb shock loads. A rigid tiller transmits every wave impact directly to your arm; a properly designed laminated tiller dampens these shocks while maintaining precise control response.
Tiller length affects mechanical advantage and cockpit ergonomics. Longer tillers reduce steering effort but may interfere with mainsheet handling and crew movement. The ideal length allows comfortable single-handed steering from the windward rail while providing sufficient throw for emergency maneuvers. Rudder Craft's boat-specific designs account for each class's cockpit layout, rudder characteristics, and typical sailing positions—a J/22 tiller differs meaningfully from a J/24 tiller despite the boats' similar sizes.
Extension compatibility matters for racing applications where hiking or trapezing moves the helmsman well outboard. Universal joints at the tiller head should accept standard extension diameters while providing smooth rotation without excessive play. Some tillers integrate extension mounts; others require separate hardware. Confirm compatibility before purchasing, and consider a dedicated racing tiller if your primary tiller's extension arrangement compromises everyday sailing utility.
Autopilot Integration and Tillerpilot Selection
Autopilots dramatically reduce helmsman fatigue on passages, freeing crew for navigation, sail trim, and watch rotation. Tillerpilots connect directly to tiller-steered boats, using electric linear actuators to apply steering corrections. These compact units can steer to compass heading, apparent wind angle, or GPS course depending on connected instrumentation. Selection criteria include maximum thrust (measured in pounds or kilograms), rudder feedback requirements, and integration with your existing electronics.
Tillerpilot thrust ratings must exceed your boat's steering loads across the anticipated operating envelope. Manufacturer specifications typically indicate suitable displacement and LOA ranges—these guidelines reflect extensive sea trials and should be respected. An underpowered tillerpilot will struggle in heavy conditions, consume excessive power as it labors against steering loads, and ultimately fail to maintain course. The Simrad TP32 and TP22 models represent the higher and mid-power segments respectively, with the TP32 suited for heavier displacement vessels and rougher conditions.
Rudder feedback units like the Simrad RF45X allow the autopilot processor to monitor actual rudder position, enabling precise closed-loop control. Without feedback, the autopilot must estimate rudder position from actuator movement, leading to less accurate steering and slower response to changing conditions. Feedback installation adds complexity but significantly improves autopilot performance—particularly important when integrated with chartplotters for automated route following.
Emergency Steering Requirements
Every offshore-capable vessel requires a functional emergency steering system independent of the primary helm. Complete steering loss—whether from cable failure, quadrant breakage, hydraulic rupture, or autopilot malfunction—can occur suddenly and without warning. Emergency steering provisions range from simple emergency tillers that fit the rudder stock directly to sophisticated backup hydraulic systems with manual pumps.
For wheel-steered boats, the minimum provision is an emergency tiller that can be deployed without tools and provides sufficient leverage to maintain steering in moderate conditions. The tiller must stow accessibly (not buried under cockpit contents), and all crew should practice deploying and steering with it before relying on it in an emergency. Some installations require removing the wheel hub or binnacle cap to access the stock; others provide a dedicated emergency tiller port. Test your emergency system annually and after any steering maintenance.
Material Selection for Marine Environments
Marine environments aggressively attack most materials through saltwater corrosion, UV degradation, and constant cyclic loading. Steering components must be manufactured from materials specifically suited to these challenges. Stainless steel hardware should be 316L grade minimum, with 2205 duplex alloys preferred for highly stressed applications. Bronze and Nibral (nickel-bronze-aluminum) alloys offer excellent corrosion resistance for quadrants and underwater fittings. Carbon fiber and advanced composites provide exceptional strength-to-weight ratios for tillers, rudder stocks, and foils but require careful inspection for delamination and impact damage.
Wood construction remains viable for tillers where traditional aesthetics matter, but only when using marine-grade adhesives, appropriate species selection, and proper sealing. Rudder Craft's laminated tillers use carefully selected woods bonded with waterproof resins, delivered ready for customer varnishing to ensure optimal protection. Annual refinishing maintains the moisture barrier that prevents swelling, cracking, and eventual structural degradation. Teak, ash, and mahogany laminates predominate, each offering specific advantages in stiffness, weight, and appearance.
Brand Overview
Rudder Craft
Rudder Craft has established itself as North America's premier manufacturer of boat-specific wooden tillers, producing laminated replacement tillers for over 200 popular sailboat models. Each design reflects careful study of the original equipment dimensions, mounting geometry, and ergonomic requirements specific to that class. The company's laminating process orients wood grain to maximize strength along primary loading axes while maintaining the slight flexibility that improves sailing comfort. Tillers ship ready for customer varnishing, allowing sailors to apply their preferred finish system and ensure proper sealing before installation.
The manufacturing process uses marine-grade adhesives throughout, creating a structurally superior assembly compared to solid wood construction. Rudder Craft maintains detailed specifications for each boat model, ensuring replacement tillers match factory geometry precisely—critical for boats where tiller length affects hiking position, mainsheet handling, or autopilot mounting. Custom lengths and configurations are available for boats not in the standard catalog. Best for: One-design racers, classic boat owners, and sailors who value traditional wooden helm aesthetics combined with modern laminated construction.
Simrad
Simrad, a Navico brand, produces professional-grade marine electronics including tillerpilots and autopilot components trusted by serious cruisers and offshore racers worldwide. The TP22 and TP32 tillerpilots represent successive thrust classes engineered for increasingly demanding applications—the TP22 serves smaller displacement cruisers in moderate conditions, while the TP32 handles heavier boats and rougher weather. Both units integrate with Simrad's extensive electronics ecosystem, accepting inputs from GPS, wind instruments, and heading sensors for sophisticated steering modes.
The RF45X Rugged Rudder Feedback Unit exemplifies Simrad's attention to real-world marine requirements, providing precise rudder angle data even in the harsh environment aft of the rudder stock. Sealed construction, corrosion-resistant materials, and simple mechanical installation characterize this critical autopilot component. Simrad tillerpilots feature waterproof housings, intuitive controls accessible while hiking or trimming, and power-efficient electronics that minimize battery drain during extended passages. Best for: Cruising sailors seeking reliable autopilot integration with premium navigation electronics, particularly those already invested in the Simrad/Navico ecosystem.
Raymarine
Raymarine tillerpilots have guided countless cruising sailboats through decades of coastal and offshore passages, earning their reputation through reliable performance and straightforward operation. The ST1000 Plus and ST2000 Plus represent successive power levels—the ST1000 Plus suits lighter boats up to approximately 4.5 tons displacement, while the ST2000 Plus handles vessels to 6.5 tons. Both units provide simple compass-course steering out of the box, with wind vane steering available when connected to compatible Raymarine wind instrumentation.
Installation simplicity has long distinguished Raymarine tillerpilots from more complex alternatives. A single below-deck mounting bracket, minimal wiring, and clear calibration procedures allow most sailors to complete installation without professional assistance. The integrated compass eliminates external heading sensor requirements for basic operation, though external heading input improves performance when available. Raymarine's SeaTalk networking connects tillerpilots with chartplotters, displays, and instruments for automated route following and advanced steering modes. Best for: Cruising sailors prioritizing installation simplicity and proven reliability, especially those upgrading from manual steering on boats in the 25-40 foot range.
Frequently Asked Questions
How do I determine the correct tiller length for my boat?
Optimal tiller length balances mechanical advantage against cockpit interference and ergonomic reach. The tiller should extend far enough that you can steer comfortably while sitting on the windward rail in normal sailing positions, yet not so far that it blocks mainsheet handling or crew movement. Rudder Craft tillers are designed to match original equipment specifications for each boat model, accounting for class-specific cockpit geometry and rudder characteristics. If you're uncertain about correct length, measure your existing tiller from the rudder post centerline to the end of the grip, or consult your boat's class association specifications. Racing applications may benefit from slightly shorter tillers with longer extensions, while cruising setups often favor longer tillers without extensions for simpler, more direct control.
What thrust rating tillerpilot do I need for my sailboat?
Tillerpilot thrust requirements depend on displacement, rudder area, and anticipated sea conditions. Manufacturers specify displacement and LOA ranges for each model—respect these guidelines, as an underpowered unit will struggle to maintain course and may fail completely in heavy weather. The Simrad TP22 handles boats to approximately 5,500 kg displacement in moderate conditions, while the TP32 extends capability to 11,000 kg displacement and rougher weather. Raymarine's ST1000 Plus suits vessels to 4,500 kg, with the ST2000 Plus handling up to 6,500 kg. When in doubt, choose the more powerful option—excess thrust capacity means the unit works well within its limits, drawing less power and lasting longer than an overworked smaller model.
Should I add a rudder feedback unit to my tillerpilot installation?
Rudder feedback significantly improves autopilot performance by providing actual rudder position data to the processor. Without feedback, the autopilot estimates rudder position from actuator movement, introducing errors from mechanical compliance, gear backlash, and varying steering loads. Feedback-equipped systems respond faster and more accurately to course deviations, particularly important when following GPS routes with tight cross-track error tolerances. The Simrad RF45X provides rugged, sealed feedback sensing suitable for exposed tiller installations. While basic compass-course steering works adequately without feedback, sailors planning extended passages or complex waypoint navigation should strongly consider adding this capability during initial installation.
How often should I inspect and service my steering cables and quadrant?
Steering cable and quadrant inspection should occur at minimum annually, with complete service every three to five years depending on usage intensity. Inspect cables for broken strands, corrosion, and fair lead through sheaves—broken strands often occur first at terminal ends and bend points. Check quadrant attachment to the rudder stock, looking for play that indicates keyway wear or loose fasteners. Examine sheaves for groove wear, frozen bearings, and proper cable seating. Cables approaching ten years of service should be replaced regardless of apparent condition, as internal corrosion may not be visible. Quadrants rarely fail catastrophically but can wear at cable attachment points—replace pins and hardware showing measurable wear before failure occurs underway.
What's the difference between a balanced, semi-balanced, and unbalanced rudder?
Rudder balance describes the percentage of foil area forward of the rudder stock axis. An unbalanced rudder places all its area aft of the stock, requiring significant steering force to deflect but providing inherently stable "self-centering" behavior. A balanced rudder positions 15-25% of its area ahead of the stock, dramatically reducing steering loads but potentially creating dangerous instability if the balance percentage becomes excessive. Semi-balanced designs split the difference, typically with 8-15% forward area, providing reduced steering effort while maintaining adequate stability margins. Most modern production sailboat rudders are semi-balanced. When selecting replacement steering components or specifying custom rudder systems, matching the original balance percentage maintains the boat's designed handling characteristics.
Can I convert my wheel steering boat to tiller steering, or vice versa?
Steering system conversions are technically possible but involve significant engineering considerations beyond simply changing helm hardware. Tiller-to-wheel conversions require installing pedestal or bulkhead steering, adding quadrants and cables or hydraulic steering components, and potentially modifying cockpit structure for wheel placement. The resulting installation typically adds considerable weight and complexity to a system that functioned perfectly well as designed. Wheel-to-tiller conversions remove mechanical advantage that may be necessary for comfortable steering of larger rudders, though some offshore sailors make this change to eliminate cable and quadrant failure points on long passages. Either conversion should involve naval architect consultation to verify that the proposed system meets safety requirements and maintains appropriate handling characteristics.
