DESCRIPTION
DESCRIPTION

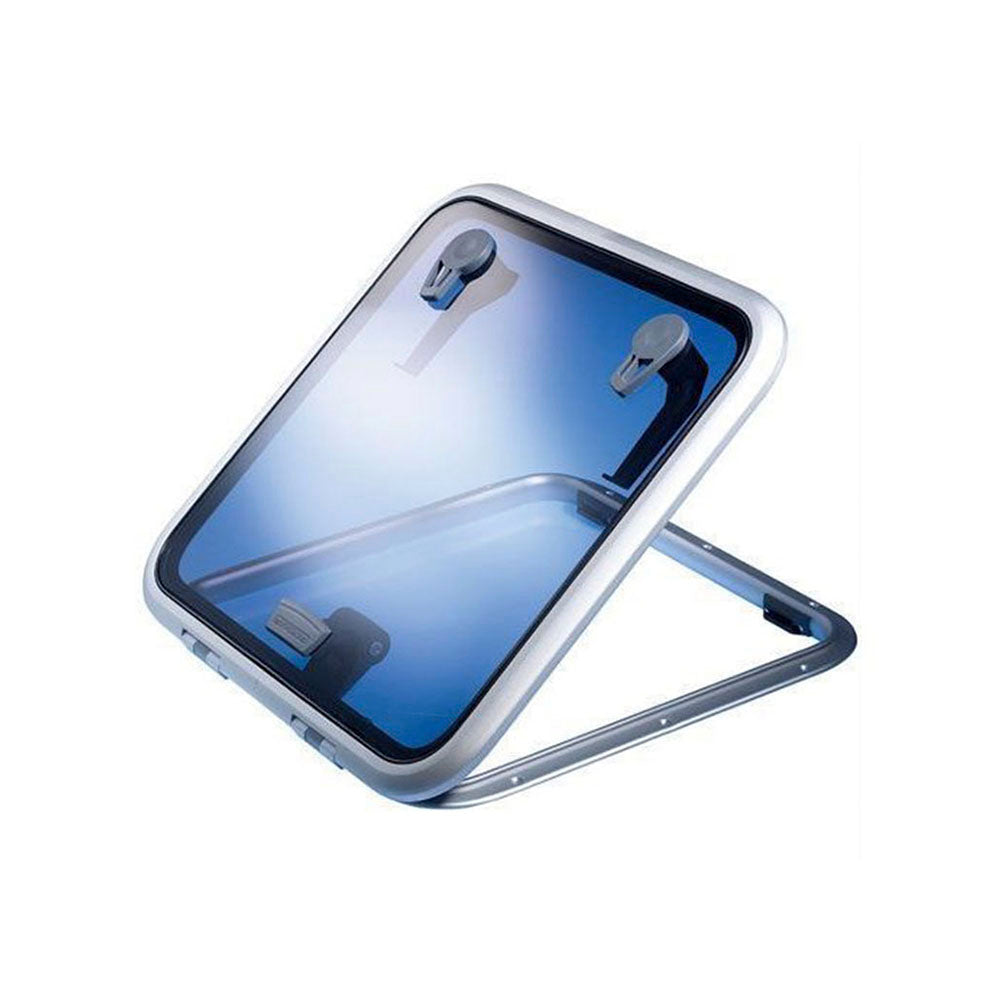

The Lewmar Low Profile Hatch #399300373 is an excellent choice for powerboats, combining style and functionality effortlessly. It's perfect for deck ventilation, offering a sleek design ideal for both small and mid-sized yachts. This hatch is a reliable option, making it a great addition to any marine vessel.
Crafted from durable grey acrylic, this hatch measures overall 15 5/8 x 20 3/4 inches (397 x 527 mm) and features a bright frame. It's designed for easy installation on flat surfaces with a maximum tolerance of +/- 1mm. Compatible with M6 (1/4") fasteners at the hinge section and 5mm CSK screw No.10 UNC 2 BA for the lower frame, this hatch is engineered for efficiency and style.
UsageIdeal for providing ventilation on powerboats, and suitable for foredeck installation on smaller to mid-sized yachts.
Our Part # LEW399300373 | Mfr. Part # 399300373
FEATURES
FEATURES
- Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
- Friction levers hold the lid open in any position up to 95 degrees
- Anodised aluminium frame for corrosion resistance
- Curved upper frame profile for strength as well as modern styling
- Available in Round and D-Hatch configuration
- Full range of spare parts available
- Soft styling with a sleek appearance
- Suitable for various deck locations on sailboats
- High-quality grey acrylic with a bright frame
- Equipped with a stay for secure opening
KNOWLEDGE BASE
KNOWLEDGE BASE
TECHNICAL INFORMATION
TECHNICAL INFORMATION

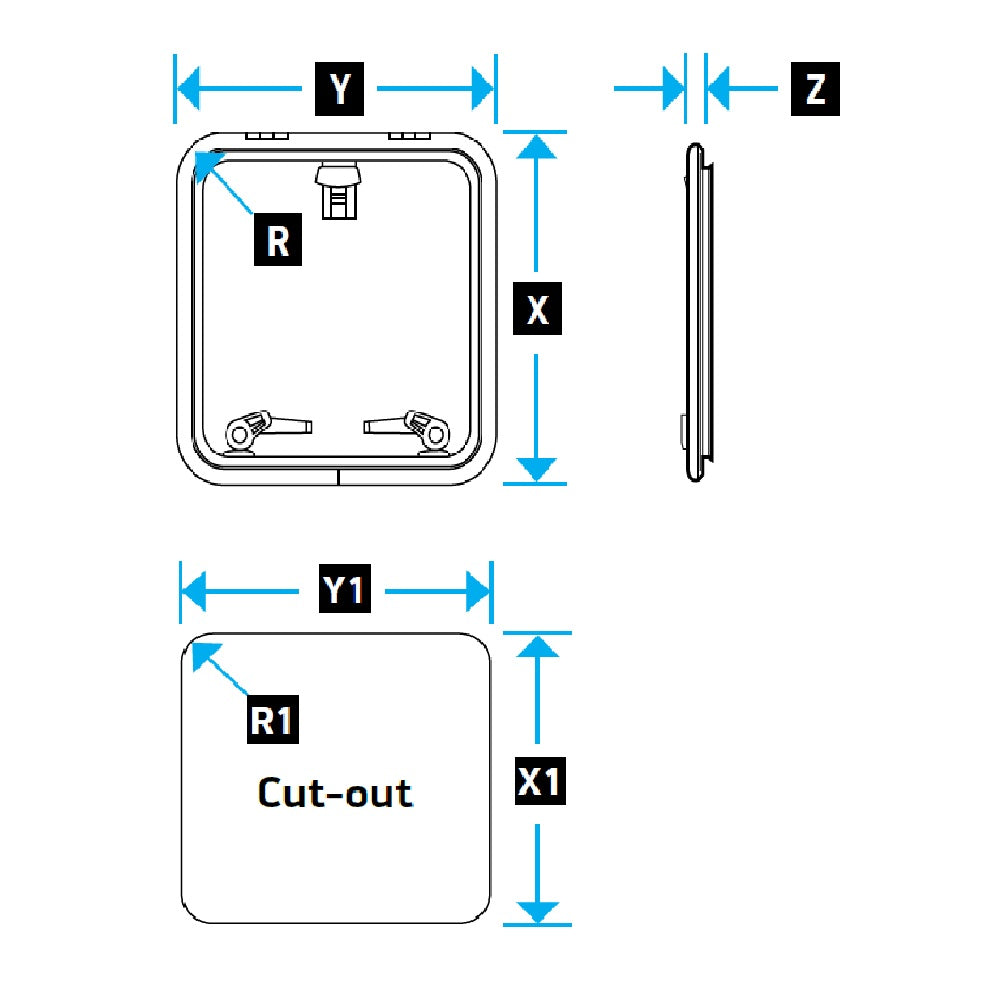

| Description | Metric | Imperial |
|---|---|---|
| Size | 30 | |
| Lower frame flange | 15 mm | 19/32 in |
| Length (X) | 397 mm | 15.62 in |
| Width (Y) | 527 mm | 20.75 in |
| Height (Z) | 25 mm | 1.0 in |
| Radii (Z) | 72.5 mm | 2.85 in |
| Length (X1) | 327 mm | 12.87 in |
| Width (Y1) | 457 mm | 17.99 in |
| Radii (Z1) | 42.5 mm | 1.67 in |
| Hatch weight | 4.2 kg | 9.3 lb |
| Acrylic window thickness | 8 mm | 0.31 in |
