Harken Electric Winch Rewind Size 40 - 24V / Aluminum Black / Two Speed / Left Mount (40RWA24HLM)

SKU: HAR40RWA24HLM  |  Manuf. Code: 40RWA24HLM
List Price:  4612.00 USD
$3,920.65 USD
You Save $692 This Week!

Description

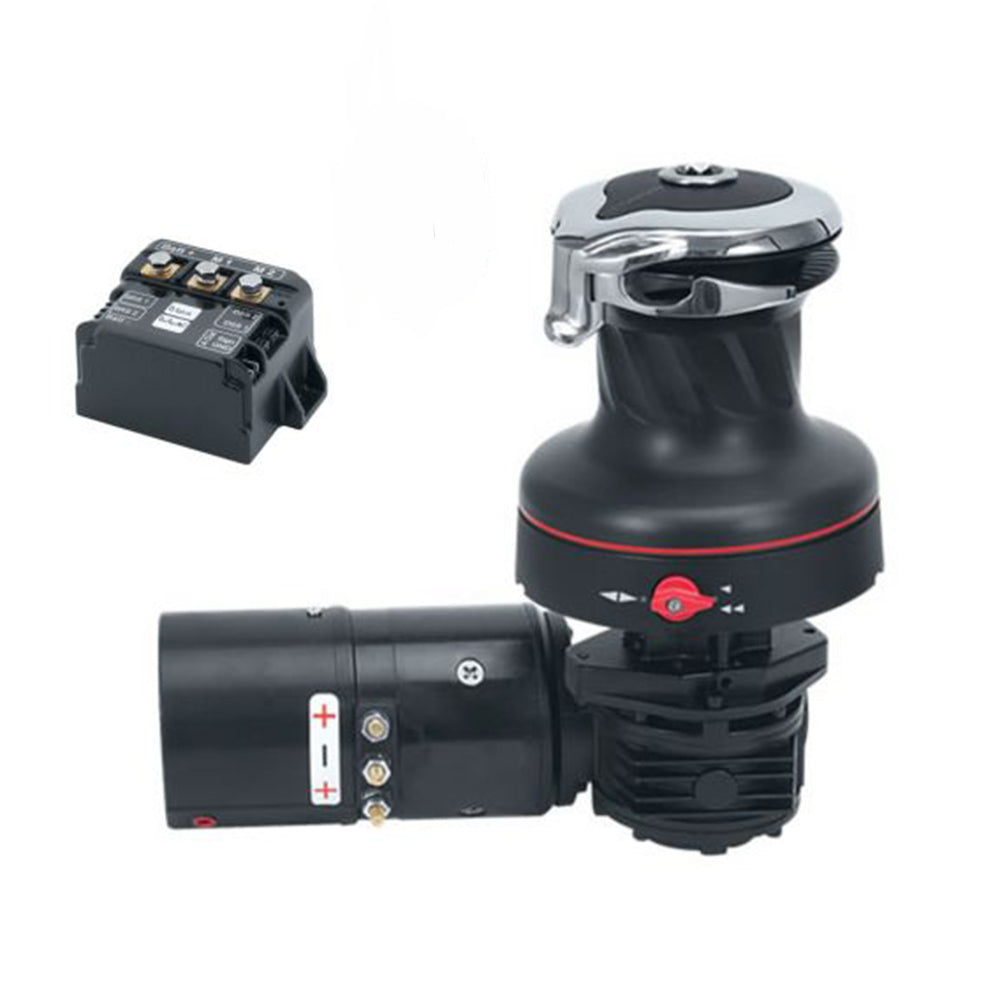

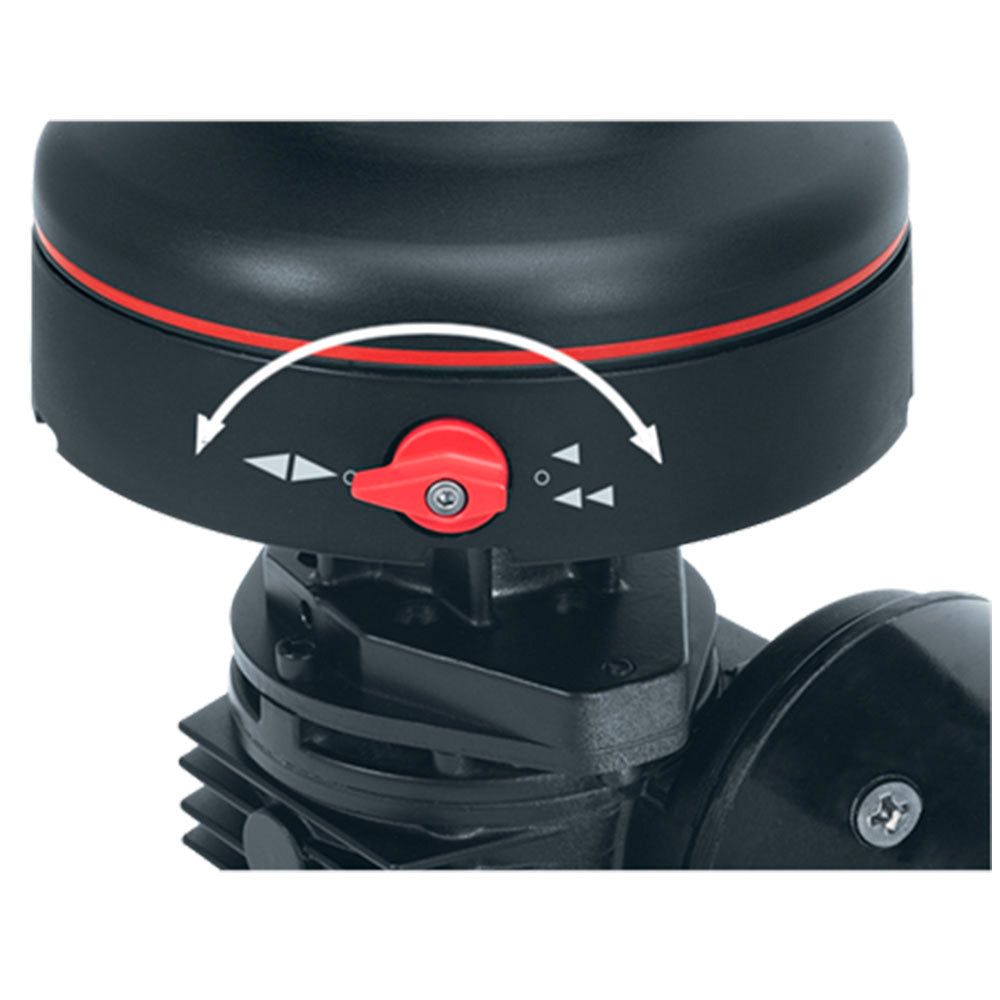

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.

Our Part # HAR40RWA24HLM | Mfr. Part # 40RWA24HLM

Technical Information

DescriptionImperialMetric
MaterialAluminum
Weight32.2 lb15 kg
Maximum line Ø1/2 in12 mm
Fasteners1/4 SH inM6 SH mm
Fastener circle4 7/8 in123 mm
Height6 7/8 in175 mm
E1 3/4 in43 mm
F6 1/8 in155 mm
G11 in280 mm
Number of fasteners5
ConfigurationSelf-tailing
Speed2
Drum Ø3 1/8 in80 mm
Base Ø6 3/16 in157 mm
Line entry height3 1/4 in82 mm
Minimum line Ø5/16 in8 mm
Gear ratio - 12.13
Gear ratio - 26.28
Power ratio - 113.5
Power ratio - 239.9
