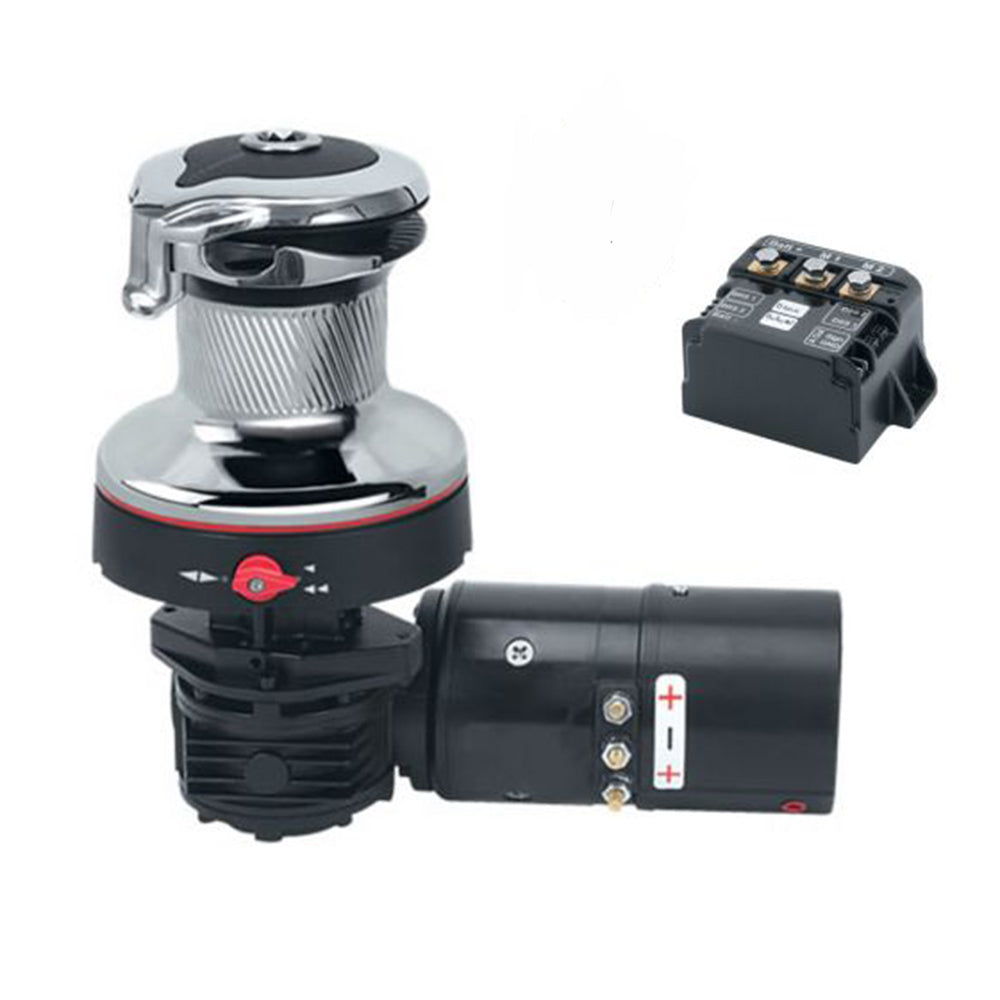

Harken Electric Winch Rewind Size 40 - 24V / Chrome / Two Speed / Right Mount (40RWC24H)
Harken Electric Winch Rewind Size 40 - 24V / Chrome / Two Speed / Right Mount (40RWC24H) is backordered and will ship as soon as it is back in stock.
Description
Description

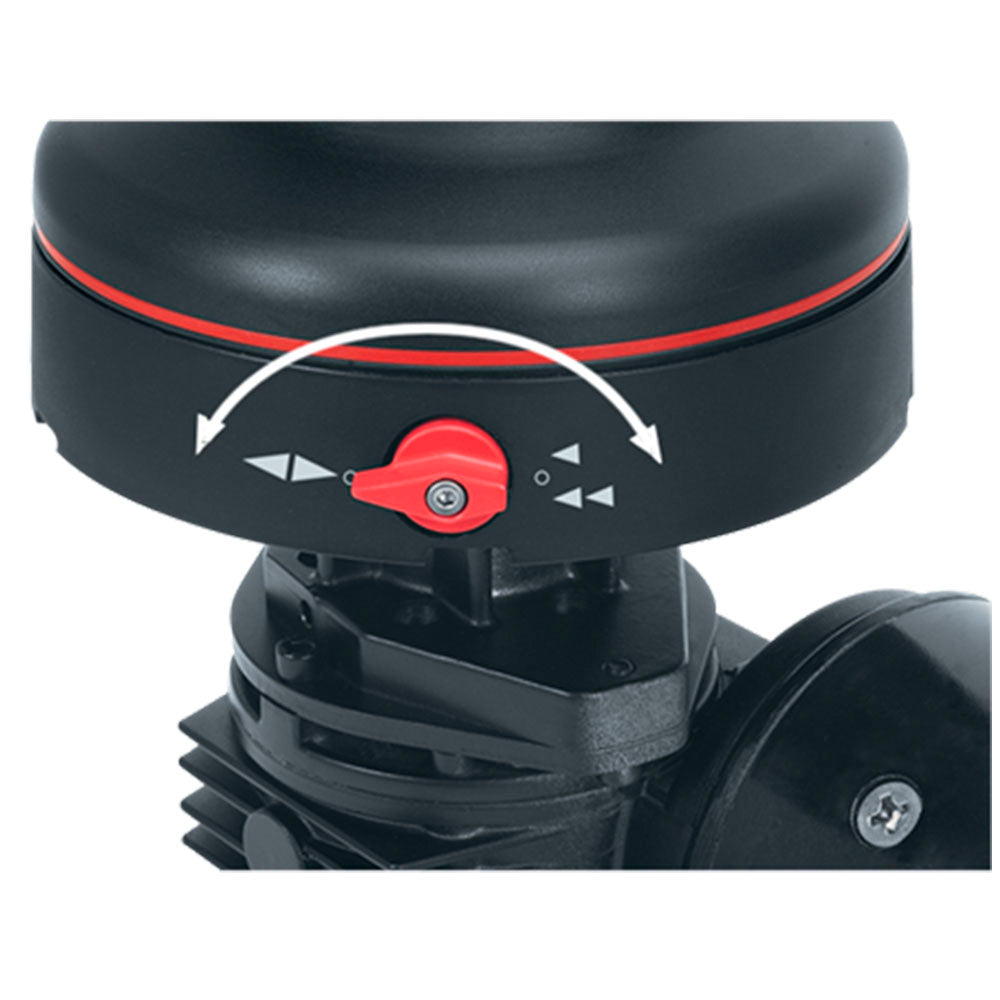

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.
Our Part # HAR40RWC24H | Mfr. Part # 40RWC24H
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Material | Chrome | |
Weight | 35.7 lb | 16.2 kg |
Maximum line Ø | 1/2 in | 12 mm |
Fasteners | 1/4 SH in | M6 SH mm |
Fastener circle | 4 7/8 in | 123 mm |
Height | 6 7/8 in | 175 mm |
E | 1 3/4 in | 43 mm |
F | 6 1/8 in | 155 mm |
G | 11 in | 280 mm |
Number of fasteners | 5 | |
Configuration | Self-tailing | |
Speed | 2 | |
Drum Ø | 3 1/8 in | 80 mm |
Base Ø | 6 3/16 in | 157 mm |
Line entry height | 3 1/4 in | 82 mm |
Minimum line Ø | 5/16 in | 8 mm |
Gear ratio - 1 | 2.13 | |
Gear ratio - 2 | 6.28 | |
Power ratio - 1 | 13.5 | |
Power ratio - 2 | 39.9 |
