DESCRIPTION
DESCRIPTION
The Twin halyard block is specially made for a 2 to 1 main halyard. The very small sheave is aluminium made with a Composite Fibre bushing. The body is completely made in âHigh-resistanceâ stainless steel Nitronic 50. 4 sizes for breaking loads from 2600 to 10000 kg, for boats up to 70 ft.
Our Part # ANTH020 | Antal Part # H020
FEATURES
FEATURES
- Twin sheave design for multiple lines.
- Features 26mm diameter sheaves.
- Ideal for halyard applications.
- Low friction operation.
- Durable marine-grade materials.
TECHNICAL INFORMATION
TECHNICAL INFORMATION

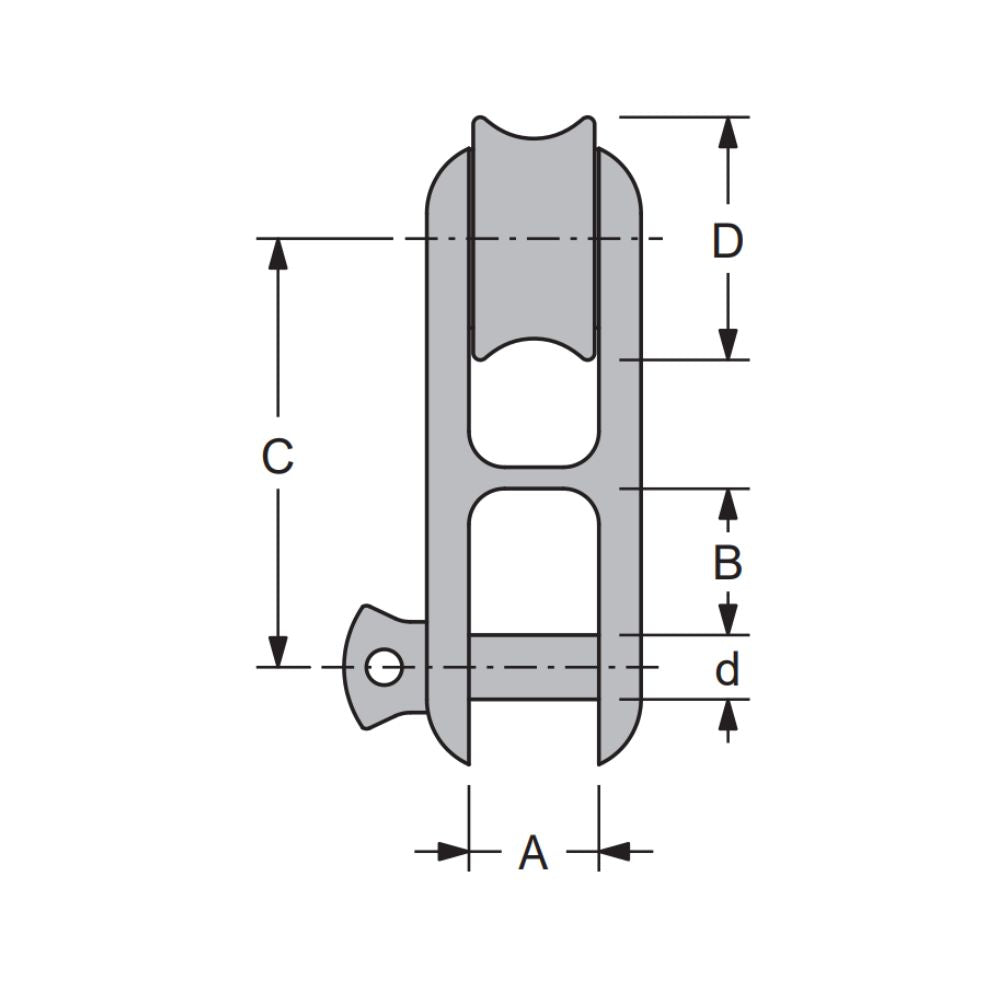

| Description | Imperial | Metric |
|---|---|---|
| Ø Line | 1/3 - 2/5 in. | 8.00 - 10.00 mm. |
| D | 1 1/9 in. | 28.00 mm. |
| d | 1/3 in. | 8.00 mm. |
| A | 5/8 in. | 16.00 mm. |
| B | 3/5 in. | 15.50 mm. |
| C | 2 1/9 in. | 53.50 mm. |
| Safe Working Load | 2866.50 lb. | 1300.00 kg. |
| Weight | 0.18 lb. | 0.08 kg. |
