Sailboat Blocks: The Foundation of Efficient Line Management
Sailboat blocks represent one of the most fundamental yet performance-critical components in your vessel's running rigging system. These mechanical devices serve two essential functions: redirecting lines around corners and through complex routing paths, and multiplying mechanical advantage to make sail handling manageable for crews of any size. Whether you're trimming a mainsheet on a 25-foot daysailer or managing a complex backstay cascade on a 60-foot offshore racer, the blocks you choose directly impact your ability to control sails efficiently, respond quickly to changing conditions, and maintain safety margins under load.
The performance characteristics of any block are primarily determined by three interrelated factors: the Working Load Limit (WLL) that defines maximum safe operating loads, the sheave diameter that influences line wear and friction coefficients, and the bearing system that determines rotation efficiency under both light and heavy loads. Modern sailboat blocks have evolved dramatically from simple wooden shells with bronze sheaves, now incorporating advanced materials like anodized aluminum frames, composite housings, Torlon bearings, and high-molecular-weight polyethylene sheaves. These material advances translate directly to reduced weight aloft, lower friction losses in your purchase systems, and extended service life even in demanding offshore conditions.
Understanding block selection requires appreciating how loads multiply through rigging systems. A mainsheet system with a 4:1 purchase doesn't simply divide sail load by four—each block in the cascade experiences different forces based on its position, the angle of line entry and exit, and dynamic shock loads from waves and wind gusts. This complexity makes proper block specification essential for both performance optimization and safety. An undersized block creates a weak point in your entire system, while an oversized block adds unnecessary weight and windage without corresponding benefit. At MAURIPRO, our rigging specialists regularly help sailors navigate these calculations, matching block specifications to real-world sailing demands across everything from coastal cruising to round-the-world racing campaigns.
How to Choose the Right Sailboat Blocks
Understanding Working Load Limits and Safety Factors
Working Load Limit (WLL) represents the maximum load a block should experience during normal sailing operations, typically calculated as 40-50% of the block's ultimate breaking strength. This safety factor accounts for dynamic loading, shock loads from waves, and the cumulative effects of wear over the block's service life. When sizing blocks for your application, calculate expected loads using sail area, wind pressure, and purchase system ratios, then select blocks with WLL ratings that exceed your calculated maximum by at least 25%.
For mainsheet applications on boats under 30 feet LOA, blocks rated between 500-1,200kg WLL generally provide adequate capacity with appropriate safety margins. Mid-size cruisers from 30-45 feet typically require mainsheet blocks in the 1,200-2,500kg WLL range, while larger yachts and performance boats may demand blocks rated to 4,000kg WLL or higher. Remember that loads at the boom-end of a mainsheet system differ significantly from loads at the cockpit blocks, allowing you to optimize weight and cost by specifying appropriate ratings for each position.
Halyard blocks experience different loading patterns than sheet systems, with sustained high loads during hoisting followed by relatively constant tension while sailing. Genoa halyard blocks on a 40-foot cruiser commonly experience working loads of 800-1,500kg, requiring blocks with WLL ratings of at least 1,800-2,200kg. Spinnaker gear presents its own challenges, with blocks needing to handle rapid direction changes and shock loads from broaches or sudden wind shifts. When in doubt about load calculations, our rigging team can provide guidance based on your specific boat, sail inventory, and sailing program.
Sheave Diameter and Line Compatibility
Sheave diameter directly affects both line wear and friction in your running rigging systems. The fundamental rule states that sheave diameter should be at least eight times the diameter of the line it carries—so a 12mm line requires a minimum 96mm sheave diameter. Exceeding this ratio reduces line fatigue and friction, with high-performance systems often using 10:1 or 12:1 ratios for critical applications. Lines forced around undersized sheaves experience accelerated core fatigue, premature cover wear, and significantly higher friction that reduces system efficiency.
Beyond the basic diameter ratio, sheave groove profile must match line construction. Modern high-tech lines with Dyneema or similar fiber cores run best on sheaves with relatively flat groove profiles that distribute load across the line's width. Traditional three-strand and double-braid lines work well with deeper V-grooves that center the line and prevent riding up onto the cheeks. Many premium blocks now feature grooves optimized for specific line families, with manufacturers providing compatibility charts for their sheave options.
Weight-conscious racing sailors often push sheave diameter limits to save grams aloft, accepting increased line wear as a trade-off. Cruising sailors prioritizing longevity should err toward larger sheave diameters, particularly for halyards that see constant use and difficult replacement when damaged. When specifying blocks for your boat, inventory your current line diameters and planned replacements, then select sheave sizes that provide appropriate ratios for your heaviest-use applications.
Bearing Systems: Balls, Bushings, and Torlon
The bearing system within a block determines rotation characteristics under varying loads, affecting everything from light-air sheet trimming to heavy-weather handling. Three primary bearing types dominate modern block construction, each with distinct performance characteristics suited to different applications.
Ball-bearing blocks use captured stainless steel or ceramic balls running in machined races, providing exceptionally low friction under moderate to heavy loads. These bearings require periodic service to maintain performance but deliver the smoothest operation for applications like mainsheets where fine trim adjustments matter. Ball-bearing systems excel in purchase systems where multiple blocks compound friction losses—each percentage point of efficiency gained multiplies through the cascade.
Plain bushing or sleeve-bearing blocks use Delrin, Torlon, or similar low-friction materials rotating directly on stainless steel or aluminum axles. These systems offer excellent durability with minimal maintenance requirements, making them popular for cruising applications and positions exposed to salt spray and debris. While friction is slightly higher than ball bearings under moderate loads, bushing bearings often outperform balls under very light loads where ball bearings can feel "notchy" during rotation.
Roller bearing blocks represent a middle ground, using needle rollers or cylindrical elements to reduce friction while maintaining durability superior to ball bearings in contaminated environments. Some high-end blocks combine bearing types, using roller or ball races for radial loads with Torlon thrust washers handling side loads from angled line entry.
Block Types and Their Applications

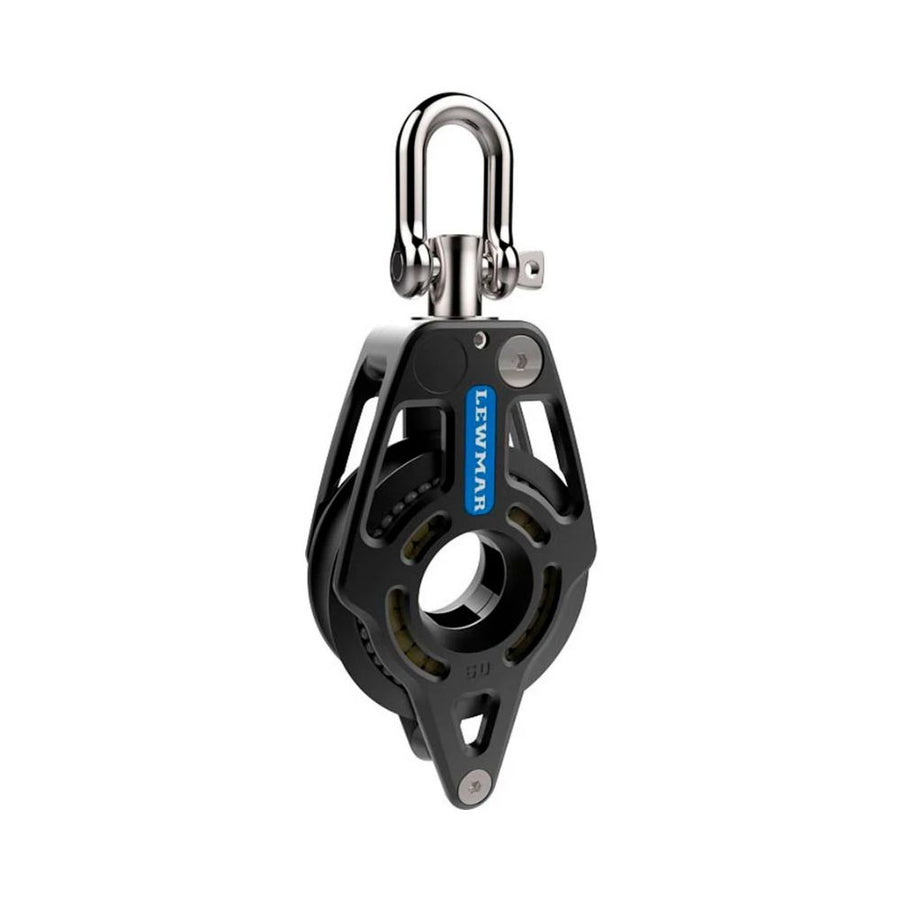

Single blocks provide simple line redirection without mechanical advantage, serving as turning blocks, lead blocks, and termination points in purchase systems. Quality single blocks feature low-friction bearings, appropriate sheave diameters for intended line sizes, and attachment heads suited to their mounting position. Swivel heads allow the block to track line angles automatically, reducing side-loading on bearings. Becket attachments provide secure termination points for standing ends of purchase systems. Working load limits for single blocks typically range from 500kg for small utility blocks to over 5,000kg for primary sheet leads on large yachts.
Double blocks incorporate two sheaves in parallel, creating 2:1 mechanical advantage when used with a matching single block. These find primary application in mainsheet systems, vangs, and anywhere moderate power multiplication benefits sail handling. High-load double blocks for mainsheet applications often feature wide spacing between sheaves to prevent line-on-line contact, along with robust head fittings capable of handling loads from multiple directions.
Triple blocks extend mechanical advantage to 3:1, commonly employed in vang systems, backstay controls, and heavy-duty mainsheet configurations. The increased sheave count demands careful attention to frame rigidity and bearing quality, as friction losses compound through each additional sheave. Premium triple blocks from manufacturers like Schaefer use precision-machined aluminum frames with polished bearing surfaces to minimize efficiency losses.
Fiddle blocks arrange two different-diameter sheaves vertically rather than side-by-side, creating a more compact footprint while allowing cascade connections between purchase systems. The larger lower sheave typically handles the loaded part of the system while the smaller upper sheave manages the lighter fall. Fiddle configurations reduce tangling in complex control systems and allow more elegant lead arrangements in confined cockpit spaces.
Ratchet blocks incorporate a one-way clutch mechanism allowing the sheave to rotate freely in one direction while locking against reverse rotation under load. This feature reduces holding effort for sheets under tension, allowing crews to ease and trim without constantly fighting sail pressure. Mainsheets, spinnaker sheets, and jib sheets all benefit from ratchet mechanisms, particularly during extended sailing sessions where crew fatigue becomes a factor. Quality ratchet blocks feature easily disengaged mechanisms for situations requiring free-running operation.
Snatch blocks allow mid-line attachment through an opening side plate, enabling temporary rigging configurations without threading line ends. These prove invaluable for emergency repairs, sail handling variations, and versatile deck layouts. The opening mechanism necessarily introduces potential weak points, so snatch blocks typically carry lower WLL ratings than equivalent fixed blocks. Use snatch blocks where their convenience justifies the capacity trade-off rather than as permanent primary sheet leads.
Frame Materials and Construction
Modern block frames span a spectrum from marine-grade stainless steel for maximum strength and corrosion resistance to exotic composites offering minimum weight with adequate strength. Material selection involves trade-offs between durability, weight, cost, and aesthetic preferences that vary based on your sailing program and budget.
Stainless steel frames provide ultimate durability for cruising applications, withstanding years of UV exposure, salt spray, and occasional impact without structural degradation. The weight penalty of stainless steel makes it less attractive for racing applications, particularly for blocks positioned aloft or on boom ends where mass affects stability and handling. Schaefer's premium stainless steel blocks exemplify this category, featuring precision-machined frames with hand-polished finishes that resist corrosion while maintaining smooth operation over decades of service.
Aluminum frames offer an excellent balance of strength, weight, and cost for most sailing applications. Marine-grade aluminum alloys resist corrosion when properly anodized, though they require more careful maintenance in tropical saltwater environments than stainless alternatives. The majority of mid-range and high-performance blocks use aluminum frames, with wall thicknesses and ribbing designs engineered for optimal strength-to-weight ratios.
Composite frames using glass-reinforced polymers or carbon fiber composites achieve the lowest weights while providing corrosion-proof construction. Racing blocks from premium manufacturers combine carbon fiber frames with titanium hardware and ceramic bearings for maximum performance, though at price points that limit their appeal for cruising applications. Fiberglass-reinforced composites offer a more accessible entry point to lightweight block construction, suitable for performance cruising and club racing.
Mounting Options and Head Configurations
Block attachment methods must match both the structural mounting point and the loading direction expected in service. Swivel heads with shackle attachments provide maximum versatility, allowing blocks to pivot and track line angles automatically. Fixed heads using clevis pins or bolted connections offer reduced articulation but greater security for high-load applications where unexpected movement could cause problems.
Universal heads, found on many Schaefer blocks, combine multiple attachment options in a single fitting. These adaptable heads accept shackles, toggle pins, or direct bolting, allowing the same block model to serve different positions aboard. The 3-way universal heads on Schaefer's 10/11 Series blocks exemplify this approach, accommodating various mounting configurations while maintaining full load ratings.
Becket attachments provide anchor points for standing ends of purchase systems, eliminating the need for separate termination hardware. Blocks with integrated beckets streamline installation and reduce potential failure points in the rigging chain. When specifying blocks for new purchase systems, consider whether becket attachments simplify your intended configuration.
Cam cleat integrations combine block and clutch functions into unified assemblies for certain applications. Schaefer's triple blocks with adjustable cams provide an excellent example, offering mechanical advantage and line control in a single compact package ideal for vang systems or control lines where space limitations prevent separate components.
Sizing Blocks for Your Boat
Appropriate block sizing considers boat displacement, sail area, and sailing program intensity rather than simply matching LOA or following generic recommendations. A lightweight racing 35-footer and a heavy cruising 35-footer have dramatically different rigging loads despite identical length overall.
For boats under 30 feet with displacement under 8,000 pounds, consider blocks with WLL ratings from 500-1,500kg for mainsheet systems and 300-800kg for control lines. Sheave diameters of 40-60mm suit typical line sizes of 8-10mm diameter. Fiddle blocks with 400-1,000kg ratings handle most cascade configurations effectively.
Mid-size cruisers from 30-45 feet with displacement from 10,000-25,000 pounds require mainsheet blocks rated 1,500-3,000kg WLL with sheave diameters of 50-80mm for 10-14mm lines. Halyard blocks should match or exceed mainsheet ratings, with turning blocks at deck level sized appropriately for expected loads at each position.
Performance cruisers and racing boats in these size ranges often benefit from premium blocks with ball-bearing systems despite higher costs, as the accumulated friction savings improve both speed and crew comfort over extended sailing. Weight savings from aluminum or composite construction become meaningful for boats pursuing racing results.
Larger yachts from 45-60 feet demand serious engineering attention to block selection, with mainsheet systems potentially requiring blocks rated to 4,000-6,000kg WLL or higher. At these load levels, proper specification prevents equipment failure with potentially catastrophic consequences. Professional rigging consultation ensures appropriate safety margins while avoiding excessive overspecification that adds unnecessary weight and cost.
Brand Overview
Schaefer Marine
Schaefer Marine has manufactured precision sailing hardware in New Bedford, Massachusetts since 1960, building a reputation for bulletproof construction and conservative engineering. Their blocks feature machined stainless steel and aluminum frames with tight tolerances, premium bearing systems, and hand-assembled quality control. The company's 10/11 Series represents their core block lineup, offering multiple sheave configurations with interchangeable components allowing customization for specific applications. Schaefer's Universal Head system provides exceptional mounting versatility, adapting to various attachment methods without compromising load ratings.
The integration of adjustable cam cleats into Schaefer triple blocks demonstrates their system-thinking approach, providing complete purchase assemblies for vang and control line applications. Their stainless steel construction resists the corrosion that degrades lesser blocks in offshore environments, making Schaefer equipment a common sight on bluewater cruisers and expedition yachts. While Schaefer blocks carry premium pricing reflecting their American manufacturing and material quality, the long service life and consistent performance justify the investment for serious sailors.
Best for: Bluewater cruisers, offshore racers, and discriminating sailors who prioritize durability and American-made quality over initial cost savings.
Frequently Asked Questions
What's the difference between Working Load Limit and Breaking Strength for sailboat blocks?
Working Load Limit (WLL) represents the maximum load a block should experience during normal sailing operations, while Breaking Strength indicates the load at which catastrophic failure occurs. WLL is typically calculated at 40-50% of breaking strength, providing a safety margin for dynamic loading, shock loads, and material fatigue over time. When sizing blocks, always use WLL as your reference and select blocks with WLL ratings exceeding your calculated maximum loads by at least 25%. Never rely on breaking strength ratings for everyday operations, as approaching these loads causes permanent deformation and dramatically increases failure risk even if immediate breakage doesn't occur.
How do I calculate the loads on my mainsheet blocks?
Start with your mainsail's maximum working load at the boom end, which depends on sail area, wind speed, and boom length. For a rough estimate, multiply sail area in square feet by 0.004 times wind speed in knots squared. A 300 square foot main in 25 knots generates approximately 750 pounds of sheet tension at the boom. This load divides through your purchase system—a 4:1 mainsheet sees roughly 190 pounds at the cleat—but remember that each block in the system experiences different loads based on position. The boom-end block sees full sail load while intermediate blocks see progressively reduced loads. Add 50% for dynamic shock loading from waves and gusts, then select blocks with WLL ratings exceeding your calculated maximums.
When should I choose ball bearing blocks versus plain bearing blocks?
Ball bearing blocks provide lowest friction under moderate to heavy loads, making them ideal for mainsheets, halyards, and multi-part purchase systems where friction losses compound through multiple sheaves. Choose ball bearings when fine trim sensitivity matters or when crew effort reduction is a priority. Plain bearing (bushing) blocks offer greater durability with less maintenance, excelling in applications exposed to sand, salt crystals, or debris that could contaminate ball races. Plain bearings also perform better under very light loads where ball bearings can feel notchy. For cruising applications prioritizing reliability over ultimate performance, quality plain bearing blocks often represent the better value, while racers benefit from ball bearings in primary control systems.
How often should I service my sailboat blocks, and what maintenance do they require?
Inspection frequency depends on usage intensity and sailing environment, but all blocks benefit from thorough examination at least twice yearly. Clean blocks with fresh water after saltwater sailing, removing salt crystals that accelerate bearing wear and frame corrosion. Inspect sheaves for scoring, wear grooves, or edge damage that increases line friction and causes premature line failure. Check bearings by spinning sheaves to feel for roughness, catching, or excessive play. Ball bearing blocks require periodic disassembly for cleaning and light lubrication with marine-grade bearing grease—typically annually for cruising boats or more frequently for racing programs. Plain bearing blocks need only occasional fresh water flushing unless contaminated with sand or debris. Replace any blocks showing cracked frames, bent axles, or corroded hardware regardless of remaining bearing life.
What's the advantage of fiddle blocks over standard double blocks?
Fiddle blocks stack two sheaves vertically rather than side-by-side, creating a more compact footprint that facilitates cleaner lead arrangements in confined spaces. The configuration places the larger, loaded sheave at the bottom with a smaller sheave above for the fall or secondary line, naturally separating the two parts of a purchase system. This vertical arrangement reduces tangling in complex control cascades and allows more direct leads from turning blocks. Fiddle blocks excel in vang systems, cunningham controls, and any application where a standard double block would create awkward line angles or increase system height. The different sheave diameters also optimize each position—larger diameter for the loaded part reduces friction and line wear where it matters most, while the smaller upper sheave saves weight and space on the lightly loaded fall.
Should I use ratchet blocks for my mainsheet, and can they be switched off?
Ratchet blocks significantly reduce holding effort for sheets under tension, allowing crews to ease and trim without constantly fighting sail pressure. They're particularly valuable for mainsheets on boats sailed short-handed, during long passages where fatigue accumulates, or anytime sail loads exceed comfortable hand-holding force. Quality ratchet blocks include engagement mechanisms allowing the ratchet function to be switched off when free-running operation is needed—during light-air sailing, when flaking sails, or when the mechanical lockup interferes with trim adjustments. The ratchet mechanism does add some friction to the system even when disengaged, so racers sailing in predominantly light conditions sometimes prefer standard blocks. For most cruising and coastal racing applications, the effort reduction from ratchet mainsheet blocks justifies the minor friction penalty, with engagement switches providing flexibility for varying conditions.
