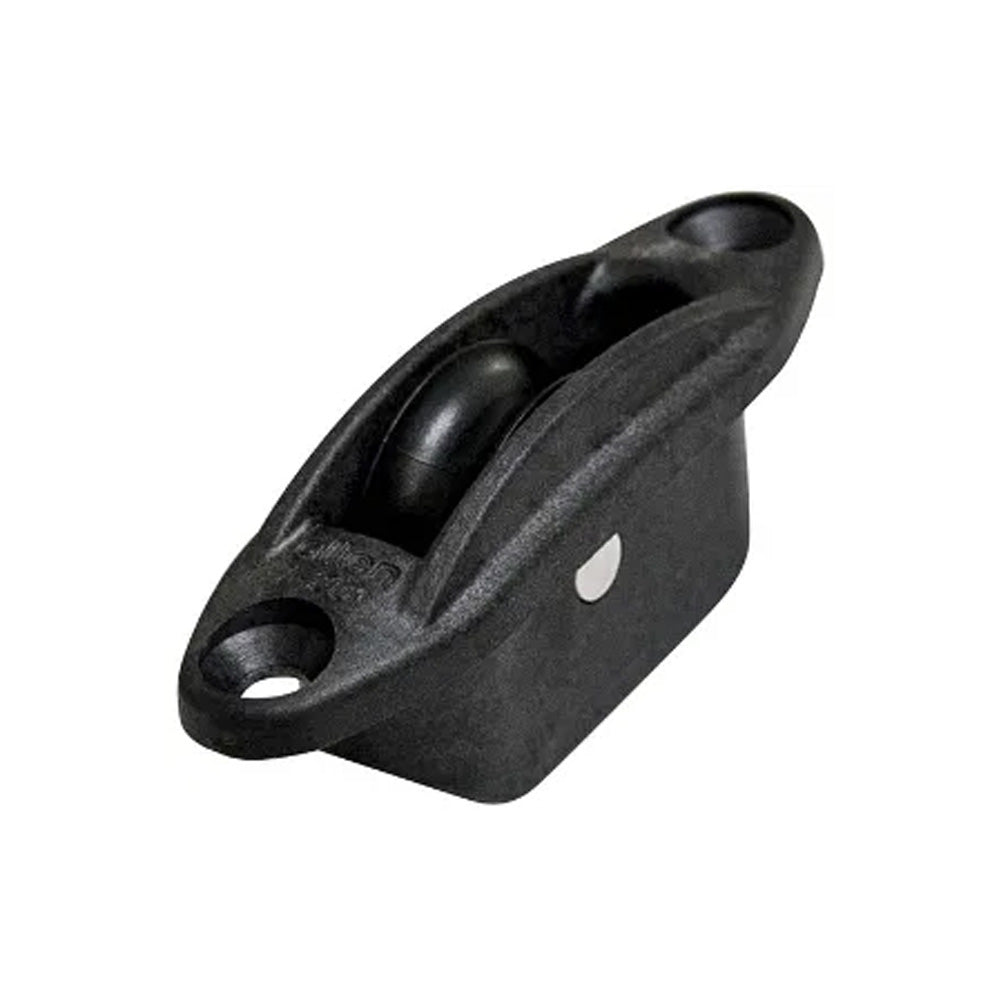

Allen 30 mm Allenite Through Deck

SKU: ALL-A2131  |  Manuf. Code: A2131
$34.95 USD
This product ships from the UK.

Description

30mm Single Dynamic Through Deck Block.

Our through deck blocks offer frictionless guidance for rope and wire control lines which are required to pass through a deck or surface.

Featuring a hard-wearing acetal body shaped perfectly to house the sheave, which results in a performance that you can rely on for adjustable rigging and other highly loaded applications.

Our Part # ALL-A2131 | Allen Part # A2131

Features

Features:

  • Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Technical Information


DescriptionImperialMetric
Breaking load1102.50 lbs.500.00 kg.
Length1 6/7 in.47.00 mm.
Maximum line diameter1/3 in.8.00 mm.
Maximum working load308.70 lbs.140.00 kg.
Weight0.90 oz.25.60 g.
Fixing hole centres2 1/3 in.60.00 mm.
