Vetus Stanchion - Length: 29 1/2 in (74.9 cm)
VTSSTANCH75
$165.00 USDList Price: $195.07 USDUnit price /Unavailable -
-
-
-

Schaefer Stanchion Tube Double - Length: 26.0 in (66.0 cm)
SCH3617
$259.00 USDUnit price /Unavailable -
Stanchion Bases and Tubes: Matching the Post, the Base and the Lifeline Hardware
A lifeline is only as good as the post it hangs from. The stanchion tube, the base or socket it sits in, and the fittings that carry the wire all have to match in diameter, or the system rattles, leans or lets go. This collection holds the posts, bases and sockets for replacing or adding to an existing rail, plus the Hayn slip-over fittings that add a lifeline attachment point to a tube you already have. Every size here is built around 1 in (about 25 mm) tube.
Stanchion and Base Families in This Collection
- Vetus stainless stanchions: tapered, 25 mm diameter, with two wire holes, in four lengths: 50 cm (19 11/16 in), 55 cm (21 11/16 in), 61 cm (24 in) and 74.9 cm (29 1/2 in). The 50 cm listing gives the two wire holes at 300 mm spacing.

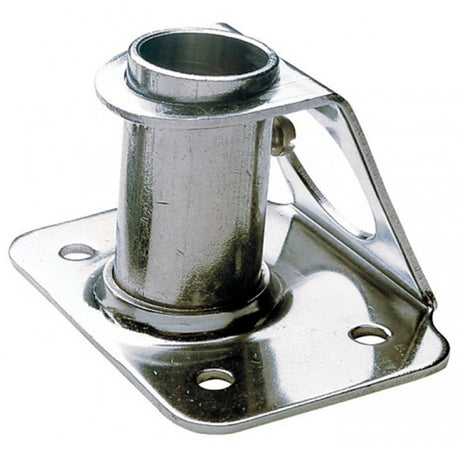

- Vetus stanchion sockets: angled and straight versions, listed at 25 mm diameter.

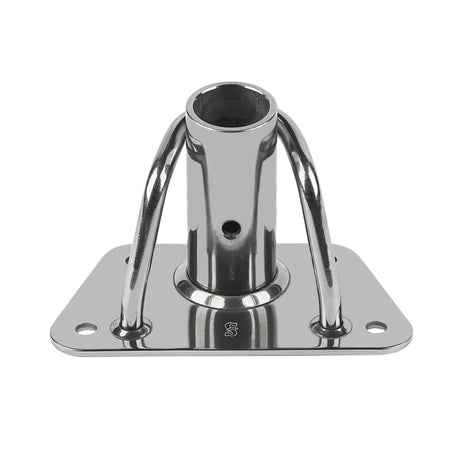

- Schaefer stanchion tube and base: the 26 in (66 cm) tube, #36-17, which the listing says takes coated wire up to 5/16 in (8 mm), and the Schaefer base, #36-01, which the tube is listed to work with. The base is not included with the tube, so order both. Also browse the full Schaefer stanchion bases and tubes range.
- Hayn eyes and pulpit anchor: the 1-loop and 2-loop stanchion eyes slip over a 1 in stanchion and lock with two set screws, adding lifeline hardware without replacing the post. The pulpit anchor pushes over a 1 in tube and has a 1/2 in hole, to add a lifeline attachment point to a bow or stern rail or a stanchion.
How to Choose
- Tube diameter first. Everything here is 1 in (25.4 mm) or 25 mm. Measure the outside diameter of your existing post with calipers before you order, rather than assuming.
- Length. Replace like for like unless you are deliberately changing the rail height. The Vetus range steps from 50 to 74.9 cm and the Schaefer tube is 26 in (66 cm), so measure your current stanchion from the base seat to the top.
- Base or socket. A stanchion needs something to sit in. Match the new post to the base or socket it will be paired with, and check the listing to see whether the base is included. It is not on the Schaefer tube.
- Wire holes and wire size. The Vetus stanchions have two wire holes. The Schaefer listing quotes up to 5/16 in coated wire. Check your lifeline diameter against the post before you buy.
- Bent posts. A bent stanchion moves the anchor points your lifelines are measured from. Our guide on how to measure sailboat lifelines starts by confirming the posts are straight (replace or repair any that are bent) before tensioning and measuring.
Who It's For
Owners replacing a bent or corroded post, refit projects renewing the whole rail, and anyone adding a lifeline attachment, a gate eye or a pulpit anchor to an existing rail. Looking by brand? See Vetus stanchion bases and tubes, Hayn stanchion bases and tubes and Schaefer stanchion bases and tubes. For the wire ends, see lifeline hardware studs, lifeline hardware toggles and Sta-Lok lifeline hardware.
Frequently Asked Questions
What is the difference between a stanchion, a base and a socket?
The stanchion is the post that carries the lifeline. The base or socket is the fitting fixed to the deck that the post sits in. In this collection Vetus supplies both the stanchions and the sockets, and the Schaefer tube is listed to work with the Schaefer base #36-01.
What diameter are these stanchions?
The Vetus stanchions and sockets are listed at 25 mm, the Hayn fittings are made for 1 in rail, and the Schaefer listing describes a 1 in post. One inch is about 25.4 mm, so confirm your own tube with calipers before ordering.
Can I add a lifeline attachment point without replacing the stanchion?
Yes, with the Hayn parts: the stanchion eye slips over a 1 in stanchion and is secured with two set screws, and the pulpit anchor pushes over a 1 in tube.
Is the base included with the tube?
Not on the Schaefer tube. Its listing says the Schaefer base #36-01 is not included, so add the base to your order.
How do I get the right lifeline length once the posts are replaced?
Fit and straighten the new posts first, then measure the wire. Our guide How to Measure Sailboat Lifelines shows how to measure bearing surface to bearing surface and record wire diameter and end fittings.
