Lewmar Low Profile Hatch Size 60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - White Acrylic / White Frame with Stay (399603323)

SKU: LEW399603323  |  Manuf. Code: 399603323
List Price:  $1,045.95 USD
$650.00 USD

You save 38% ($396 off List)
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The Lewmar Low Profile Hatch #399603323 is a sleek and stylish addition, perfect for powerboats and sailboats alike. Its design makes it an excellent choice for smaller ventilation areas or as a foredeck option on yachts. With its white acrylic and frame, it blends seamlessly into your vessel's aesthetic.

This low-profile sailboat deck hatch, measuring 22 11/16 x 22 11/16 inches (576 x 576 mm), features a durable white acrylic material set in a matching white frame. Designed for compatibility with multiple boat types, it fits flat surfaces with a tolerance of +/- 1mm. Technical specifications include a fastening size of M6 / 1/4" at the hinge section and 5mm CSK screw No.10 UNC 2 BA for the lower frame.

Our Part # LEW399603323 | Mfr. Part # 399603323

FEATURES

  • Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
  • Friction levers hold the lid open in any position up to 95 degrees
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling
  • Available in Round and D-Hatch configuration
  • Full range of spare parts available
  • Soft styling with a sleek look
  • Suitable for various deck locations
  • Comes with a stay for secure positioning

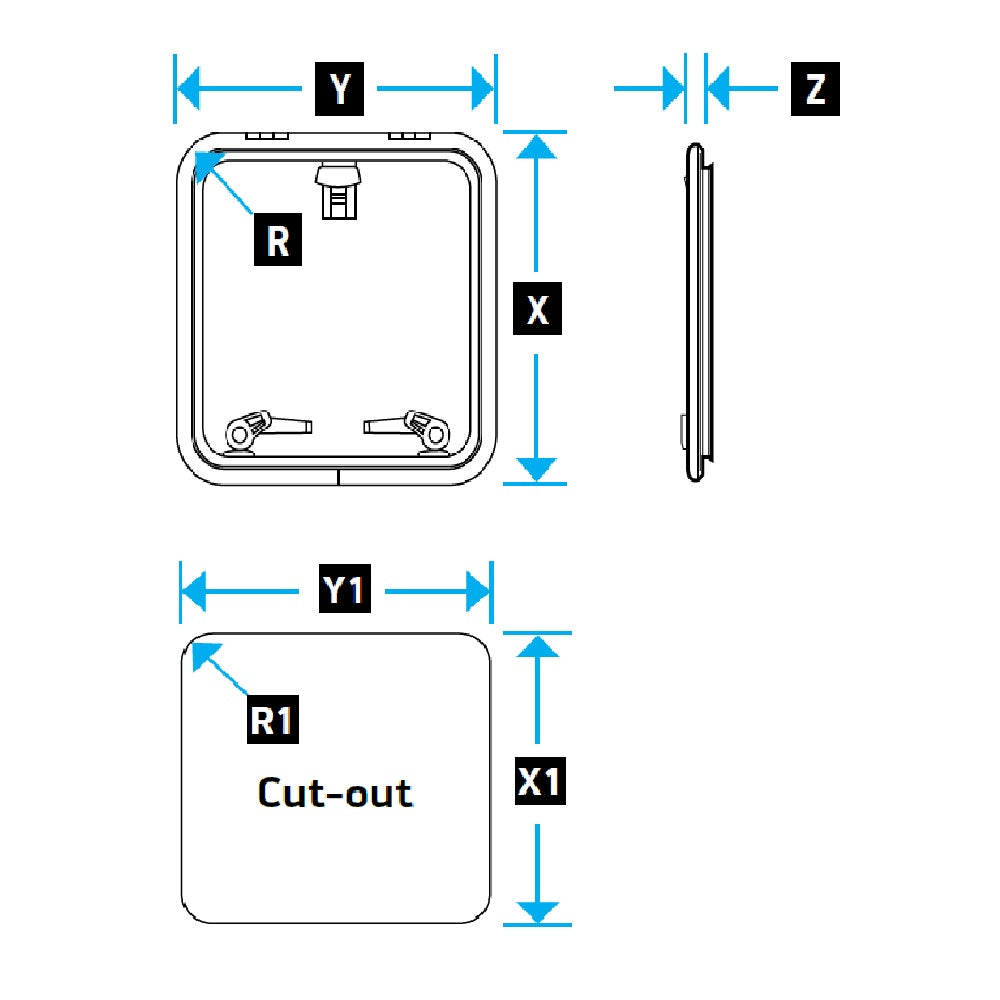

TECHNICAL INFORMATION

DescriptionMetricImperial
Size60
Lower frame flange15 mm19/32 in
Length (X)577 mm22.71 in
Width (Y)577 mm22.71 in
Height (Z)25 mm0.98 in
Radii (Z)72.5 mm2.85 in
Length (X1)507 mm19.96 in
Width (Y1)507 mm19.96 in
Radii (Z1)42.5 mm1.67 in
Hatch weight6.4 kg14.1 lb
Acrylic window thickness10 mm0.39 in
