When you race HARD, and you rip through as many hoists and douses as we do sailing W-L legs all the time, you should expect to start wearing through the sideplates of your halyard exit block right? Wrong!

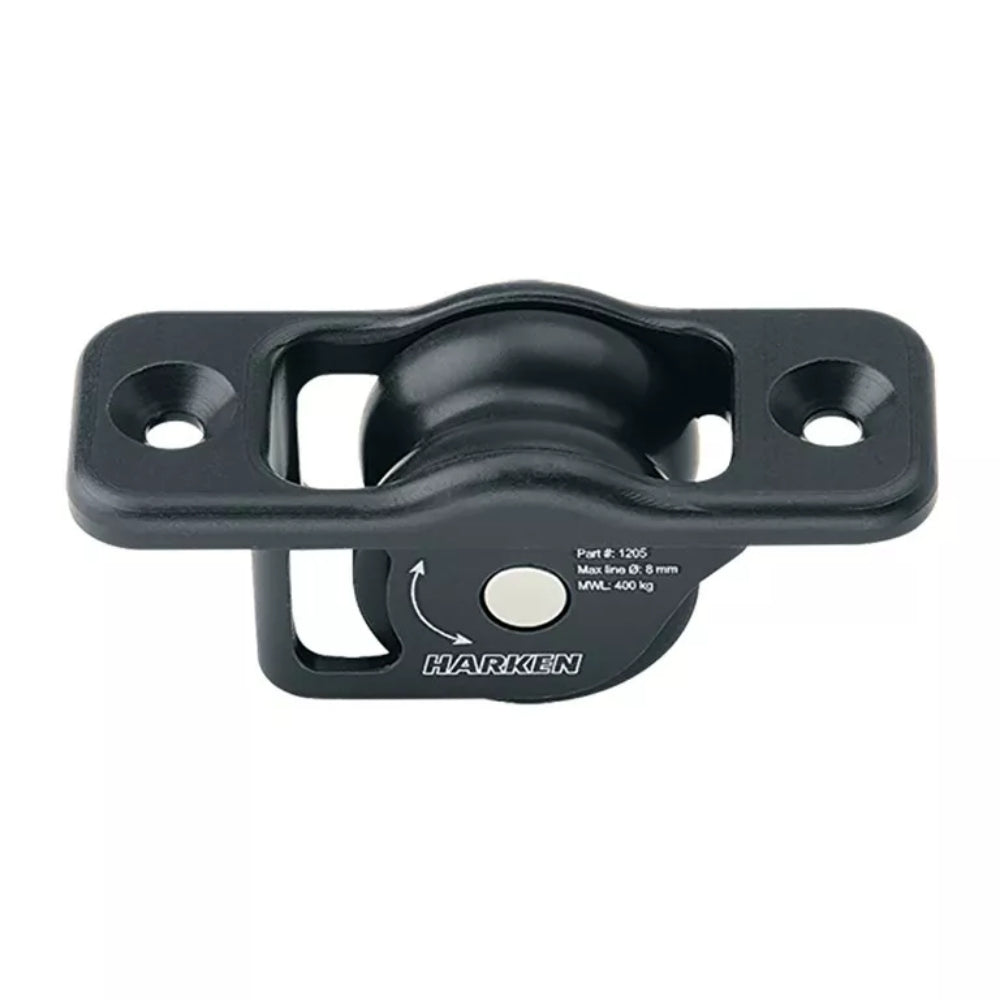

Thanks to Harken Protexit™ blocks, wear from side angle loading is not inevitable. Protexit's all-aluminum, wear-resistant housing carefully ushers line in and out no matter the angle.
There's more: Protexit blocks offer higher working loads than any small boat exit blocks we've ever made. Protexit aluminum sheaves rotate on sleeve bearings with Delrin® sideload balls so they don't deform in extreme conditions, while reducing wear on the halyard, too. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Our Part # HAR1209 | Mfr. Part # 1209
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Sheave Dia. | 2 3/8 in | 60.0 mm |
| Length | 5 1/16 in | 129.0 mm |
| Weight | 10.4 oz | 296.0 g |
| Max. Line Dia. | 1/2 in | 12.0 mm |
| Fasteners | 1/4 FH in | 6 FH mm |
| Fastener Spacing | 4 9/64 in | 10.5 cm |

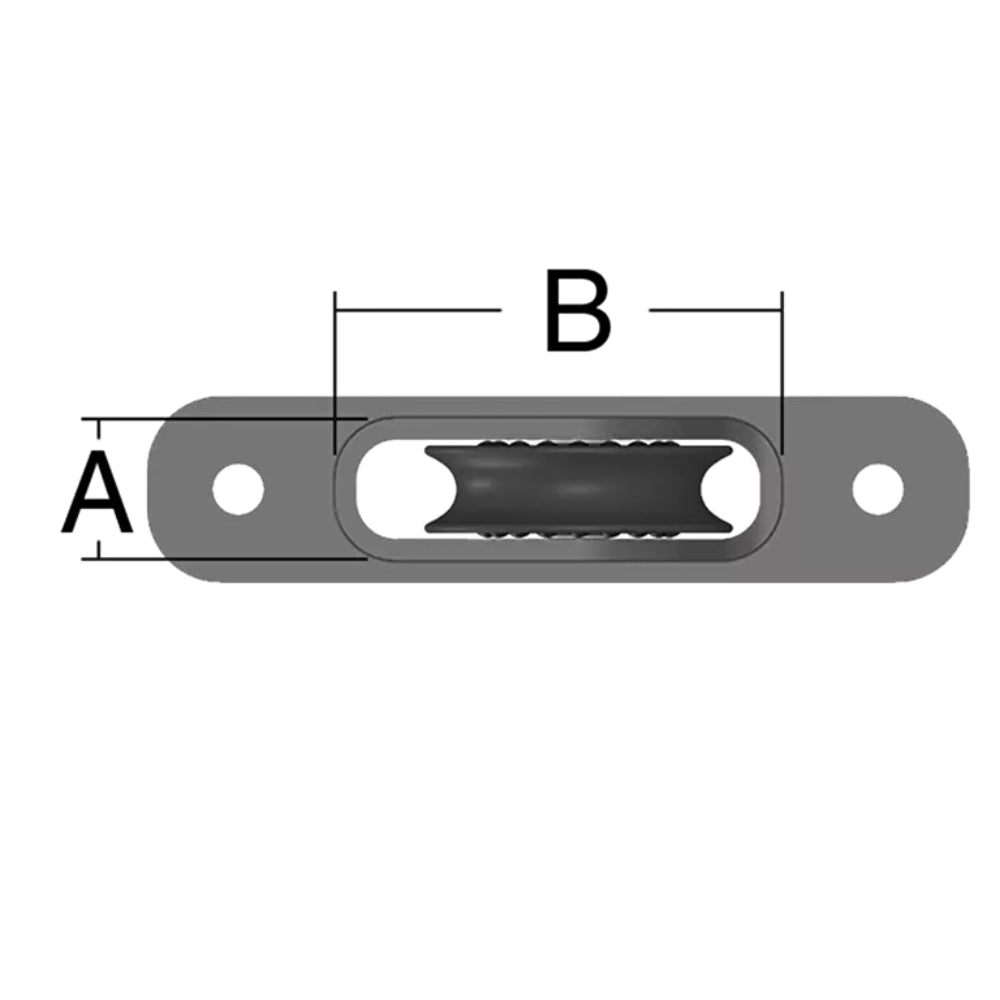

| A | 1 17/32 in | 39.0 mm |
| B | 3 5/16 in | 84.0 mm |
| Max. Working load | 2640.0 lb | 1200.0 kg |
| Breaking Load | 5292.0 lb | 2400.0 kg |
