Harken Blocks: Pick the Series, Then the Sheave, Load and Head

A Harken block is a sheave in a shell that turns a line or, in pairs, builds a purchase. This page is the index for the whole Harken block range: the blocks themselves sit in the series and type collections below. Choose the series for your boat and load, then the sheave diameter for your line, then the head style (swivel, fixed, stand-up, fiddle, cheek) and whether you need a becket or a cam cleat. Every block product page lists the sheave diameter, the maximum line size and the maximum working load.

Harken Block Series in This Range

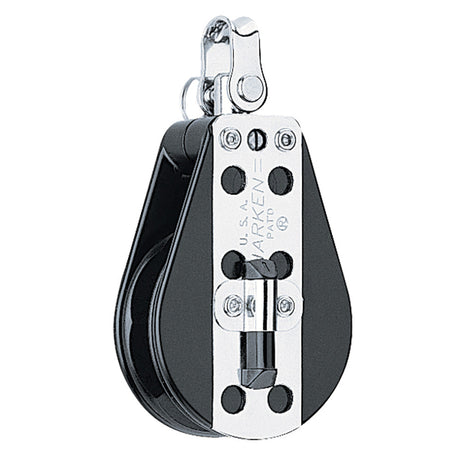

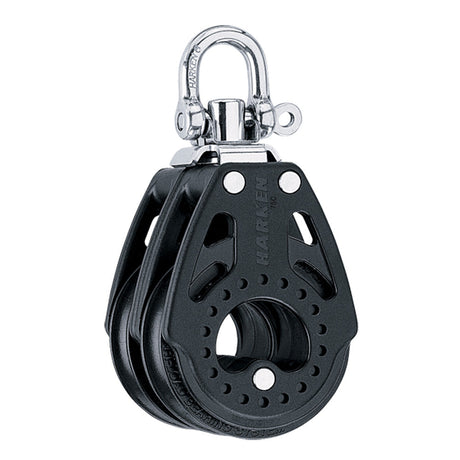

  • Carbo blocks: the largest family, in 29, 40, 57 and 75 mm sheaves, from single to five-sheave, with swivel, fixed-head, fiddle, cheek and stand-up versions, Cam-Matic and Carbo-Cam options, T2 and flip-flop versions and the Power3 Switchable blocks. The 40 mm family is rated at 220 kg maximum working load for the single swivel, 440 kg for the double and 660 kg for the triple.

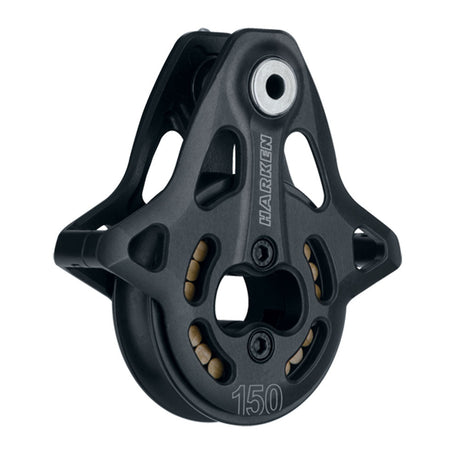

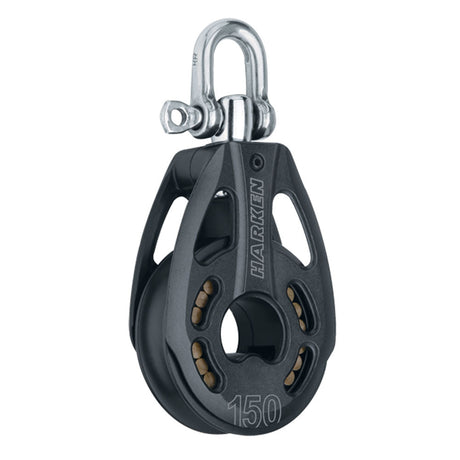

  • Black Magic blocks (big boat): aluminum blocks from 45 to 150 mm. The 75 mm single swivel uses Torlon roller bearings behind a center cage and lists a 2,268 kg maximum working load and 14 mm maximum line.

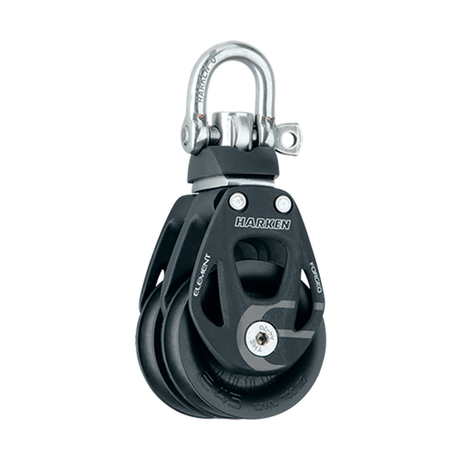

  • Element blocks: 45, 60 and 80 mm aluminum blocks with a journal bearing and composite sheave. The 60 mm single swivel lists 1,100 kg and 14 mm line.

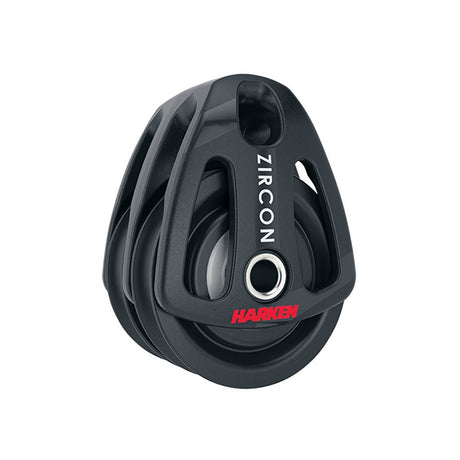

  • Zircon blocks: 40 and 57 mm single and double blocks with ceramic ball bearings, with or without becket, for example the 40 mm single.

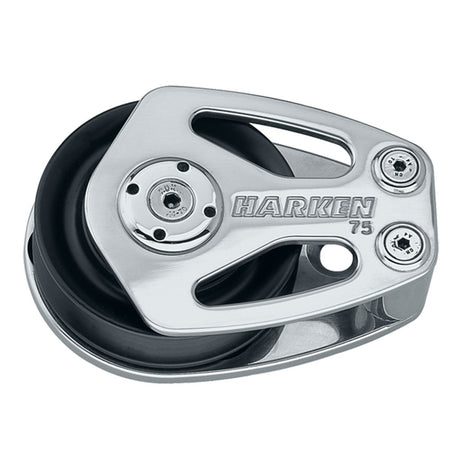

  • ESP blocks: cruising ESP swivel blocks and footblocks in 57, 75 and 100 mm, in aluminum or stainless steel, such as the 57 mm aluminum footblock.

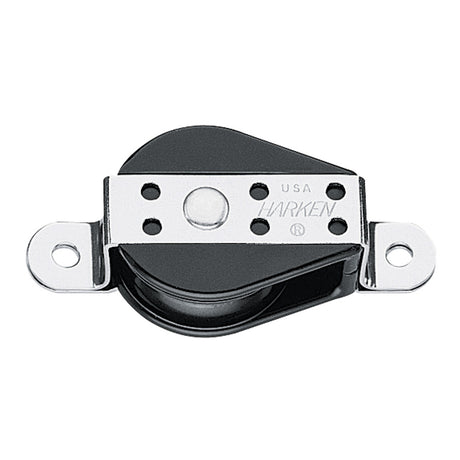

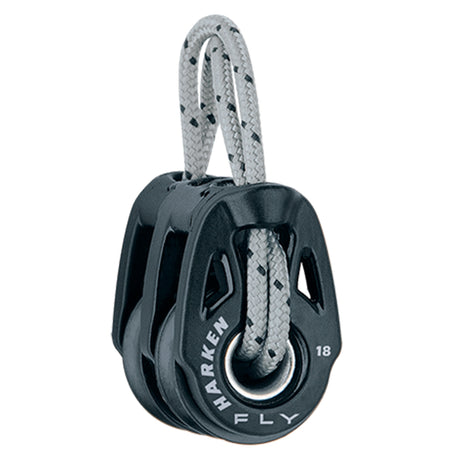

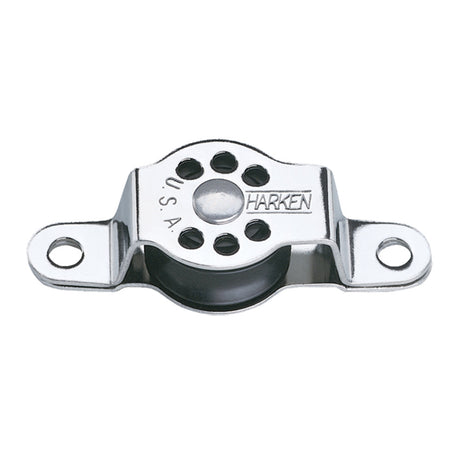

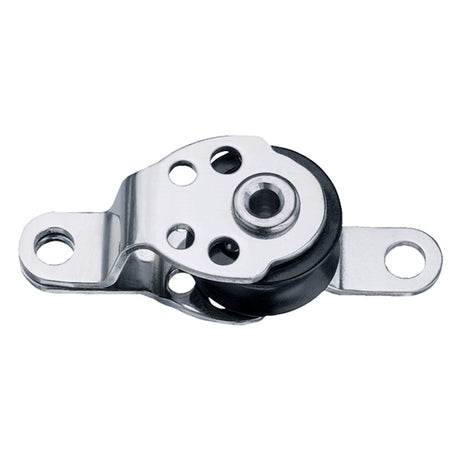

  • Bullet blocks, midrange blocks, micro blocks, 16 mm blocks and fly blocks: the smaller sizes for light controls and tight spaces: 16 mm and 18 mm blocks, 22 mm micro blocks, 29 and 38 mm Classic Bullet and Big Bullet blocks, and the 57 and 76 mm Classic blocks.

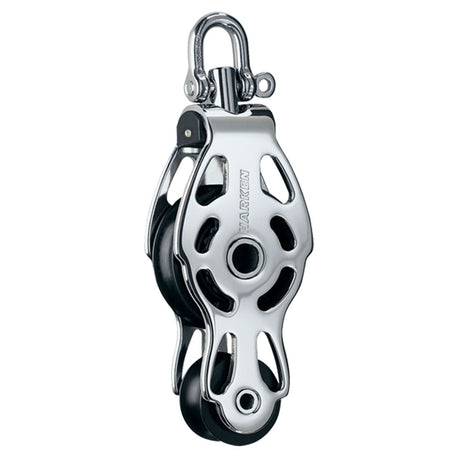

  • Mega Yacht blocks: stainless steel blocks from 75 to 175 mm for big-boat leads, such as the 125 mm single swivel.
Blocks by Job
How to Choose a Harken Block
  • Load first: product pages list both a maximum working load and a breaking load. Size the block to the working load, and remember the block nearest the load in a tackle carries the most.
  • Sheave and line: use the maximum line size on the product page rather than a fixed rule, because it differs by series: the 60 mm Element lists 14 mm line and the 60 mm Protexit lists 12 mm.
  • Bearing: Carbo blocks use ball bearings, Zircon uses ceramic ball bearings, Black Magic uses roller bearings and Element uses a journal bearing. Pick the bearing for how often the line moves under load.
  • Head and fittings: swivel heads follow a changing lead, fixed and stand-up heads suit a fixed lead, fiddle blocks stack two sheaves, and a becket gives you a place to end the standing part of a tackle.
Who It's For

Owners laying out or refitting mainsheets, vangs, travelers, halyards and runners, racers swapping to lighter blocks, and anyone replacing a worn block with the same series and size. For blocks from other brands, start at the sailboat blocks overview.

Frequently Asked Questions

Where are the individual Harken blocks on this page?
This page is the index. The blocks are in the series and type collections above, so go straight to the one that matches the job, for example Carbo for general sail control or Black Magic for big-boat loads.

What is the difference between Carbo, Element and Black Magic blocks?
Carbo is the broad composite range from 29 to 75 mm with ball bearings. Element is a 45 to 80 mm aluminum range with a journal bearing. Black Magic is the aluminum big-boat range from 45 to 150 mm; the 75 mm single swivel uses roller bearings and lists 2,268 kg.

Should I size a block to its working load or breaking load?
To the working load. Product pages list both figures, and the working load is the number to compare with the peak load at that point in your system. Our Harken block guide goes through it.

What size block do I need for my line?
Match the line diameter to the maximum line size on the specific block page. It differs by series, so two blocks with the same sheave diameter can take different line sizes.

Where are the Harken ratchet blocks?
In Harken Ratchet Blocks. Ratchet blocks hold the sheet to reduce hand fatigue, and the Carbo Power3 Switchable blocks are listed in the Carbo collection.
