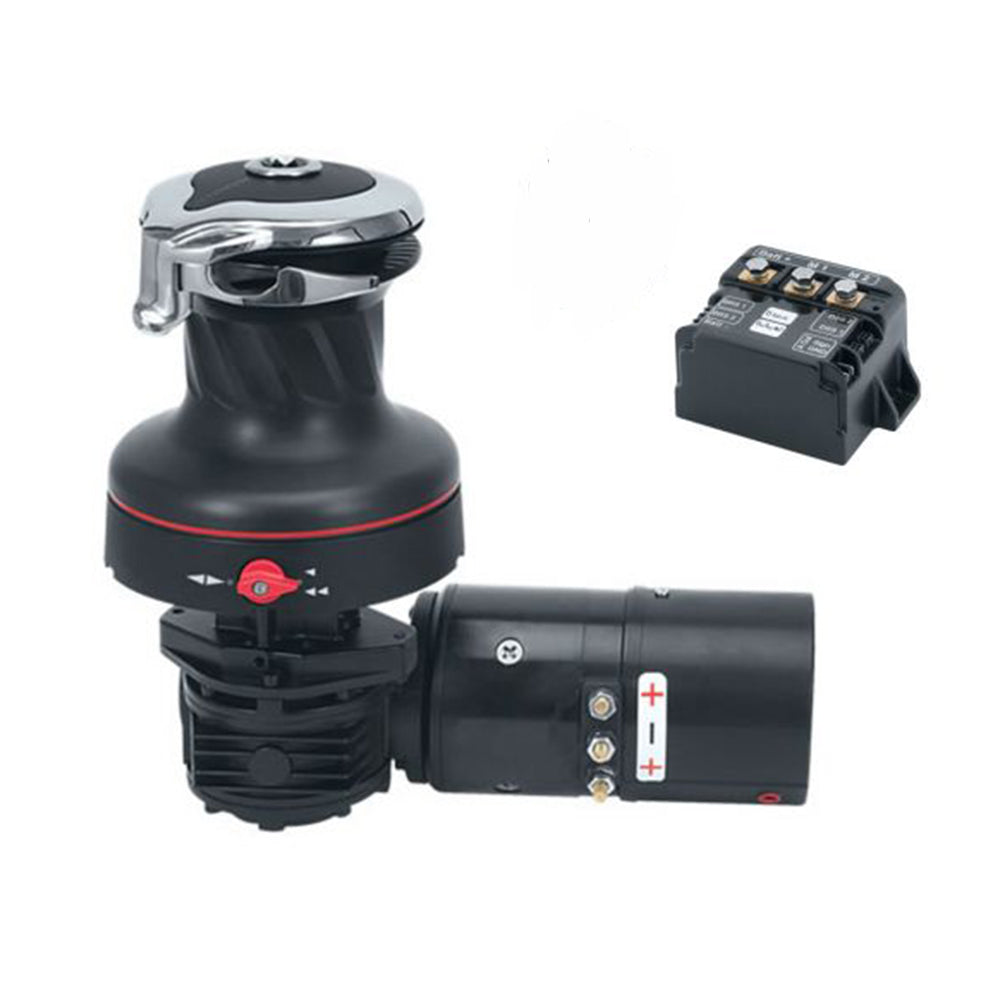

Harken Electric Winch Rewind Size 46 - 24V / Aluminum Black / Two Speed / Right Mount (46RWA24H)
Harken Electric Winch Rewind Size 46 - 24V / Aluminum Black / Two Speed / Right Mount (46RWA24H) is backordered and will ship as soon as it is back in stock.
Description
Description

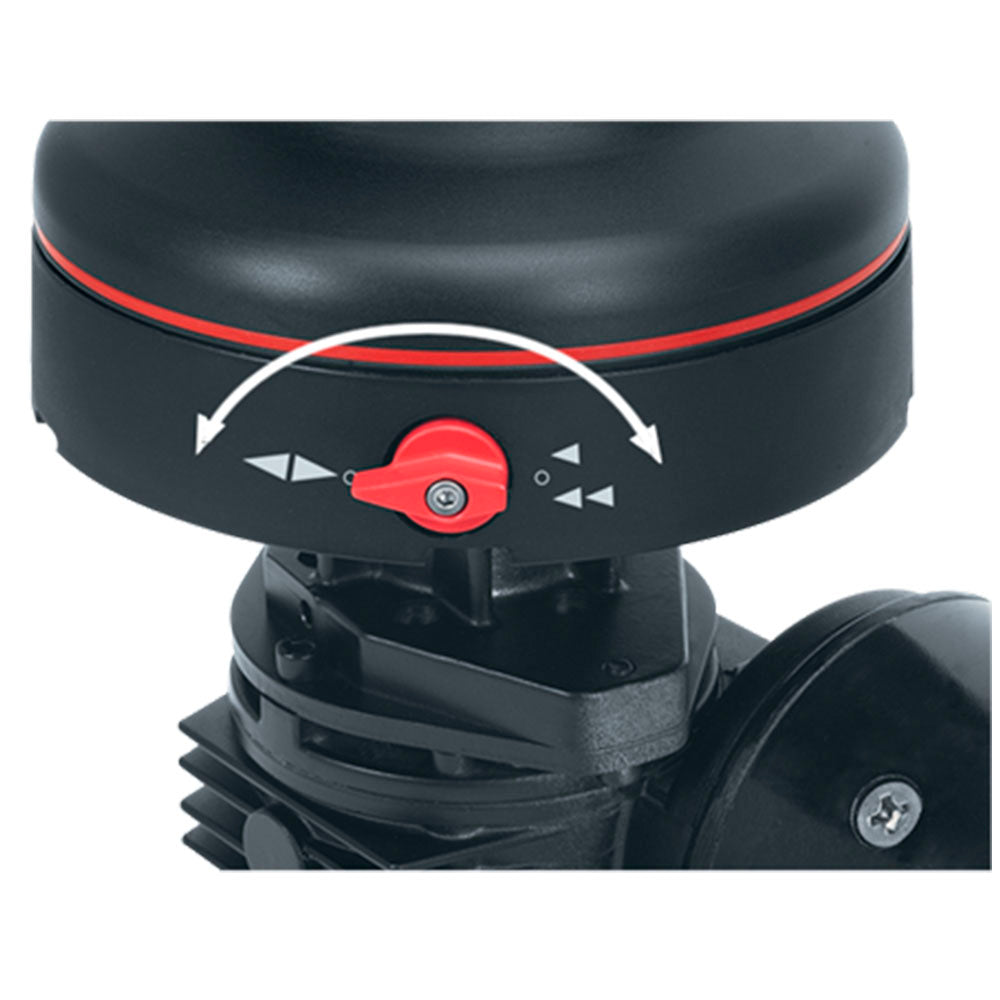

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control.
Our Part # HAR46RWA24H | Mfr. Part # 46RWA24H
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Minimum Line Ø | 3/8 in | 10 mm |
Maximum Line Ø | 9/16 in | 14 mm |
Height | 8 in | 203 mm |
Weight | 35.3 lb | 16 kg |
Number of Fasteners | 5 | |
Fasteners | 5/16 SH in | M8 SH mm |
Fastener Circle | 5 7/8 in | 15 cm |
Configuration | Self-tailing | |
Speed | 2 | |
Drum Ø | 3 7/8 in | 10 cm |
Base Ø | 7 1/4 in | 18 cm |
Line Entry Height | 3 9/16 in | 90 mm |
Gear Ratio - 1 | 2.3 | |
Gear Ratio - 2 | 9.2 | |
Power Ratio - 1 | 11.7 | |
Power Ratio - 2 | 46.5 | |
E | 1 3/4 in | 43 mm |
F | 6 1/8 in | 155 mm |
G | 11 in | 280 mm |
