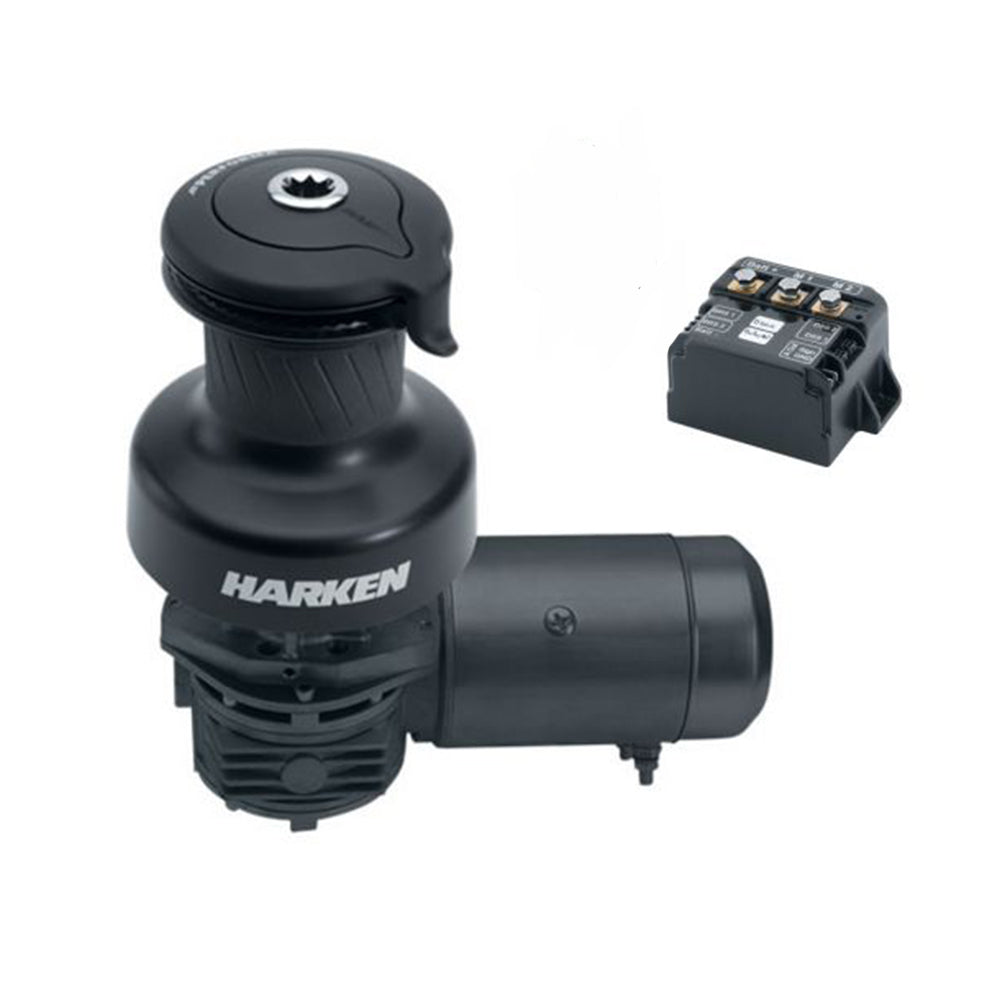

Harken Electric Winch Performa Size 70 - 12V / Aluminum Black / Three Speed / Right Mount (70.3STEP24H)

SKU: HAR703STEP24H  |  Manuf. Code: 70.3STEP24H
List Price:  18042.00 USD
$15,336.25 USD
You Save $2706 This Week!

Description

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Electric Performa winches let you trim any size sail with the push of a button.

Our Part # HAR703STEP24H | Mfr. Part # 70.3STEP24H

Technical Information

DescriptionImperialMetric
ConfigurationSelf-tailing
Speed3
Drum Diameter5 1/8 in13 cm
Base Diameter9 7/16 in24 cm
Height13/8 in264 mm
Weight28.3 lb12.8 kg
Line Entry Height4 1/2 in12 cm
Minimum Line Diameter3/8 in10 mm
Maximum Line Diameter5/8 in16 mm
Fastener Circle8 1/8 in21 cm
Number of Fasteners6
Fasteners5/16 SH inM8 SH mm
Gear Ratio - 12.3
Gear Ratio - 25.7
Gear Ratio - 318.5
Power Ratio - 19
Power Ratio - 222.2
Power Ratio - 372
E2 3/4 in69 mm
F7 1/8 in181 mm
G9 5/8 in244 mm
