Harken Electric Winch Unipower Size 900 - 24V / Aluminum Black / One Speed / Vertical Mount (900UPWA24)
Harken Electric Winch Unipower Size 900 - 24V / Aluminum Black / One Speed / Vertical Mount (900UPWA24) is backordered and will ship as soon as it is back in stock.
Description
Description

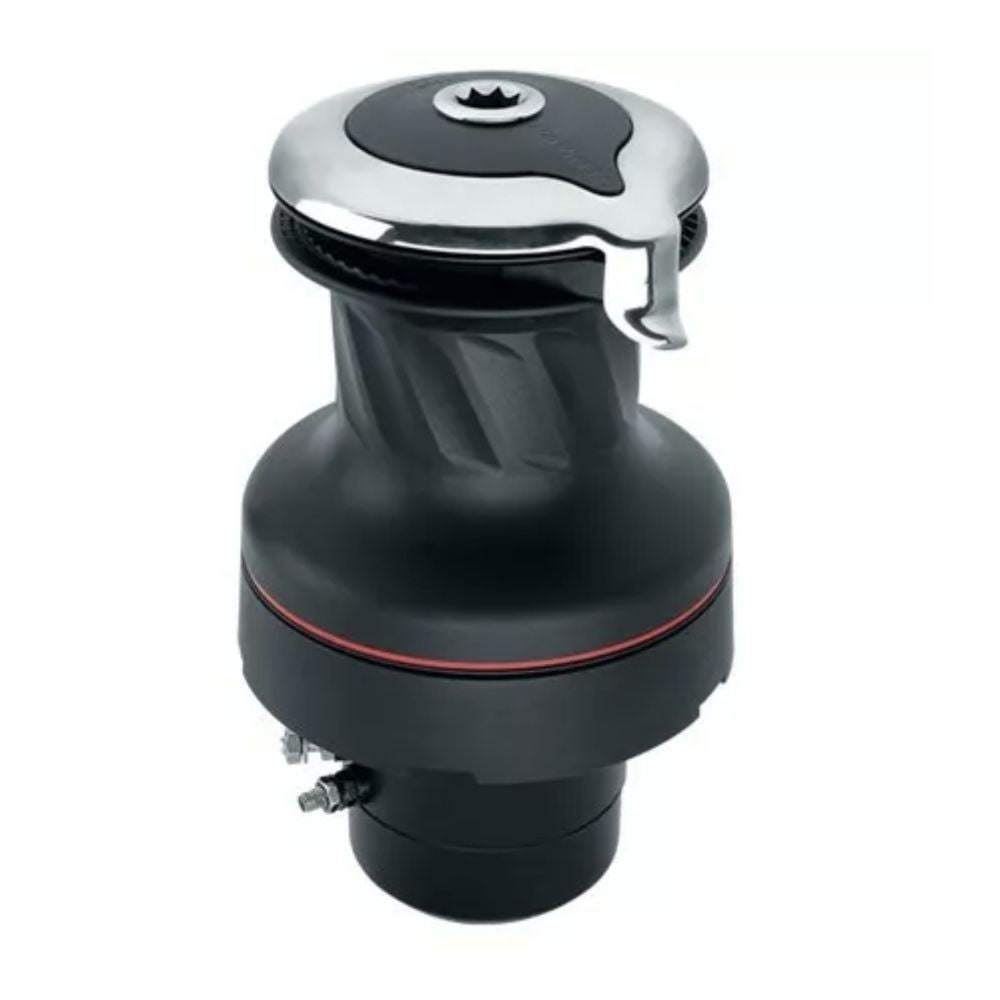

The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12 or 24 volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base - a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and dont require lubrication. Gears are 17-4PH stainless steel for strength and durability. Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.
Our Part # HAR900UPWA24 | Mfr. Part # 900UPWA24
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Height | 8 1/2 in | 21.5 cm |
Weight | 26.5 lb | 12.0 kg |
Maximum line dia. | 9/16 in | 14.0 mm |
Fasteners | 5/16 SH in | M8 SH mm |
Number of fasteners | 5 | |
Fastener circle | 6 5/16 in | 16.0 cm |
Minimum line dia. | 5/16 in | 8.0 mm |
E | 1 3/8 in | 35.0 mm |
F | 4 1/8 in | 10.5 cm |
G | 5 1/2 in | 14.0 cm |
Material | Aluminum | |
Base dia. | 7 1/2 in | 19.0 cm |
Available power | Electric vertical 24V | |
Maximum pulling load | 1984.0 lb | 900.0 kg |
Configuration | Self-tailing | |
Speed | 1 | |
Drum dia. | 4 3/8 in | 11.0 cm |
Line entry height upper | 3 15/16 in | 10.0 cm |
Voltage | 24 |
