Harken Electric Winch Unipower Size 900 - 24V / Chrome / One Speed / Vertical Mount (900UPWC24)
Harken Electric Winch Unipower Size 900 - 24V / Chrome / One Speed / Vertical Mount (900UPWC24) is backordered and will ship as soon as it is back in stock.
Description
Description

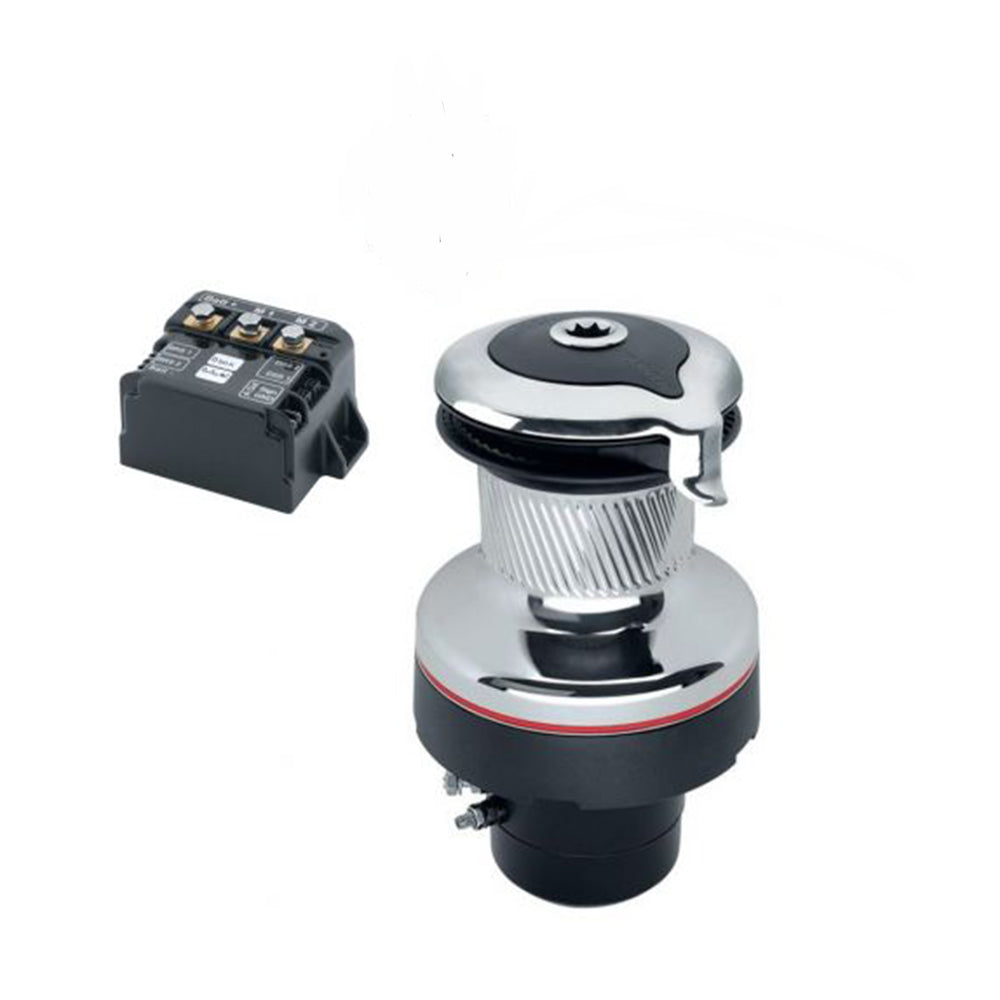

The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base - a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and don't require lubrication.
Gears are 17-4PH stainless steel for strength and durability.
Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.
Our Part # HAR900UPWC24 | Mfr. Part # 900UPWC24
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Material | Chrome | |
Weight | 1984 lb | 900 kg |
Maximum Line Ø | 9/16 in | 14 mm |
Fasteners | 5/16 SH in | 8 SH mm |
Fastener Circle | 6 5/16 in | 160 mm |
Height | 8 1/2 in | 215 mm |
Configuration | Self-tailing | |
Speed | 1 | |
Drum Ø | 4 3/8 in | 110 mm |
Base Ø | 7 1/2 in | 190 mm |
Line Entry Height | 3 15/16 in | 10 cm |
Minimum Line Ø | 5/16 in | 8 mm |
Number of Fasteners | 5 | |
Gear Ratio - 1 | 1 | |
Maximum Pulling Load | 1984 lb | 900 kg |
E | 1 3/8 in | 35 mm |
F | 4 1/8 in | 11 cm |
G | 5 1/2 in | 140 mm |
