DESCRIPTION

Highly accurate 10Hz GPS antenna for dependable, precise positioning. Includes a heading, heel and trim sensor for expanded use.

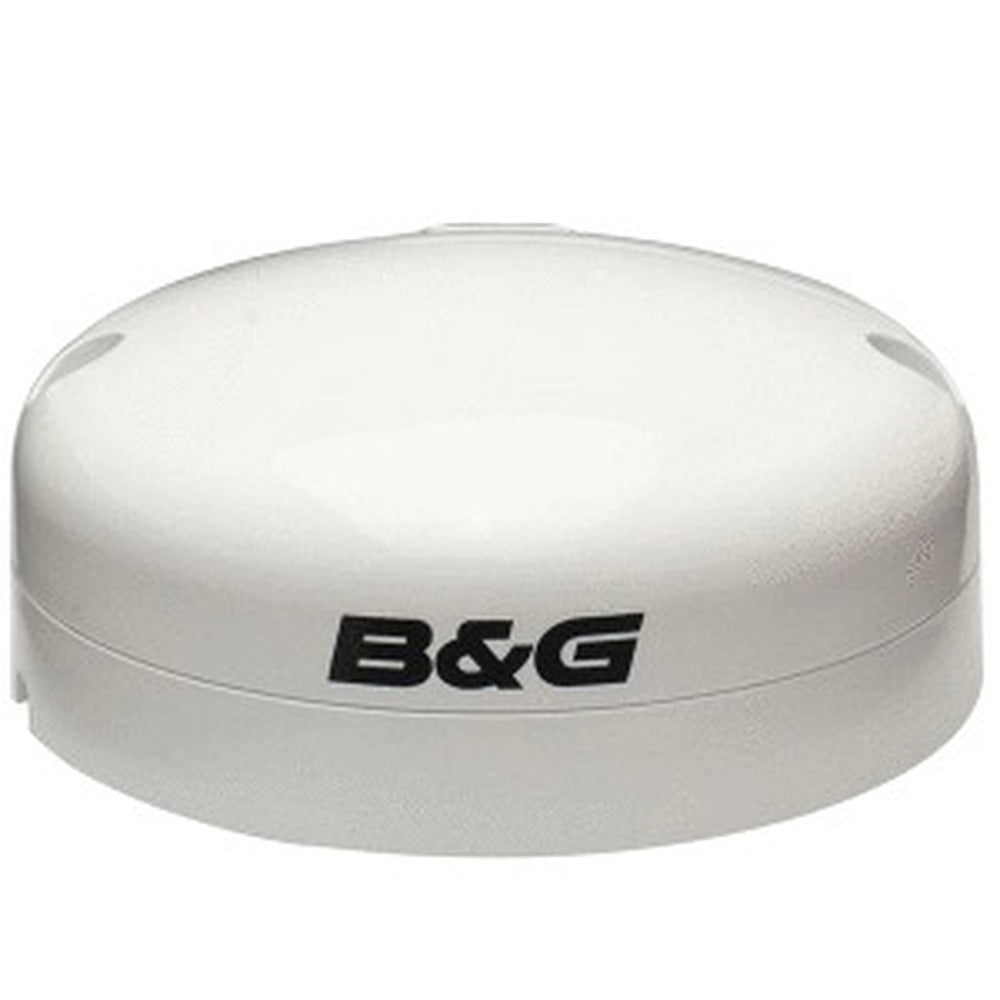

The B&G ZG100 GPS antenna provides precise and dependable position data making it the perfect partner for B&G chartplotters and instrument systems.

The highly accurate 10 Hz GPS gives precise and smooth update of position information during acceleration and manoeuvring, rapid signal acquisition and consistent position accuracy augmented by secondary satellite systems like WAAS, EGNOS, MSAS and Galileo. It is also QZSS-ready.

The integrated compass delivers accurate heading information for instruments, chart stabilisation for Head Up mode and Radar overlays. It also provides Heel and Trim data for sailing.

Please note this product is not suitable for use with MARPA or B&G Pilot systems; this requires a rate compass such as the Precision-9, RC42 or Halcyon Gyro-Stabilised Compass.

What's in the box?

  • N2K-T-RD Network T-Connector
  • NMEA 2000 6ft Network Extension Cable

Our Part # bng-000-11048-002 | Mfr. Part # 000-11048-002

FEATURES

  • Highly accurate position
  • 10Hz update rate
  • Sail Specific COG/SOG filtering for optimum performance
  • GPS/Galileo support
  • Augmented with WAAS, EGNOS and more
  • Integrated heading sensor
  • Heel & Trim sensors
  • Compact, waterproof (IP67) design
  • NMEA 2000®

TECHNICAL INFORMATION

DescriptionValue
Connectivity
NMEA 2000 Connectivity1x NMEA 2000 Micro-C port, 2 LEN
Approvals
Approvals ComplianceCE under RED 2014/53/EU Directive
Electrical
Power Consumption max2 W
Power Consumption typical< 2 W
Supply Voltage9 V DC - 18 V DC
Environment
Humidity40ºC, 93% RH, operating
Operating Temperature Range-25°C to 60°C (-13°F to 140°F)
Storage Temperature Range-40 to + 85ºC (-40 to + 185ºF)
WaterproofratingIPX7
GPS
CorrectionDGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo
GPS Receiver Channels32 Channels
Position Accuracy3m (9.8 ft)
Time to First Fix3s (Cold Start 50s)
Update rateUp to 10 Hz (1,5,10)
HeadingSensors
Heading Sensor Accuracy+/- 3º Heading, +/- 1º Roll/Pitch @ 30º
Heading Sensor Data AvailableMagnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
Heading Sensor Data ProtocolNMEA 2000
Sensor TypeSolid state
Physical
Compass Safe0.5 m (20")
Mounting TypeFlush mount / Standard Pole Mount
Weight0.14 kg (0.3 lbs)
Other
Warranty Period2 Years
