DESCRIPTION
DESCRIPTION
What's in the box?

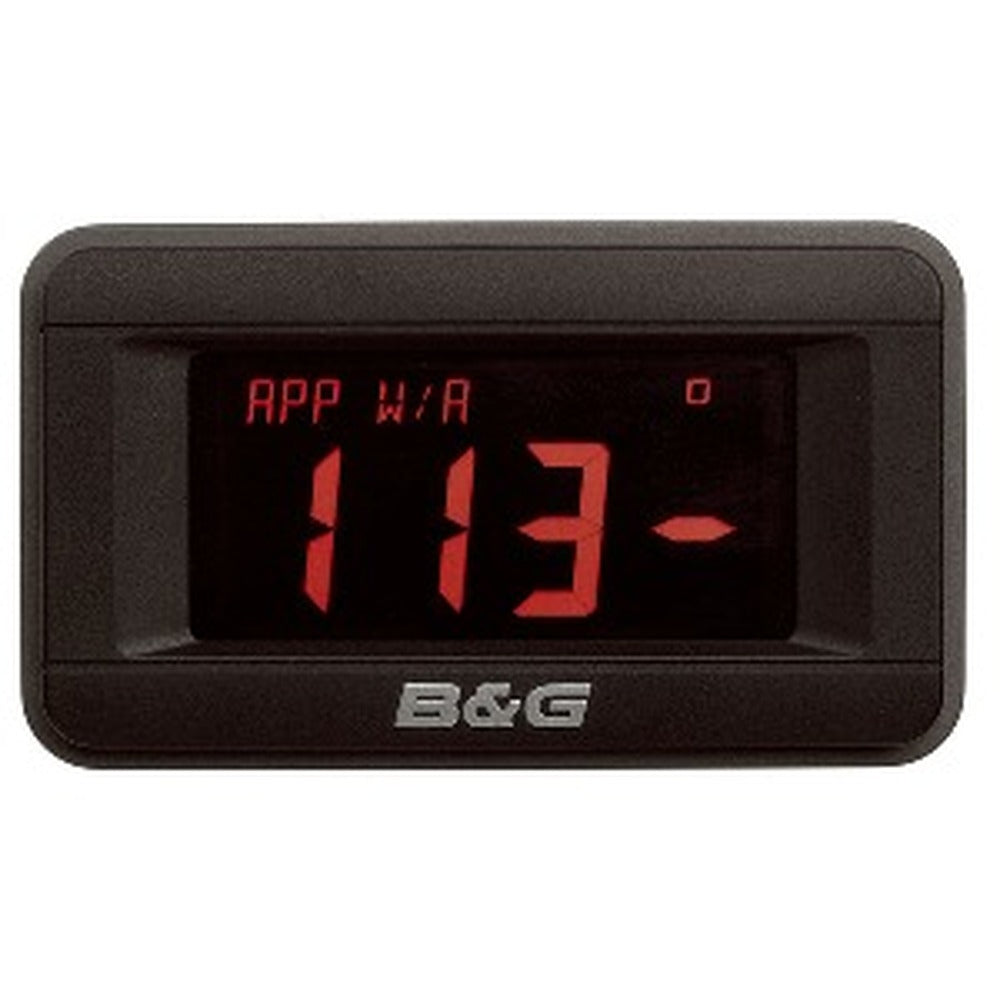

- 10/10 HV Bezel (black)
- 10/10 HV Sun Cover
Our Part # bng-000-11087-001 | Mfr. Part # 000-11087-001
FEATURES
FEATURES
- Race Proven H-Vision Technology
- High-Contrast Optically Bonded LCD
- Robust, lightweight ABS construction
- Inverse "white on black" display
- Red or White night lighting
- Configurable from H5000 or Triton Instrument systems
- Zero condensation
- Extremely low power consumption
- Fast, responsive display
- Single network cable supplies data and power
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Value |
|---|---|
| Display | |
| Backlight Color | Red, White |
| Connectivity | |
| NMEA 2000 Connectivity | 1 x NMEA2000 Micro-C port, 2 LEN |
| Approvals | |
| Approvals Compliance | IEC/EN 60945 |
| Electrical | |
| Power Consumption max | 1.0W |
| Power Consumption typical | 0.5W |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12V DC (10-16V DC) |
| Environment | |
| Humidity | Up to 95% RH |
| Operating Temperature Range | -10 to +55ºC (+14 to 131ºF) |
| Waterproofrating | IP67 |
| Physical | |
| Compass Safe | 200mm (7.9") |
| Dimensions W x H x D | 114 x 66 x 55mm (4.4 x 2.5 x 2.1") |
| Mounting Type | Flush |
| Weight | 0.3 kg (0.6 lbs) |
| Other | |
| Languages | English, German, Spanish, French, Italian |
| Warranty Period | 2 Years |
