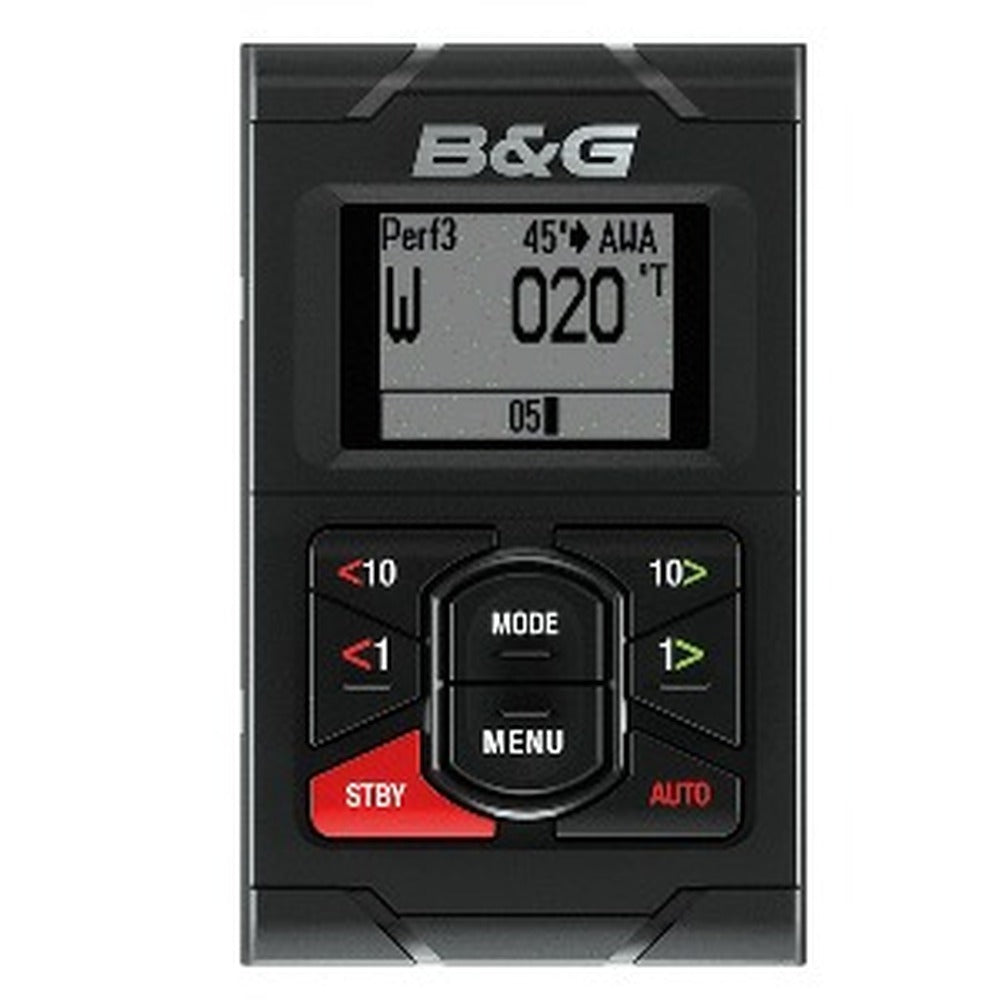

B&G H5000 Pilot Controller

Name: B&G H5000 Pilot Controller
Brand: B&G
SKU: bng-000-11544-001
Price: 686.0 USD
Availability: InStock

SKU: bng-000-11544-001 | Manuf. Code: 000-11544-001

$686.00 USD

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

Provides secure autopilot control and setup from its dedicated keypad. As the primary Pilot controller, or as a second station to a Zeus chartplotter, the Pilot Controller provides assured control and feedback via its high-resolution display.

What's in the box?

N2K-T-RD Network T-Connector

Our Part # bng-000-11544-001 | Mfr. Part # 000-11544-001

FEATURES

Dedicated Pilot control: Developed to complement the H5000 Pilot Computer, this Controller manages every function of this powerful and trusted tool – from commissioning to control
Glass-bonded monochrome display: The bonded glass LCD display is tough, waterproof and condensation-resistant in the most testing environments with high-resolution monochrome screen, with wide viewing angle, for optimum readability and clear presentation of Pilot data in all light conditions.
Straightforward interface: The controller’s dedicated keypad and intuitive operation makes commissioning and control of the Pilot straightforward, flexible and convenient.
Waterproof to IPX7

TECHNICAL INFORMATION

Description	Value
Display
Backlight Color	White
Display Resolution	128 x 64
Viewing Angles	6 o'clock
Connectivity
NMEA 2000 Connectivity	1x CAN Micro-C port, 3 LEN
Autopilot
Engine Drive systems integration	n/a
Steering Modes	Non Follow Up (NFU), Auto, NoDrift, Wind, Nav
Electrical
Power Consumption max	130mA (from CAN)
Power Consumption typical	100mA (from CAN)
Supply Voltage	12-16V via CAN
Environment
Operating Temperature Range	10C to +55C (+32F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)
Waterproofrating	IPx7
Physical
Compass Safe	0,3m (11,8")
Dimensions W x H x D	70 x 114 x 41mm (2,76 x 4,49 x 1,61")
Mounting Type	Flush
Weight	0,18kg (0,4 lbs)
Other
Interface	Keypad
Languages	English, German, French, Spanish, Italian, Dutch, Swedish, Norwegian
Warranty Period	2 years
