Zeus® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP® charting options for the safest and easiest navigation.

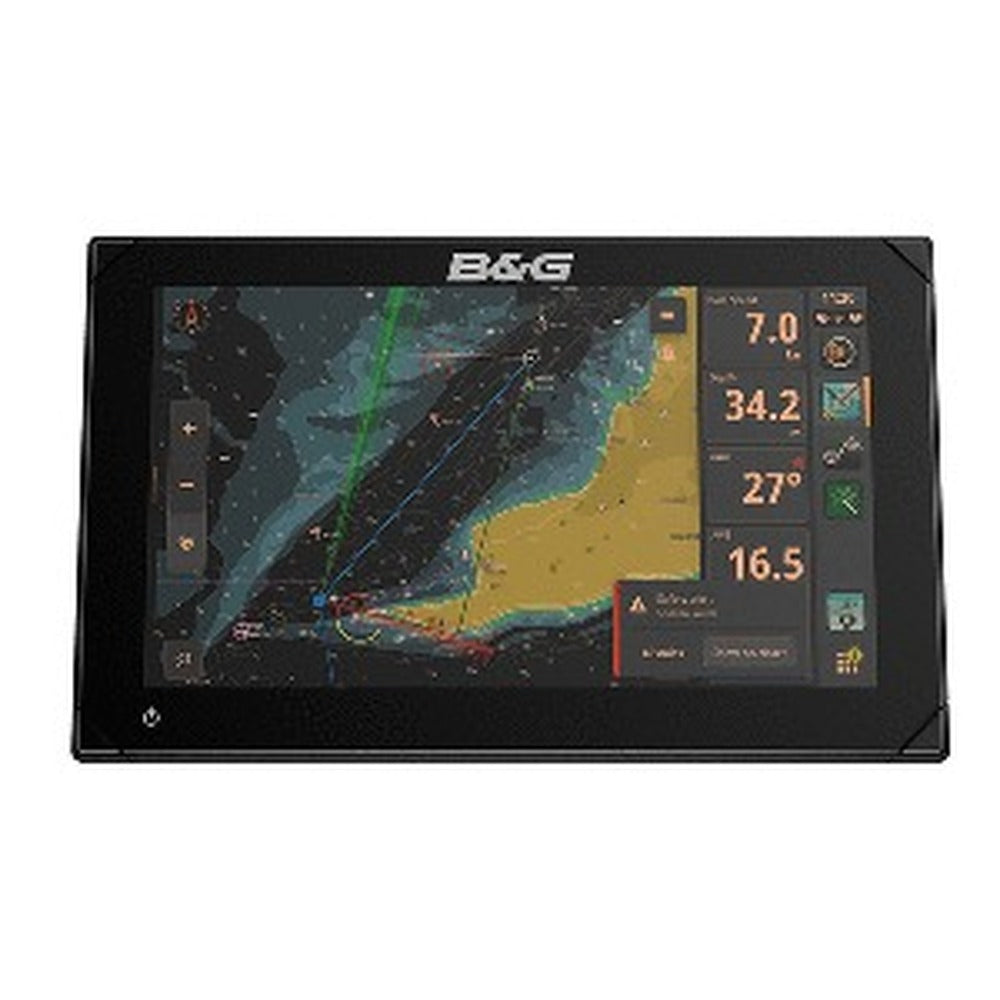

Zeus® S
Intuitive and easy-to-use Chartplotter
Zeus® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP® charting options for the safest and easiest navigation.
Sailing Modes
Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more.
C-MAP® powered Safety Alerts guard against grounding and dangerous objects.
Sailing Modes
Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more.
C-MAP® powered Safety Alerts guard against grounding and dangerous objects.
Mapping
C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.
Mapping
C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.
A
Integration
Zeus® S is designed to be the heart of your sailing system. With built-in Wi-Fi®, Ethernet, and NMEA 2000®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass.
Connecting with the B&G App offers further control and navigation options, both on and off the boat.
Integration
Zeus® S is designed to be the heart of your sailing system. With built-in Wi-Fi®, Ethernet, and NMEA 2000®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass.
Connecting with the B&G App offers further control and navigation options, both on and off the boat.
Intuitive
Zeus® S makes data easy to read, and even easier to digest. The interface is designed to feel familiar – with a new Setup Wizard to get you started, and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-the-water trip planning, and the same clear, accurate chart displays across your Zeus S, App and Web.
What's in the box?
- DISCOVER X - NORTH AMERICA
Our Part # bng-000-15220-001 | Mfr. Part # 000-15220-001
FEATURES
FEATURES
- Sailing Modes for Cruising and Racing, providing exactly the data you need for your situation.
- NEW C-MAP-powered Safety Alerts feature, to avoid shallow water and dangerous objects on a collision course
- Includes B&G’s award-winning sailing features, as well as unique new updates to Laylines, Routes, SailSteer™ and StartLine
- C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with intuitive viewing options for easy navigation
- High definition SolarMAX™ IPS touch screen, viewable from all angles and in all conditions, even with polarised sunglasses
- Full integration with HALO® Radars, Triton™2 Pilots, Triton™2 and Nemesis® instruments, sensors and more
- Set-up Wizard to get you up and running quickly
- B&G® App integration - access data and charting both on and off the water*
- Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
- IP Video camera support
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Value |
|---|---|
| Display | |
| Backlight Color | White |
| Display Resolution | 1280 x 800 |
| Display Size | 9 inches |
| Screen Brightness | 1200 nits |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Connectivity | |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
| Ethernet Ports | 1 port (5-pin yellow connector) |
| Connectivity Wi Fi | IEEE 802.11b/g/n |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| SD Card Storage | 1 MicroSD slot, 1 x USB (A) |
| Video | IP Camera support |
| Cartography | |
| Charts Supported | C-MAP Tile (CMT) Discover X, Reveal X |
| Autopilot | |
| Steering Modes | Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav |
| Electrical | |
| Power Consumption max | 29.7 W |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12 V DC (10 - 17 V DC) |
| Environment | |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproofrating | IPx6 and IPx7 |
| GPS | |
| Correction | 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10Hz |
| MFD | |
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC3, NAC-D, H5000 compatible |
| Cartography included | Discover X chart card of North America |
| Digital Switching | Czone |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| Sonar Compatibility | One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points. |
| Physical | |
| Compass Safe | 50 cm (1.7 ft) |
| Dimensions W x H x D | 239 x 149 x 73mm (9.4 x 5.9 x 2.9") |
| Mounting Type | Bracket (supplied), panel mount or flush mount |
| Weight | 2.2 kg (4.9 lbs) |
| Other | |
| Interface | Multi-touch screen |
| Languages | English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish |
| Warranty Period | 2 Years |
