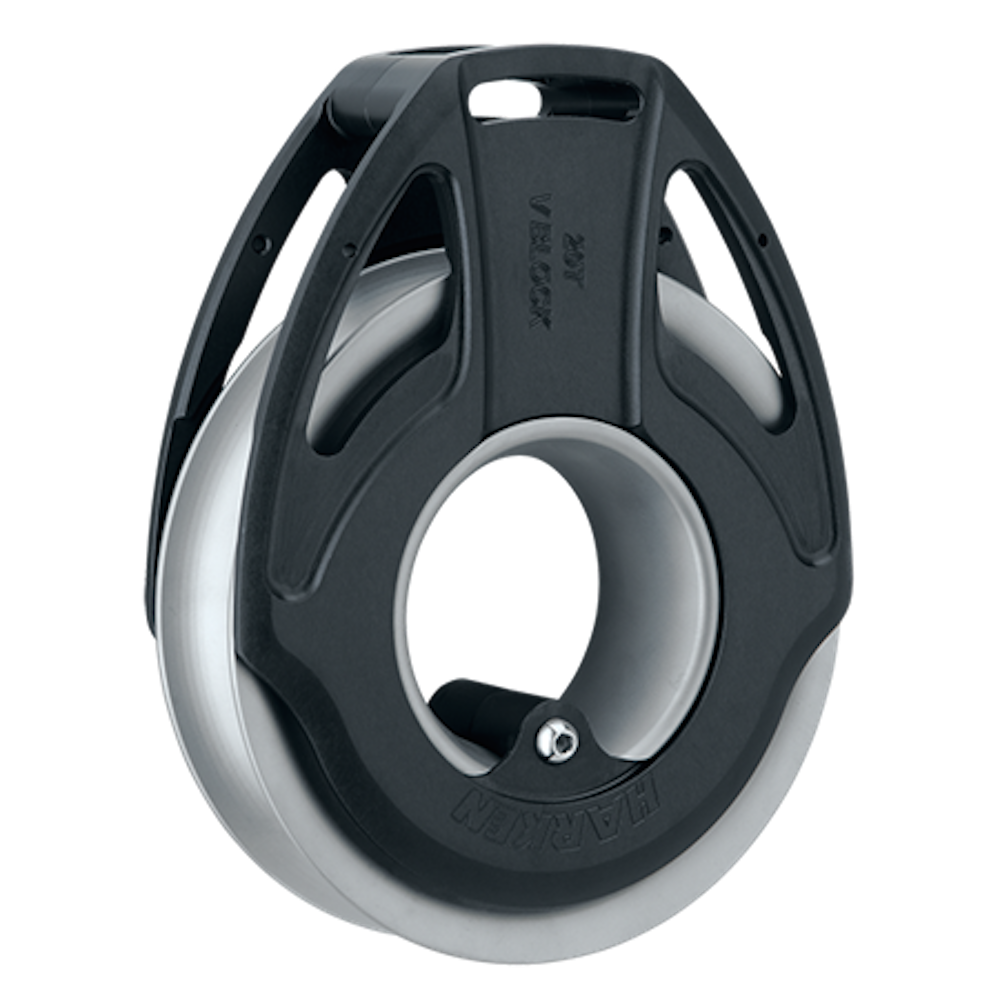

Harken Block - V Block 155mm - Loop (Aluminum) (3372AL)

SKU: HAR3372AL  |  Manuf. Code: 3372AL
$9,309.10 USD

Description

The V block delivers another breakthrough in Harken's loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks are standard with 3D-molded carbon sideplates, titanium sheave, and captive titanium roller bearings. Sideplates are also available in anodized aluminum. V blocks are easy to disassemble for inspection and maintenance.

Our Part # HAR3372AL | Mfr. Part # 3372AL

Technical Information

DescriptionImperialMetric
Sheave Ø6 1/9 in15.5 cm
Max line Ø1 3/16 in30.0 mm
Mouth Ø2 1/2 in64.0 mm
Maximum working load44000.0 lb20000.0 kg
Breaking load88000.0 lb40000.0 kg
