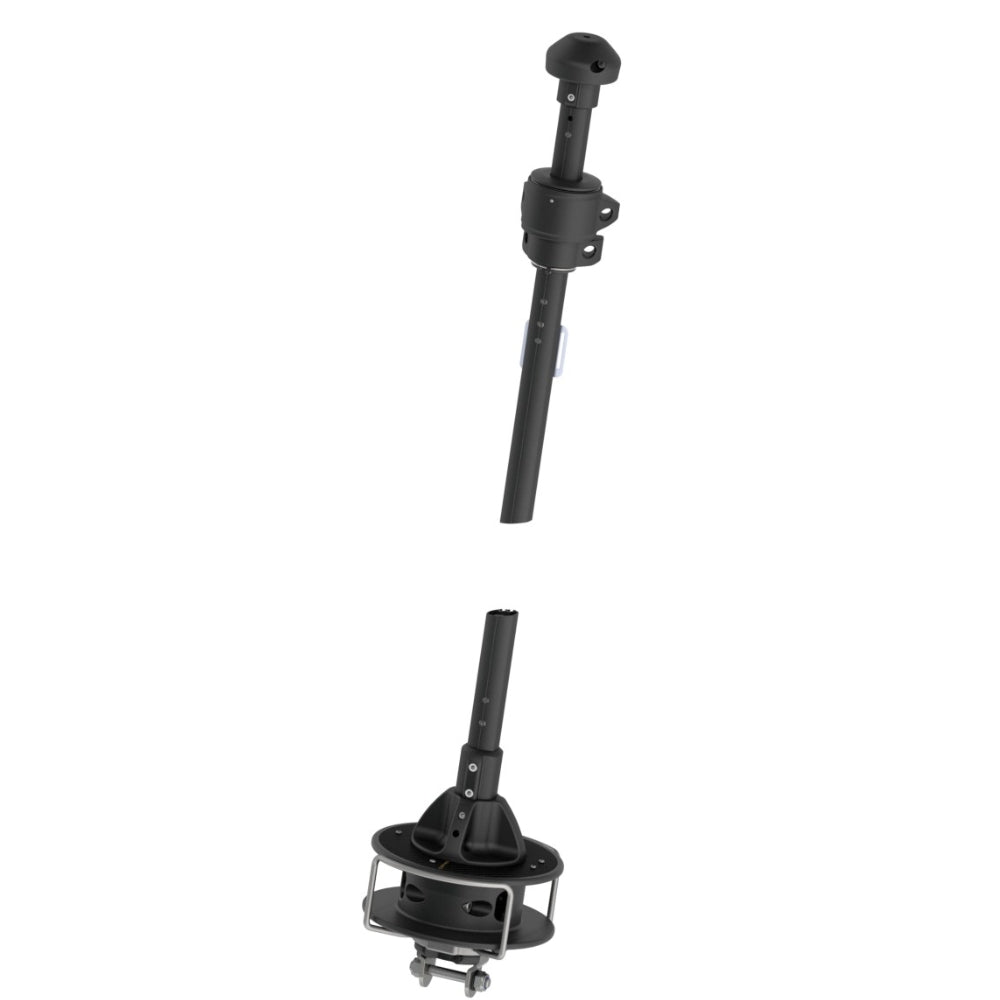

Karver Furlers - KRS45 Reefing Furler - Boat Size: 50.0 - 66.0 ft (16.0 - 20.0 m) (PF333450)
Karver Furlers - KRS45 Reefing Furler - Boat Size: 50.0 - 66.0 ft (16.0 - 20.0 m) (PF333450) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Karver Furlers - KRS45 Reefing Furler - Boat Size: 50.0 - 66.0 ft (...
Description
Description
The KRS45 is a manual reefing furler dedicated to all sailboats from 50 to 66 feet (16 to 20 meters) equipped with sails from 100 to 150m ². The KRS45 accepts props from 14 mm to 20 mm.
It is delivered by default with 18 m of profiles (9 x 2m), short plates and a à 18 mm chainplate pin.
The reefing furler by Karver is an aesthetic eco-designed reefing furler, very robust, easy to install and use. It is a reefing furler with all options (elliptical profiles, double rope, removable drum, etc.) for a competitive price.
Our Part # KARPF333450 | Mfr. Part #
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sailboat Length | 52.50 to 65.60 ft. | 16.00 to 20.00 m. |
| Sail Area | 1614.59 ft² | 150.00 m² |
| Max Forestay Diameter without Removable End Fitting | 1/2 in. | 13.00 mm. |
| Forestay Diameter with Removable End Fitting | 9/16 in. | 14.00 mm. |
| Available Lower Pin Diameter | 7/8, 1.00, 1 1/8 in. | 22.00, 25.00, 28.00 mm. |
| Joiner Bearing Max Space | 5/8 to 13/16 in. | 16.00 to 20.50 mm. |
| Width Between Plates | 2 3/8 in. | 61.00 mm. |
| Drum Diameter | 12 5/8 in. | 320.00 mm. |
| Foil Model | KP54 | |
| Foil External Diameter | 2 1/16 in. | 53.00 mm. |
| Foil Weight | 2.91 lbs. | 1.32 kg. |
| Delivered Foil Length | 61.80 ft. | 18.85 m. |
| Luff Line Diameter | 1/4 in. | 6.00 mm. |
