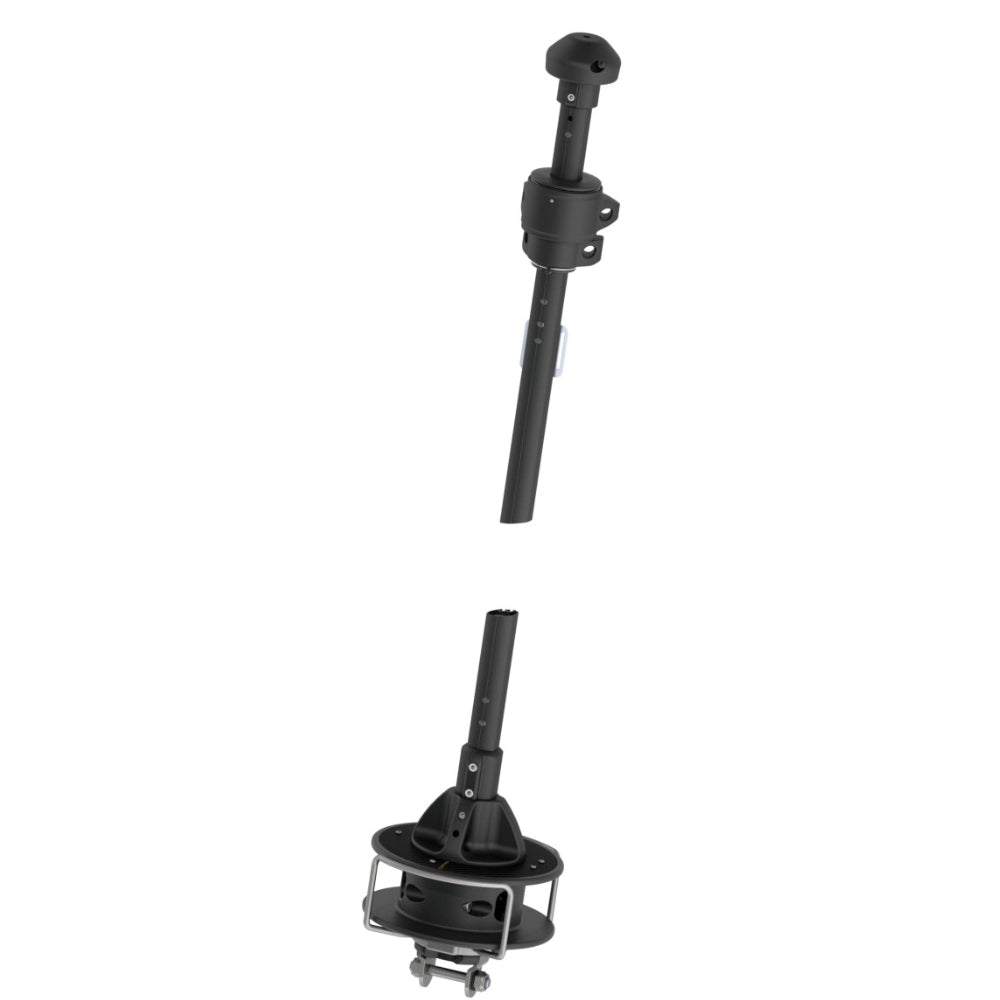

Karver Furlers - KRS50 Reefing Furler - Boat Size: 60.0 - 80.0 ft (20.0 - 26.0 m) (PF333500)
Karver Furlers - KRS50 Reefing Furler - Boat Size: 60.0 - 80.0 ft (20.0 - 26.0 m) (PF333500) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Karver Furlers - KRS50 Reefing Furler - Boat Size: 60.0 - 80.0 ft (...
Description
Description
The KRS50 is a manual reefing furler dedicated to all sailboats from 60 to 80 feet (20 to 26 meters) equipped with sails from 150 to 220m ². The KRS50 accepts props from 14 mm to 20 mm.
It is delivered by default with 20 m of profiles (10 x 2m), short plates and a à 22 mm chainplate pin.
The reefing furler by Karver is an aesthetic eco-designed reefing furler, very robust, easy to install and use. It is a reefing furler with all options (elliptical profiles, double rope, removable drum, etc.) for a competitive price.
Our Part # KARPF333500 | Mfr. Part #
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Sailboat Length | 65.60 to 85.30 ft. | 20.00 to 26.00 m. |
| Sail Area | 2368.06 ft² | 220.00 m² |
| Max Forestay Diameter without Removable End Fitting | 9/16 in. | 14.00 mm. |
| Forestay Diameter with Removable End Fitting | 9/16 in. | 14.00 mm. |
| Available Lower Pin Diameter | 1.00, 1 1/4, 1 3/8 in. | 25.00, 28.00, 32.00 mm. |
| Joiner Bearing Max Space | 5/8 to 13/16 in. | 16.50 to 20.50 mm. |
| Width Between Plates | 2 3/8 in. | 61.00 mm. |
| Drum Diameter | 12 5/8 in. | 320.00 mm. |
| Foil Model | KP54R | |
| Foil External Diameter | 2 1/16 in. | 53.00 mm. |
| Foil Weight | 3.51 lbs. | 1.59 kg. |
| Delivered Foil Length | 68.20 ft. | 20.80 m. |
| Luff Line Diameter | 1/4 in. | 6.00 mm. |
