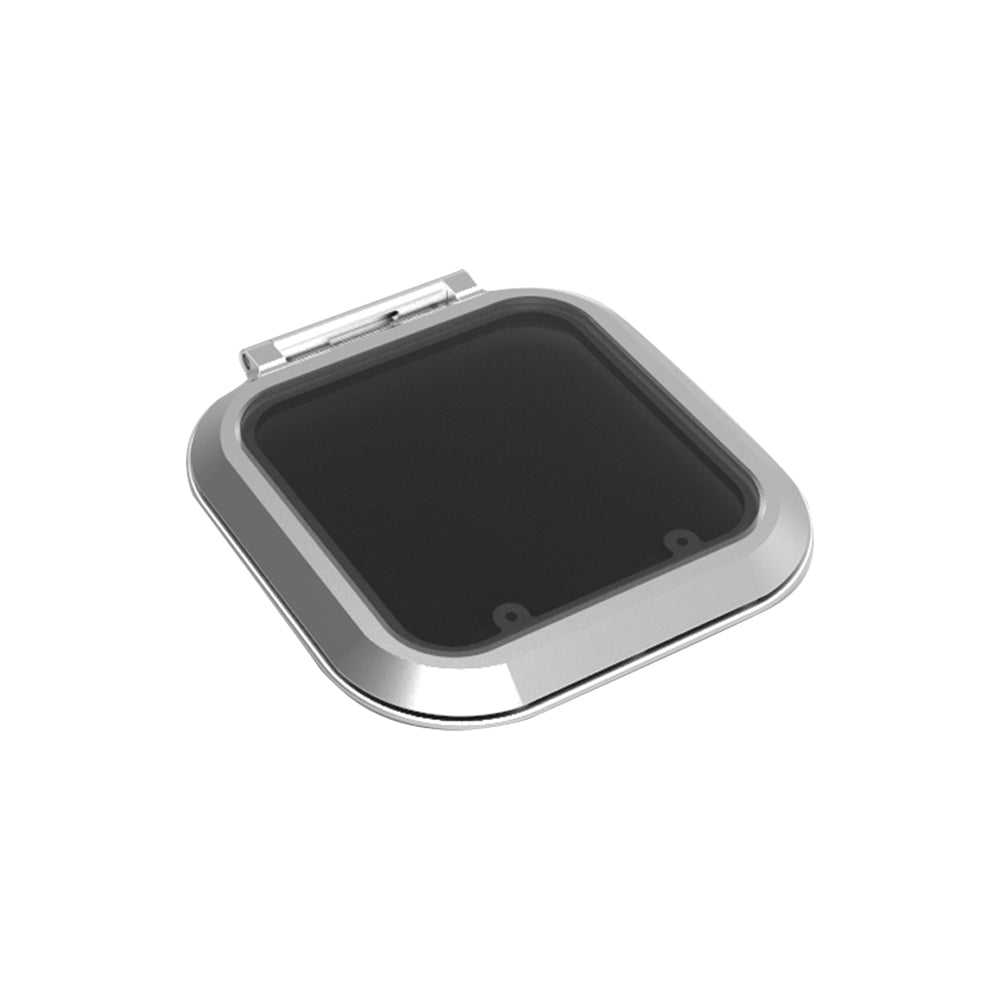

Goiot Cristal Hatch Size 24.24 - Cut Out: 26.3 x 26.3 cm (10 3/8 x 10 3/8 in) - Grey Acrylic / Aluminum Frame (101751)
Goiot Cristal Hatch Size 24.24 - Cut Out: 26.3 x 26.3 cm (10 3/8 x 10 3/8 in) - Grey Acrylic / Aluminum Frame (101751) is backordered and will ship as soon as it is back in stock.
Description
Description
With an aluminium profile and a one-piece aluminium casting lid, the famous Cristal range combines elegant lines and extreme sturdiness.
Available in a wide variety of sizes, it includes small hatches particularly suitable for ventilation purpose, and larger models that make excellent storage lockers.The hinges are equipped with friction, coupled with a compensating spring on large sizes (49.49, 61.61 et 79.79) that allows the lid to be held open in any position up to 90 ° (maximum opening 180 °).
Our Part # GOI-101751 | Mfr. Part # 101751
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 3.97 lb | 1.8 kg |
Cut-out dimensions | 10 1/3 in X 10 1/3 in | 263.0 x 263.0 mm |
Overall dimensions | 12 1/8 x 12 5/9 in | 308.0 x 319.0 mm |
Cut-out radius | 2 1/16 in | 53.0 mm |
Acrylic thickness | 1/4 in | 6.0 mm |
Lid height | 29/32 in | 23.0 mm |
Frame flange | 1/2 in | 12.0 mm |
