Goiot Cristal Hatch Size 61.61 - Cut Out: 63 x 63.0 cm (24 13/16 x 24 13/16 in) - Grey Acrylic / Aluminum Frame (101991)

SKU: GOI-101991  |  Manuf. Code: 101991
$1,665.00 USD
Ships from France.

Description

The Goiot Cristal Hatch #101991 is perfect for those looking to combine style with durability. It's designed to provide excellent hatch ventilation while offering a robust and elegant aluminum profile. With its sleek lines and sturdy build, it suits both small and large applications seamlessly.

Benefits

  • Elegant aluminum profile with one-piece casting lid
  • Wide size range for various applications
  • Friction hinges with compensating spring for larger sizes
  • Maximum opening angle of 180°

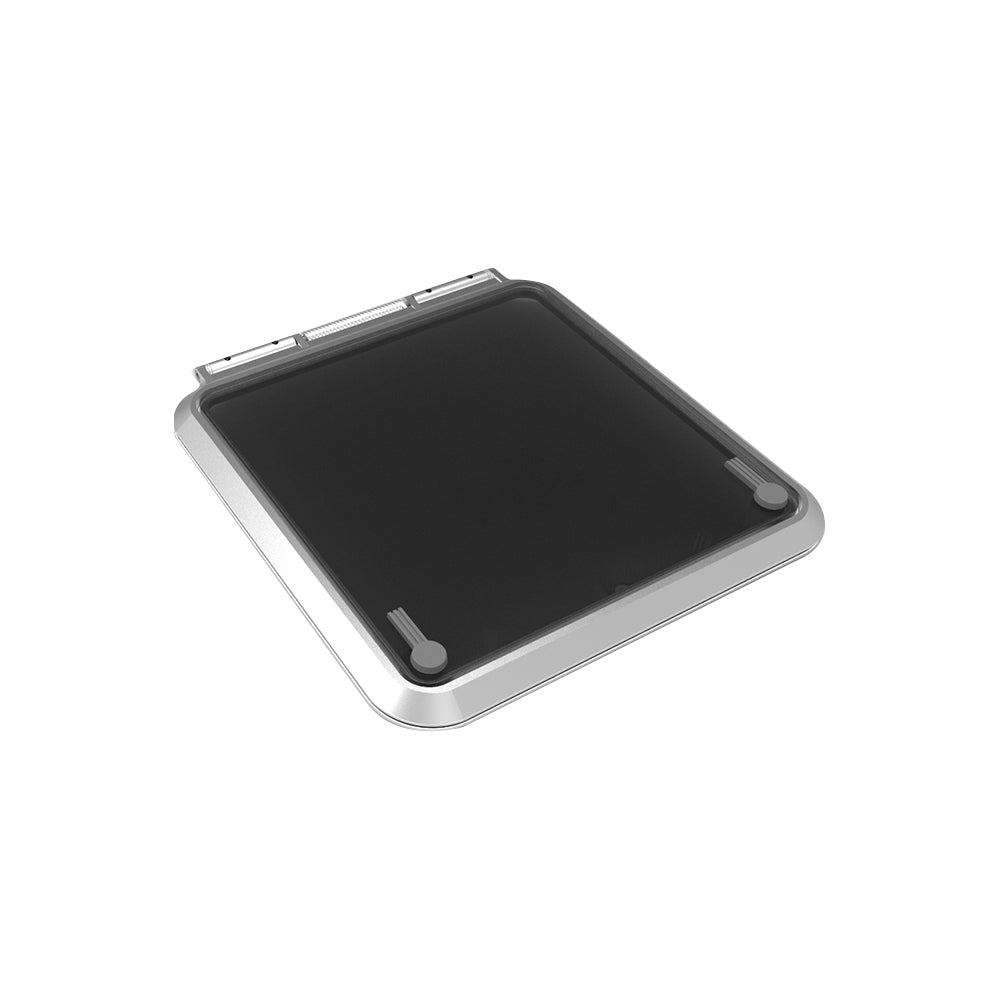

Constructed with a grey acrylic lid and an aluminum frame, this hatch measures 24 1/4 x 24 1/4 inches (616 x 616 mm), making it a versatile choice for many sailing vessels. It's particularly suitable for those wanting to enhance ventilation and storage options on board.

Usage

Ideal for both ventilation and as a storage locker, this hatch is a great addition to your sailing gear, offering flexibility and ease of use on deck.

Our Part # GOI-101991 | Mfr. Part # 101991

Features

  • Plastic handles incorporate a ventilation position, obtained by turning the small handle in the opposite direction from the opening direction
  • The 44C size and the 44.31 to 79.79 sizes are equipped with outside handles ; plastic caps are also supplied on these models, to prevent breaking in from outside.
  • Supplied as standard with a gray acrylic
  • Mounting on a flat surface with a tolerance of ± 0.5 mm
  • Milling diameter of the frame 5.3 mm (for M5 countersunk screws)
  • Approved in areas IIa, III and IV
  • Not approved for a use as escape hatches
  • Available options: ventilator, lock, aluminium handles and aluminium sheet metal panel

Technical Information

DescriptionImperialMetric
Weight26.5 lb12.0 kg
Cut-out dimensions24 4/5 x 24 4/5 in630.0 x 630.0 mm
Overall dimensions27 1/2 x 26 4/7 in699.0 x 675.0 mm
Cut-out radius2 1/16 in53.0 mm
Acrylic thickness3/8 in10.0 mm
Lid height1 2/7 in33.0 mm
Frame flange1/2 in12.0 mm
