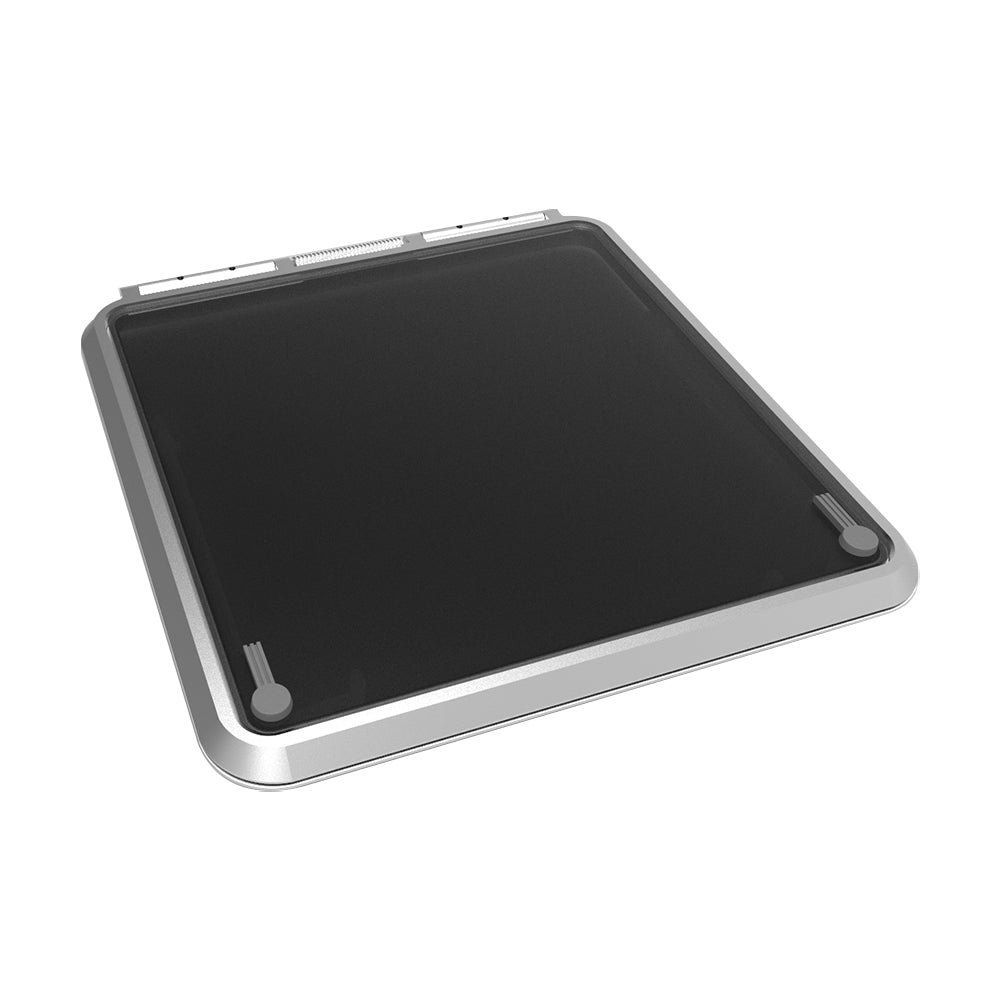

Goiot Cristal Hatch Size 79.79 - Cut Out: 80 x 80.0 cm (31 1/2 x 31 1/2 in) - Grey Acrylic / Aluminum Frame (102025)
Goiot Cristal Hatch Size 79.79 - Cut Out: 80 x 80.0 cm (31 1/2 x 31 1/2 in) - Grey Acrylic / Aluminum Frame (102025) is backordered and will ship as soon as it is back in stock.
Description
Description
With an aluminium profile and a one-piece aluminium casting lid, the famous Cristal range combines elegant lines and extreme sturdiness.
Available in a wide variety of sizes, it includes small hatches particularly suitable for ventilation purpose, and larger models that make excellent storage lockers.The hinges are equipped with friction, coupled with a compensating spring on large sizes (49.49, 61.61 et 79.79) that allows the lid to be held open in any position up to 90 ° (maximum opening 180 °).
Our Part # GOI-102025 | Goiot Part # 102025
Features
Features
- Plastic handles incorporate a ventilation position, obtained by turning the small handle in the opposite direction from the opening direction
- The 44C size and the 44.31 to 79.79 sizes are equipped with outside handles ; plastic caps are also supplied on these models, to prevent breaking in from outside.
- Supplied as standard with a gray acrylic
- Mounting on a flat surface with a tolerance of ± 0.5 mm
- Milling diameter of the frame 5.3 mm (for M5 countersunk screws)
- Approved in areas IIa, III and IV
- Not approved for a use as escape hatches
- Available options: ventilator, lock, aluminium handles and aluminium sheet metal panel
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 52.9 lb | 24.0 kg |
Cut-out dimensions | 31 1/2 x 31 1/2 in | 800.0 x 800.0 mm |
Overall dimensions | 34.0 x 33 1/3 in | 865.0 x 846.0 mm |
Cut-out radius | 2 1/16 in | 52.0 mm |
Acrylic thickness | 19/32 in | 15.0 mm |
Lid height | 1 7/16 in | 36.0 mm |
Frame flange | 15/16 in | 24.0 mm |
