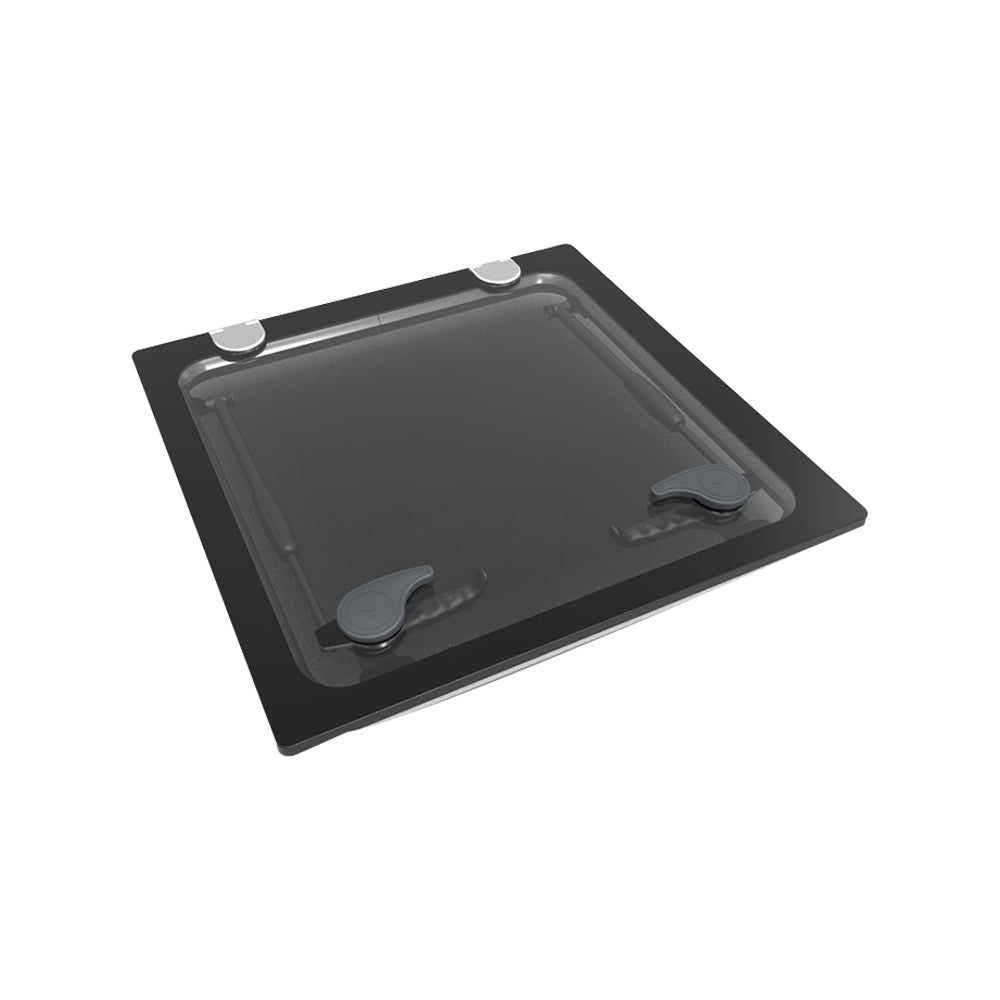

Goiot Flush Hatch Size T60 - Cut Out: 50.7 x 50.7 cm (19 15/16 x 19 15/16 in) - Grey Acrylic / Aluminum Frame (116470)

SKU: GOI-116470  |  Manuf. Code: 116470
$895.00 USD
Ships from France.

Description

The Goiot Flush Hatch #116470 is a great option for those looking to add a sleek, stylish touch to their boat. Its design stems from the innovative features seen on the Mari-Cha IV, ensuring exceptional functionality and aesthetics. This hatch blends seamlessly with your deck, thanks to its thick, high-quality materials and ergonomic design.

Benefits

  • Sturdy aluminum profile frame for durability
  • Telescopic stays for easy handling
  • Thick 15 mm acrylic for enhanced strength
  • Stainless steel hinges for smooth operation
  • Ergonomic handles for user-friendly interaction

Crafted with a robust aluminum frame and 15 mm thick grey acrylic, this flush hatch measures 22 23/32 x 22 23/32 inches (577 x 577 mm). It’s designed to be compatible with most production boats, offering a perfect blend of style and performance. The use of stainless steel hinges ensures a smooth, frame-free opening, enhancing the overall look of your sailing gear.

Our Part # GOI-116470 | Mfr. Part # 116470

Features

  • Flush stainless steel handles with winch print allow opening from the outside
  • The ergonomic shape of the handles ensures comfortable space for an excellent prehension. They feature a lock catch which prevents breaking in from outside.
  • All models are equipped with adjustable stay up to 130°
  • Supplied as standard with a gray acrylic
  • Mounting on a flat surface with a tolerance of ± 0.5 mm
  • Approved in areas IIa, III and IV
  • Stainless steel hinges
  • Available options: ventilator, lock, aluminium sheet metal panel, flush Grip anti-slip and gas jack

Technical Information

DescriptionImperialMetric
Weight19.84 lb9.0 kg
Cut-out dimensions20.0 x 20.0 in507.0 x 507.0 mm
Overall dimensions22 5/7 x 22 5/7 in577.0 x 577.0 mm
Cut-out radius1 2/3 in42.5 mm
Acrylic thickness19/32 in15.0 mm
Lid height1 2/9 in31.0 mm
Frame flange19/32 in15.0 mm
