Goiot Flush Hatch Size T54 - Cut Out: 39.2 x 50.7 cm (15 7/16 x 19 15/16 in) - Grey Acrylic / Aluminum Frame (117515)
Goiot Flush Hatch Size T54 - Cut Out: 39.2 x 50.7 cm (15 7/16 x 19 15/16 in) - Grey Acrylic / Aluminum Frame (117515) is backordered and will ship as soon as it is back in stock.
Description
Description

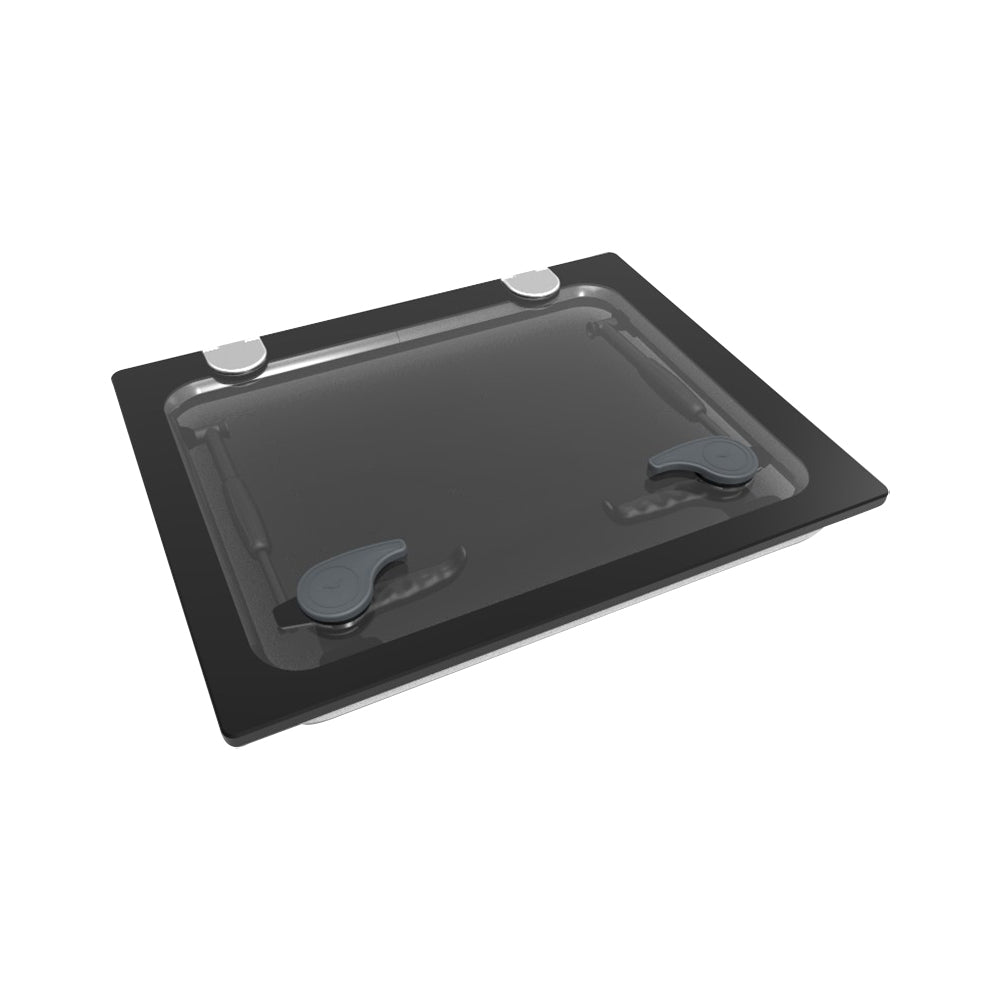

The Goiot Flush Hatch #117515 is a sleek and reliable ventilation product perfect for enhancing the aesthetics of your boat. With its innovative design, it combines the robustness of a thick aluminum frame and the elegance of a grey acrylic finish to ensure durability and style on the deck. This hatch is crafted for those who appreciate both form and function in their sailing gear.
Benefits
- Flush design enhances deck aesthetics
- Thick aluminum profile frame for durability
- Grey acrylic provides a modern and sleek look
- Telescopic stays for easy operation
- Ergonomic handles for comfortable use
- Stainless steel hinges for robust support
This Goiot hatch is constructed with a 15 mm thick acrylic mounted on specific stainless steel hinges, ensuring it remains both sturdy and stylish. Measuring 22 23/32 x 18 3/16 inches (577 x 462 mm), it fits seamlessly into production boats. Designed for marine environments, it combines top-quality materials like aluminum and acrylic to withstand harsh sea conditions while providing optimal functionality.
Our Part # GOI-117515 | Mfr. Part # 117515
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 16.76 lb | 7.6 kg |
Cut-out dimensions | 20.0 x 15.0 in | 507.0 x 382.0 mm |
Overall dimensions | 22 5/7 x 18 3/16 in | 577.0 x 462.0 mm |
Cut-out radius | 1 2/3 in | 42.5 mm |
Acrylic thickness | 19/32 in | 15.0 mm |
Lid height | 1 2/9 in | 31.0 mm |
Frame flange | 19/32 in | 15.0 mm |
