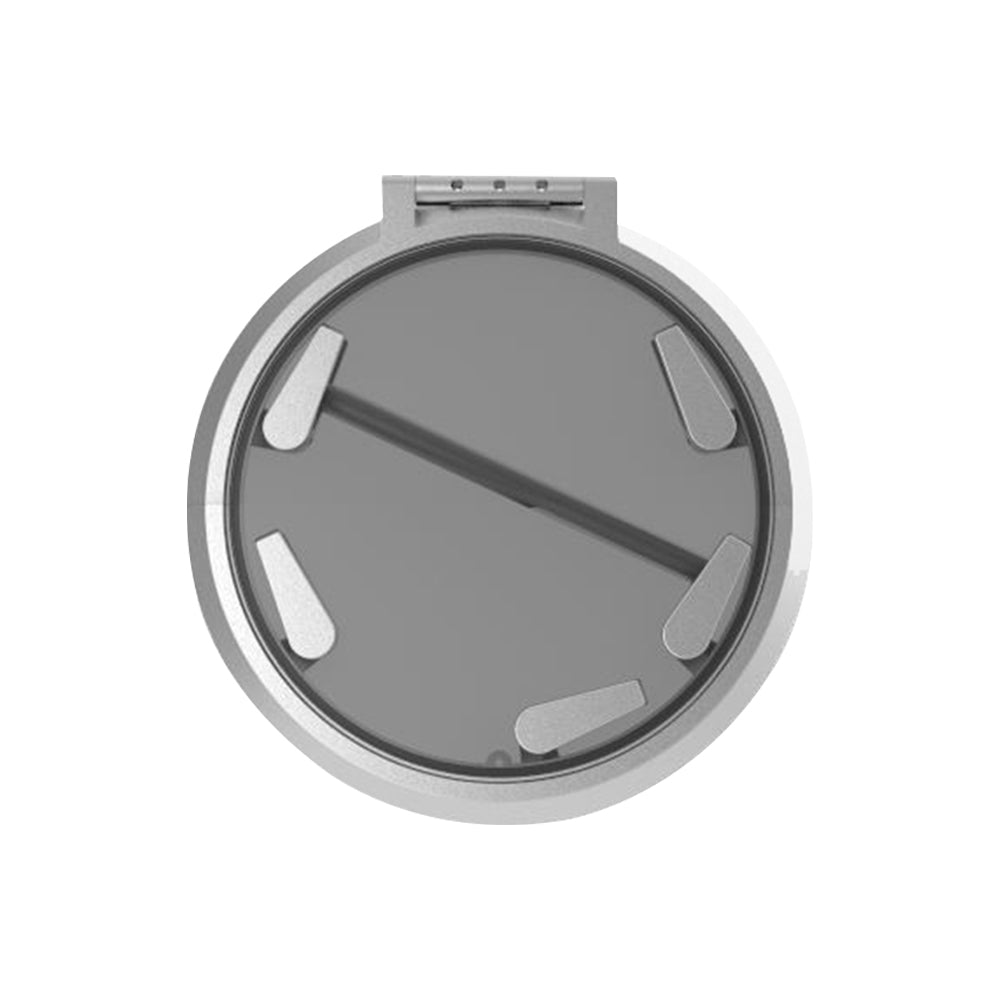

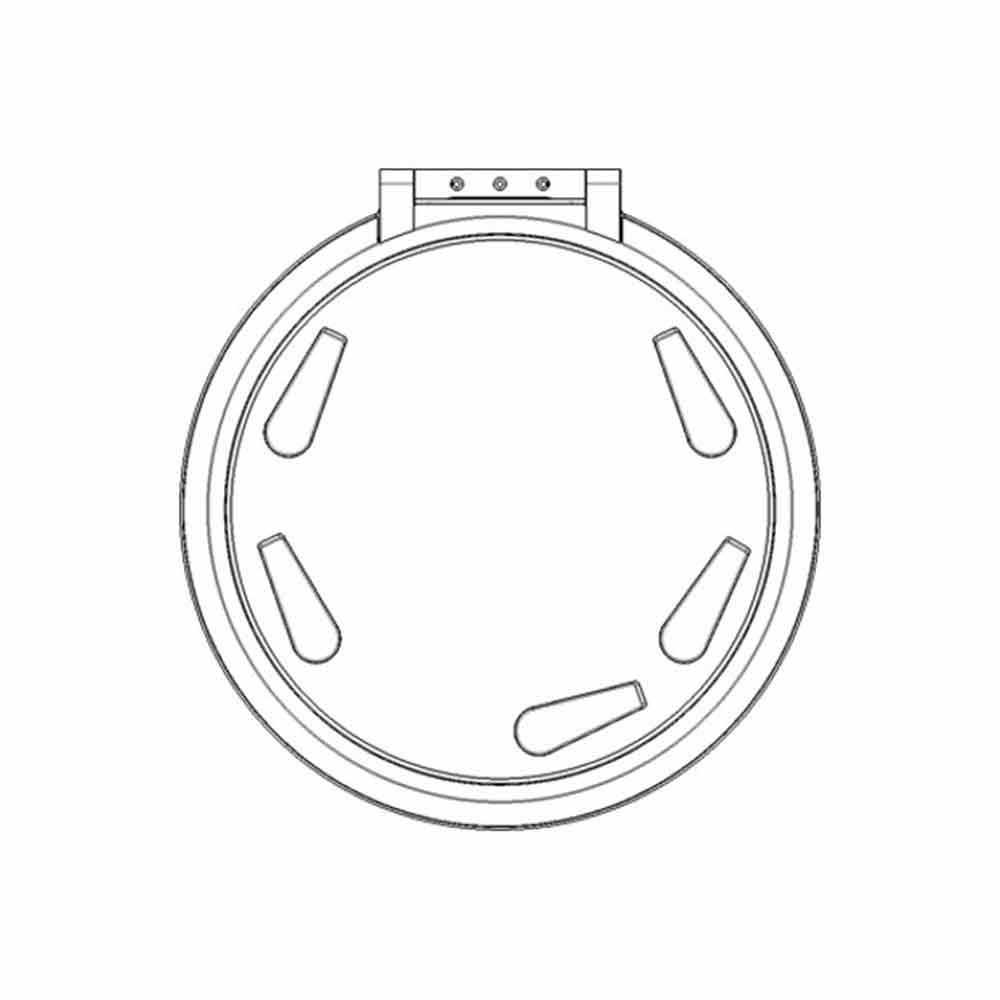

Goiot Escape Hatch Size 44C - Cut Out: 47.6 x 47.6 cm (18 3/4 x 18 3/4 in) - Grey Acrylic / Aluminum Frame (121137)
Goiot Escape Hatch Size 44C - Cut Out: 47.6 x 47.6 cm (18 3/4 x 18 3/4 in) - Grey Acrylic / Aluminum Frame (121137) is backordered and will ship as soon as it is back in stock.
Description
Description
The Goiot Escape Hatch #121137 is a reliable ventilation product designed for secure and convenient use on your vessel. With its robust construction, it ensures safety while providing essential airflow. This hatch is an ideal choice for those looking to enhance the functionality of their boat without compromising on style.
Benefits
- Equipped with cast aluminum handles for durability
- Includes a locking bar for added security when docking or anchoring
- Offers improved ventilation
Constructed with a grey acrylic panel and a sturdy aluminum frame, this hatch measures 17 5/16 x 15 1/4 inches (440 x 387 mm). It's designed to fit seamlessly into sailing vessels, providing an efficient and stylish solution for air circulation and safety on board.
Our Part # GOI-121137 | Mfr. Part # 121137
Features
Features
- Plastic handles incorporate a ventilation position, obtained by turning the small handle in the opposite direction from the opening direction
- The 44C size and the 44.31 to 79.79 sizes are equipped with outside handles ; plastic caps are also supplied on these models, to prevent breaking in from outside.
- Supplied as standard with a gray acrylic
- Mounting on a flat surface with a tolerance of ± 0.5 mm
- Milling diameter of the frame 5.3 mm (for M5 countersunk screws)
- Approved in areas IIa, III and IV
- Not approved for a use as escape hatches
- Available options: ventilator, lock, aluminium handles and aluminium sheet metal panel
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 12.8 lb | 5.8 kg |
Cut-out dimensions | 18 3/4 in | Ø476.0 mm |
Overall dimensions | 20 1/2 in | Ø52.0 cm |
Cut-out radius | 2 1/16 in | 52.0 mm |
Acrylic thickness | 1/2 in | 12.0 mm |
Lid height | 1 3/32 in | 28.0 mm |
Frame flange | 1/2 in | 12.0 mm |
