Antal Tulip Sheave - Sheave Dia: 3 9/16 in (90.0 mm) (801.090)

SKU: ANT801090  |  Manuf. Code: 801.090
List Price:  $362.00 USD
$330.00 USD

You save $19 today!
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  1. We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  2. No auction sites
  3. No unauthorized sellers
  4. Item must be identical, new, and in stock
Found it cheaper? Chat with us to request a Price Match.
Ships from Italy.
Free Shipping for US Continental orders over $145. - View details.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.

DESCRIPTION

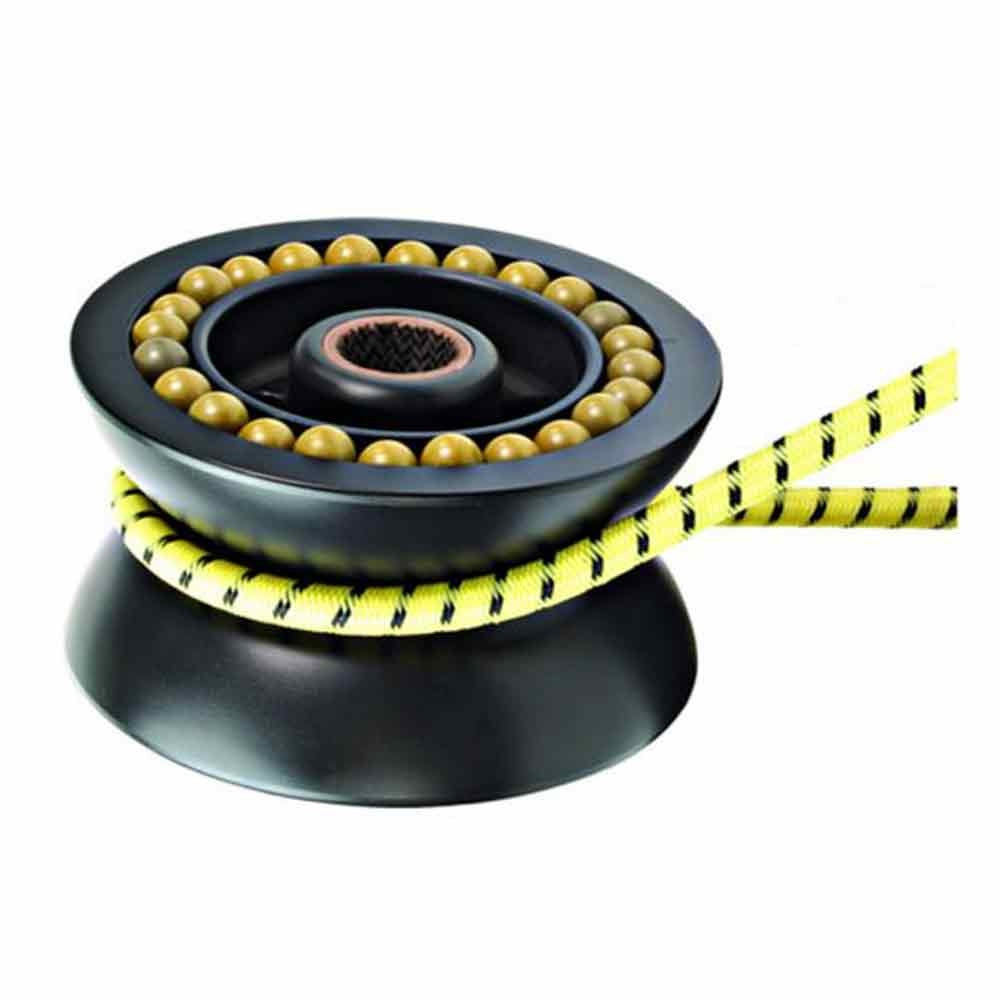

Tulip sheave, sheave Ø 90, SWL 5000 kg.

The Tulip sheaves are fixed sheaves that do not turn in the direction of manoeuvres since they accept quite different lead angles. The choice of a Tulip sheave instead of a revolving block comes from the need to reduce bulk and weight. The sheave, with an axial bearing in composite fibre and large round bearings (self-captive) in Torlon for side loads, is in anodized and Teflon coated aluminium and can handle very high loads.

Our Part # ANT801090 | Mfr. Part # 801.09

FEATURES

  • Tulip sheave for efficient line movement.
  • Diameter measures 3 9/16 inches (90.0 mm).
  • Reduces rope wear.
  • Suitable for high-load systems.

TECHNICAL INFORMATION

Batten dimensions: 20 mm
Sheave: 90 mm
Side bearing: Torlon balls
Radial bearing: Composite fibre
Weight: 450 g
Max line: 14 mm
SWL: 5000 kg
Sheave material: Aluminum
D2: 20 mm
Thickness: 50 mm
