Vetus 1 1/2" Thru-Hull Fitting (Stainless Steel) - L-Flange (THRH38L)
SKU:
VTSTHRH38L
|
Manuf. Code:
THRH38L
5% off
Unit price
/
Unavailable
Vetus 1 1/2" Thru-Hull Fitting (Stainless Steel) - L-Flange (THRH38L) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Vetus 1 1/2" Thru-Hull Fitting (Stainless Steel) - L-Flange (T...
Unit price
/
Unavailable
Description
Description
Vetus develops a wide range of Skin Fittings that are available in different sizes. The fittings are available in different material as well, including corrosion-resistant plastic, bronze and brass.
Our Part # VTSTHRH38L | Vetus Part # THRH38L
Technical Information
Technical Information

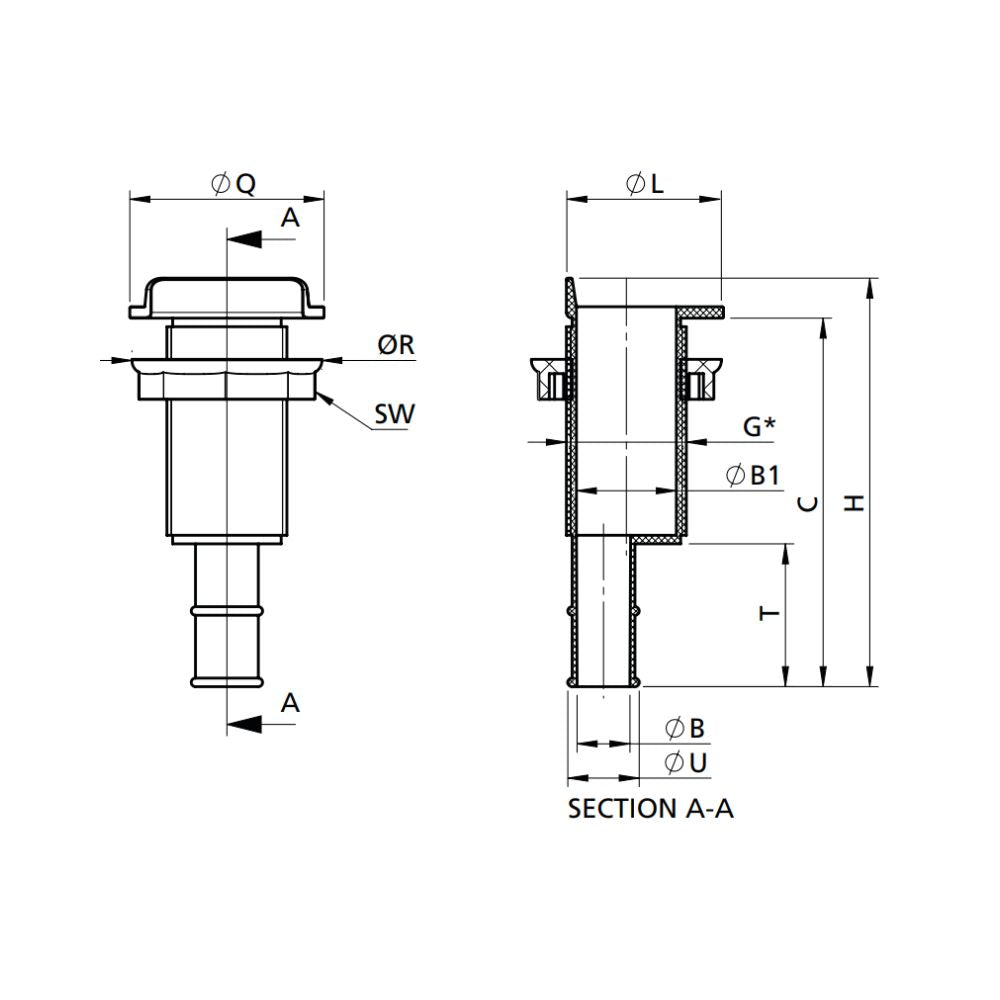

| Description | Imperial | Metric |
|---|---|---|
| Thread (G) | 1 1/4 in. | 31.75 mm. |
| ØB | 3/4 in. | 18.50 mm. |
| ØB1 | 1 3/8 in. | 35.00 mm. |
| H | 5 3/5 in. | 142.00 mm. |
| C | 5.00 in. | 129.00 mm. |
| ØQ | 2 2/3 in. | 68.00 mm. |
| L | 2 1/6 in. | 55.00 mm. |
| ØR | 2 3/5 in. | 66.00 mm. |
| SW | 2 1/4 in. | 57.00 mm. |
| T | 2.00 in. | 50.00 mm. |
| ØU | 1.00 in. | 25.00 mm. |
| Weight | 0.17 lb. | 0.08 kg. |
