Vetus 3/4" 24V 316SS Motorized Ball Valve (MV24A3/4)

Name: Vetus 3/4" 24V 316SS Motorized Ball Valve (MV24A3/4)
Brand: Vetus
SKU: VTSMV24A34
Price: 875.0 USD
Availability: InStock

SKU: VTSMV24A34 | Manuf. Code: MV24A3/4

$875.00 USD

Worldwide Shipping Avalailable

SIMPLE returns & exchanges

PRICE MATCH guarantee

Knowledgeable STAFF

Description

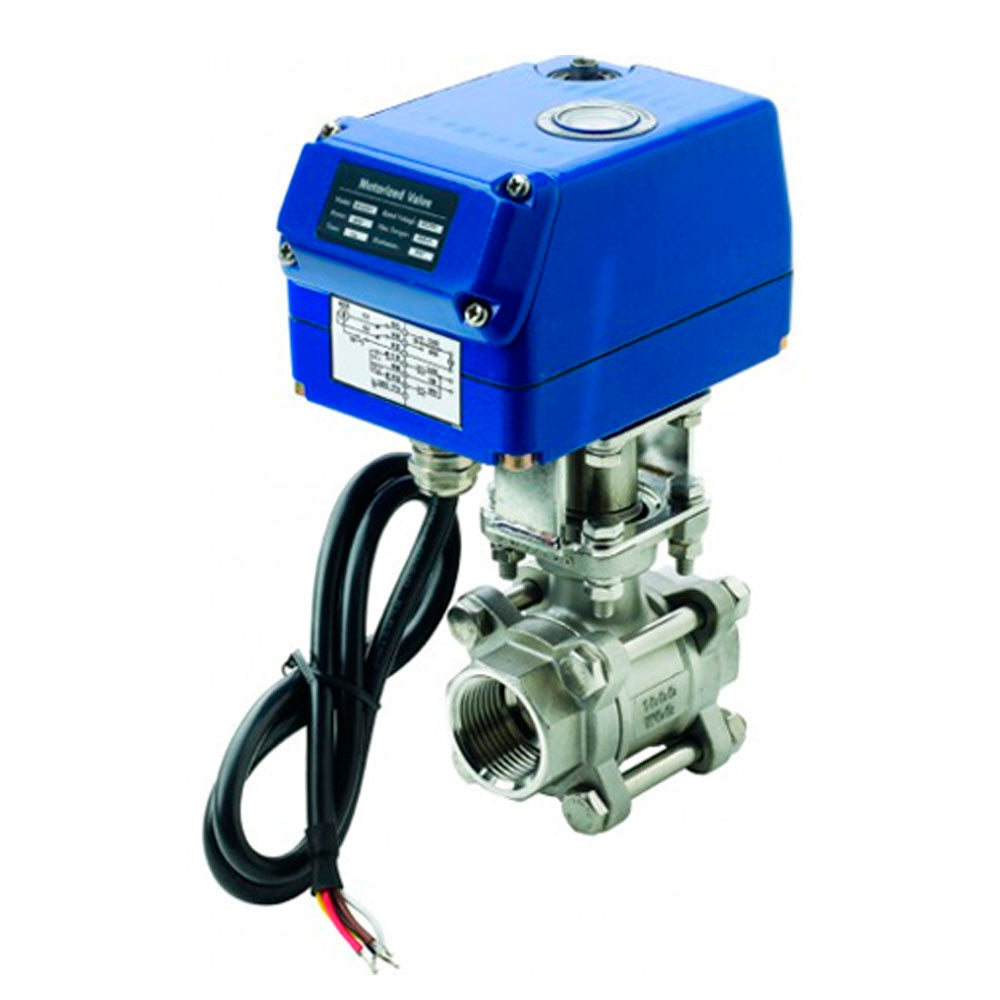

These motorised valves enable any seacock to be opened or closed electrically from a remote location. The valves can be powered fully open or fully closed in approximately 12-25 seconds.

Ball valve stainless steel (AISI 316).
Valves are resistant against the influences of petrol and diesel fuels.
The G-threading meets the requirements of ISO 228-1 and ISO 9093-1.
Powerful motors with a maximum torque of 40Nm or 220Nm.
Ignition protected.
Actuator housing IP67, die cast aluminium and powder coated.
Simple manual override.

Our Part # VTSMV24A34 | Mfr. Part # MV24A3/4

Technical Information

Description	Imperial	Metric
Power Supply Range	18.00 - 28.00 V.	18.00 - 28.00 V.
Max Torque	27.60 VDC	27.60 VDC
Operating current	1.20 A. +/- 10.00%	1.20 A. +/- 10.00%
Opening and Closing	Yes	Yes

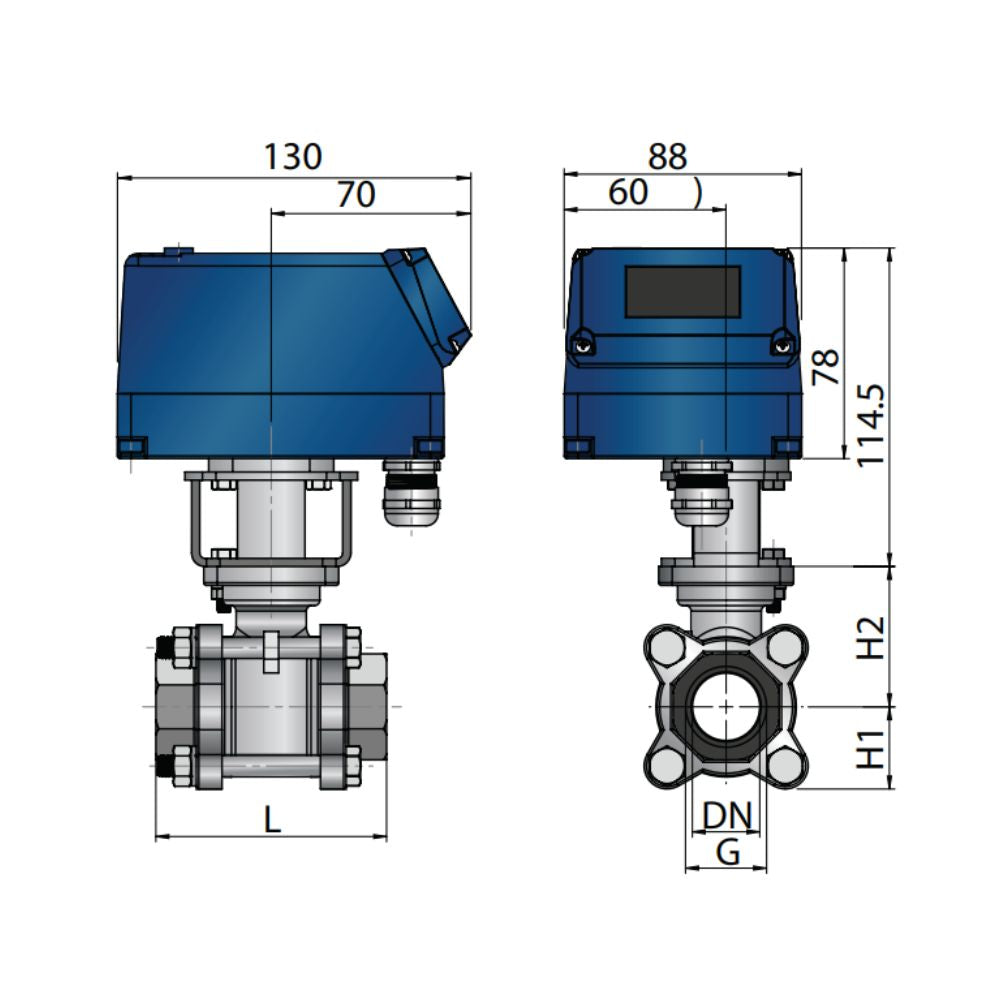

G	3/4 in.	19.00 mm.
DN	13/16 in.	20.00 mm.
H1	7/8 in.	22.50 mm.
H2	1 7/8 in.	48.00 mm.
L	3 1/8 in.	80.00 mm.
Weight	5.30 lb.	2.40 kg.
