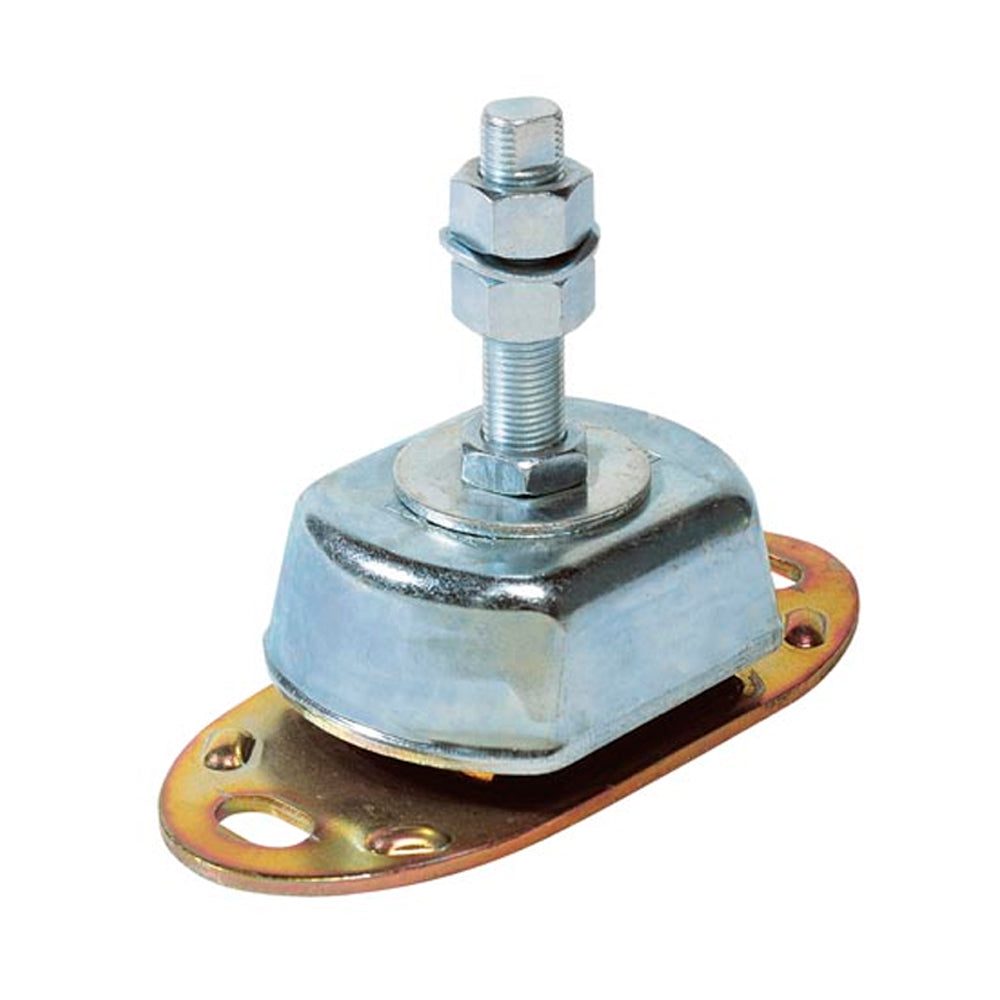

Vetus Flexible Engine Mounting Type HY100 (HY100)
DESCRIPTION
DESCRIPTION
The Vetus Flexible Engine Mounting Type HY100 is crafted for marine diesel engines, providing superb vibration dampening with its unique design. Its low vertical stiffness paired with high longitudinal stiffness makes it ideal for engines ranging from 30 KW to 125 KW (40 HP - 170 HP). This makes vetus engine mounts a reliable choice for smooth sailing.
Features & Benefits
- Low vertical stiffness for effective vibration control.
- High stiffness in the longitudinal direction for stability.
- Suitable for marine diesel engines between 30 KW and 125 KW.
These vetus engine mounts are built to excel in marine environments and are designed to accommodate a range of diesel engine powers. With precision engineering, they ensure minimal engine movement, enhancing performance and comfort in sailing. Made for durability and reliability, they're an essential piece of sailing gear.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Stiffness ratio (vertical) | 1.00 | 1.00 |
| Stiffness ratio (athwart ships) | 1.20 | 1.20 |
| Stiffness ratio (fore and aft) | 3.50 | 3.50 |
| Min. Load (static) | 88.18 lb. | 40.00 kg. |
| Min. compression (static) | 1/16 in. | 2.00 mm. |
| Max load (static + dynamic) | 220.46 lb. | 100.00 kg. |
| Max. compression (static + dynamic) | 3/16 in. | 5.00 mm. |
| Hardness in shore | 40.00 | 40.00 |
