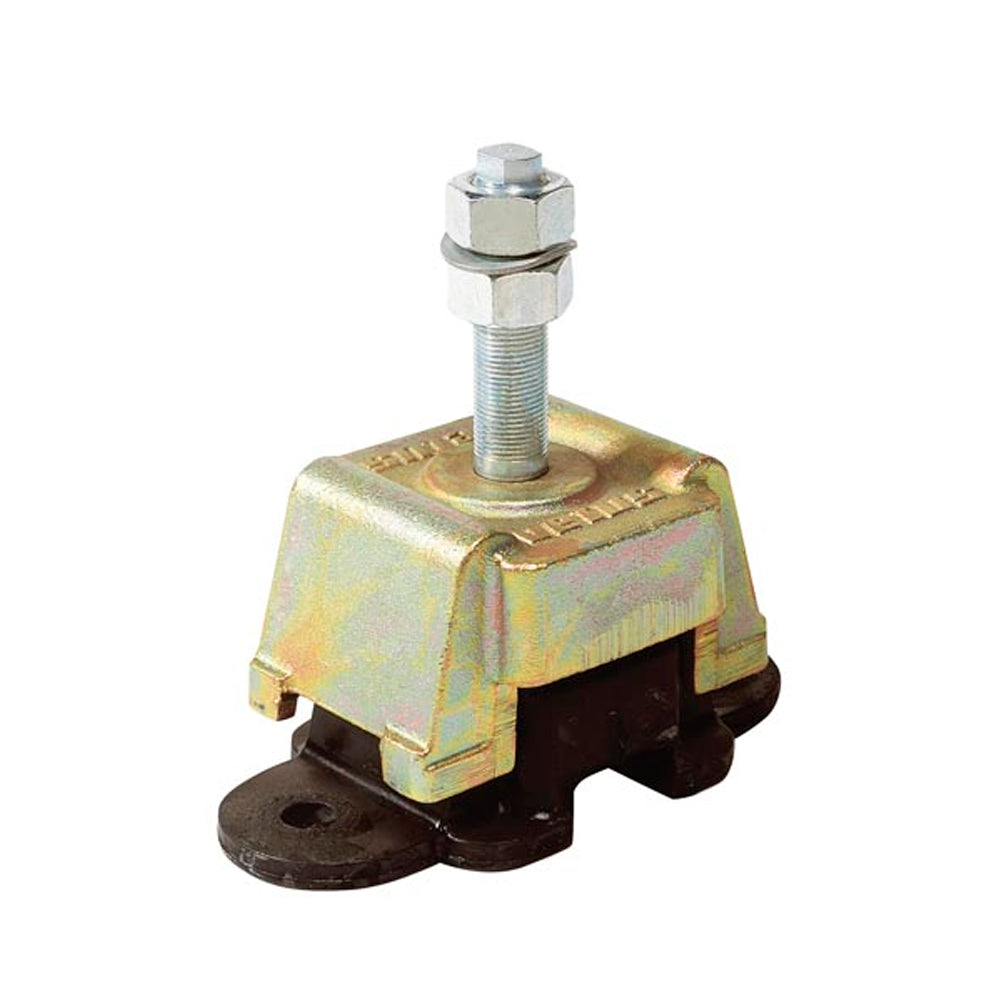

Vetus Flexible Engine Mounting Type LMX340 (LMX340)

Name: Vetus Flexible Engine Mounting Type LMX340 (LMX340)
Brand: Vetus
SKU: VTSLMX340
Price: 267.0 USD
Availability: InStock

SKU: VTSLMX340 | Manuf. Code: LMX340

~~List Price: $318.96 USD~~

$267.00 USD

You save $55 today!

Free Shipping for US Continental orders over $145. - View details.

Questions? Chat with our Tech Team

Backed by MAURIPRO Support.

DESCRIPTION

The Vetus flexible engine mounting type LMX has been designed with particular regard to the power to weight ratio of modern diesel engines, which is of ever-growing importance. In other words: the weight of an engine, in comparison to its thrust, has become lower and lower. For these engine types, the VETUS flexible engine mounting type LMX possesses the following ideal characteristics:

The ample vertical compression guarantees optimum damping of vibrations, even at idling revs.
The horizontal fore and aft stiffness is very high, which allows the acceptance of considerable thrust.
The cushioning of vibrations in horizontal direction athwartships is of equal excellence.
These flexible engine mountings are suitable for marine diesel engines in the power range between 70 KW and 350 KW (95 HP - 480 HP).

Our Part # VTSLMX340 | Mfr. Part # LMX340

TECHNICAL INFORMATION

Description	Imperial	Metric
Stiffness ratio (vertical)	1.00	1.00
Stiffness ratio (athwart ships)	1.00	1.00
Stiffness ratio (fore and aft)	7.00	7.00
Min. Load (static)	451.95 lb.	205.00 kg.
Min. compression (static)	1/8 in.	3.00 mm.
Max load (static + dynamic)	749.57 lb.	340.00 kg.
Max. compression (static + dynamic)	3/16 in.	5.00 mm.
Hardness in shore	55.00	55.00
