DESCRIPTION
DESCRIPTION

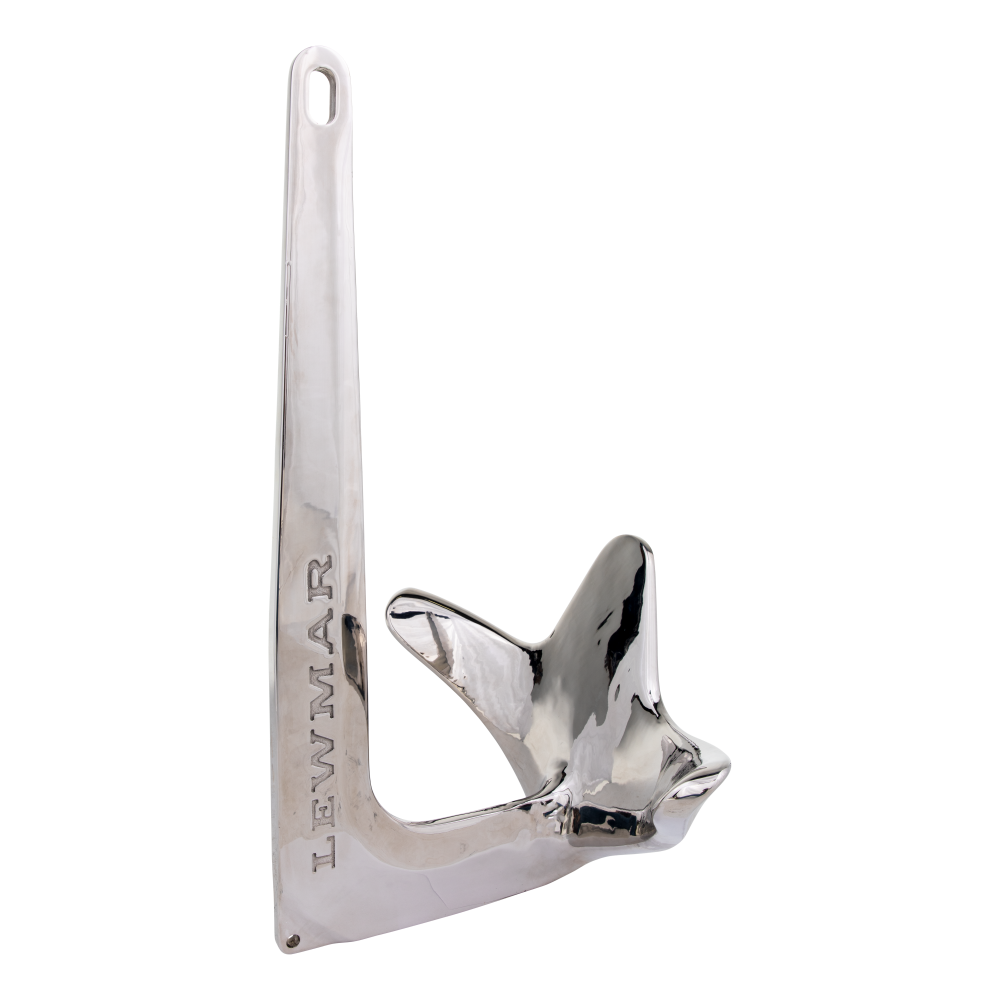

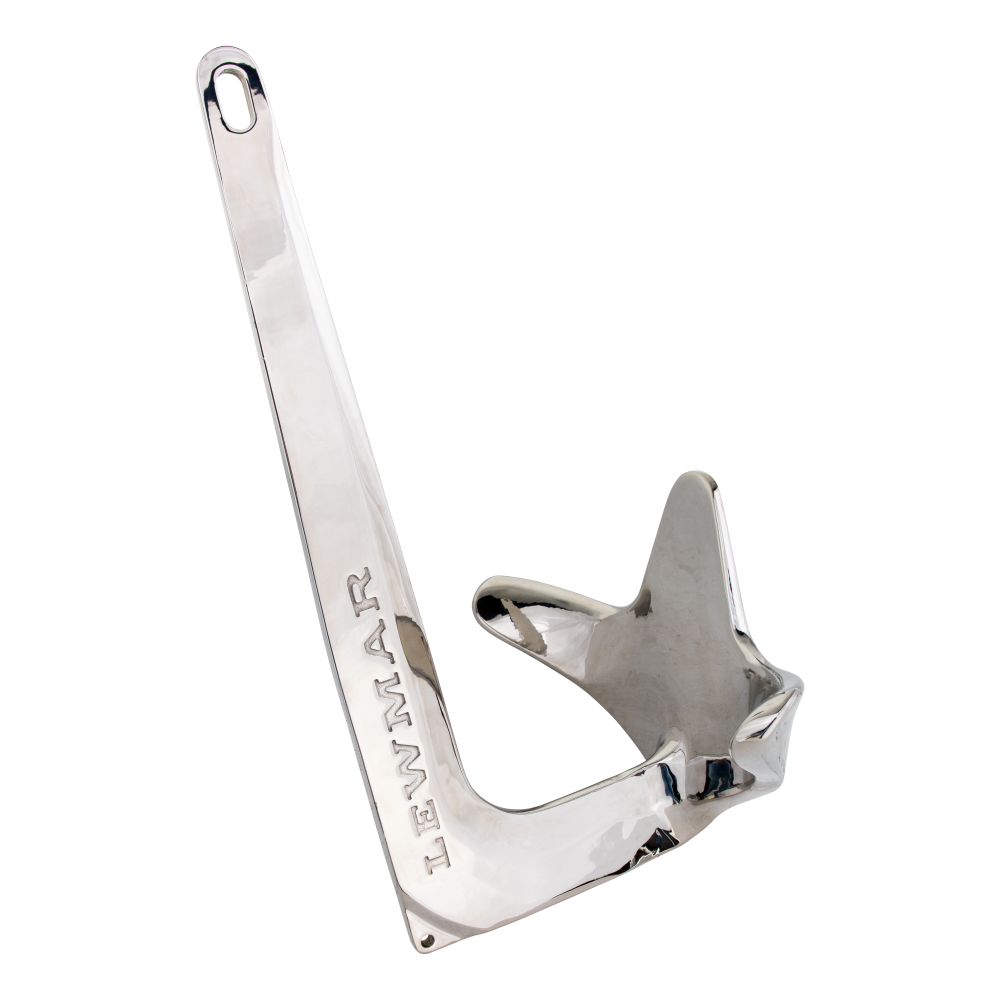

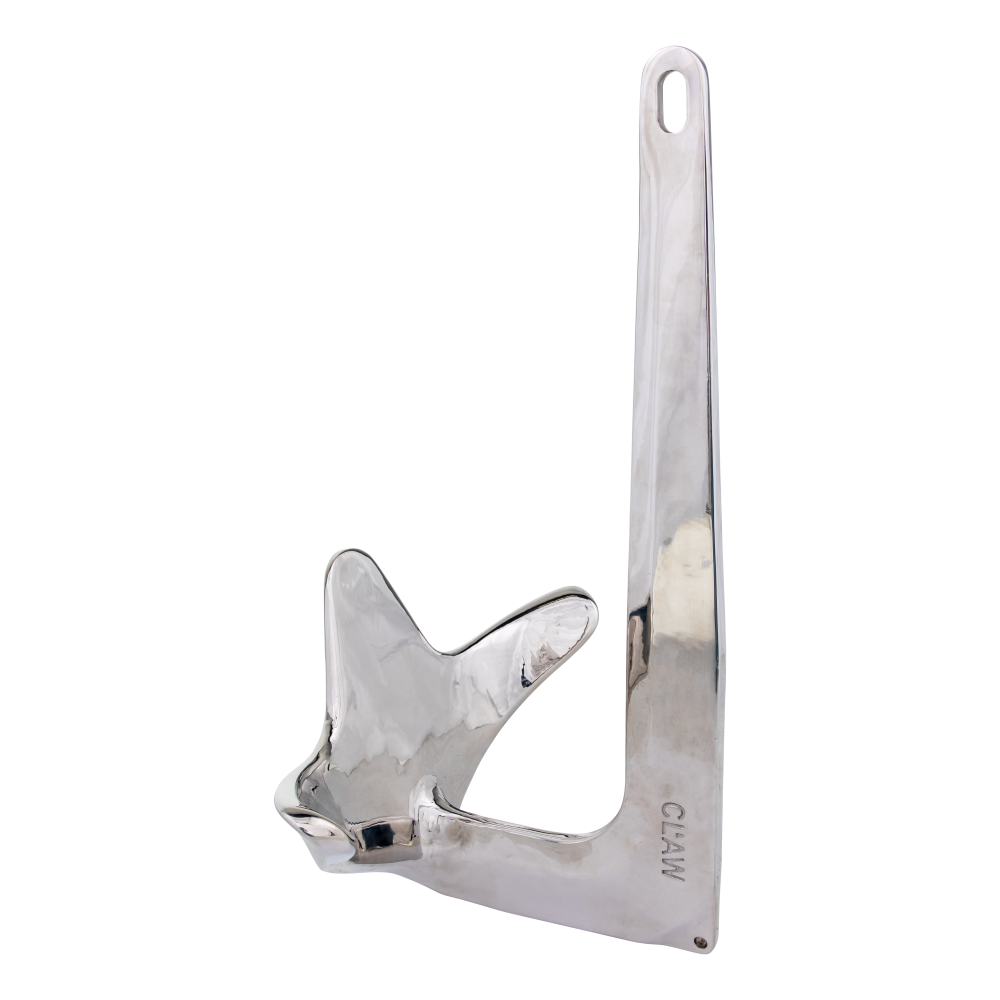

Design based on anchors used to secure oil rigs in the North Sea. The Claw anchor is constructed of high-grade steel cast in a single piece. It sets effortlessly, holds in a variaty of seabeds and stows easily on the bow roller of most boats. Also ideal for twin installations.
Our Part # LEW0058902 | Mfr. Part # 58902

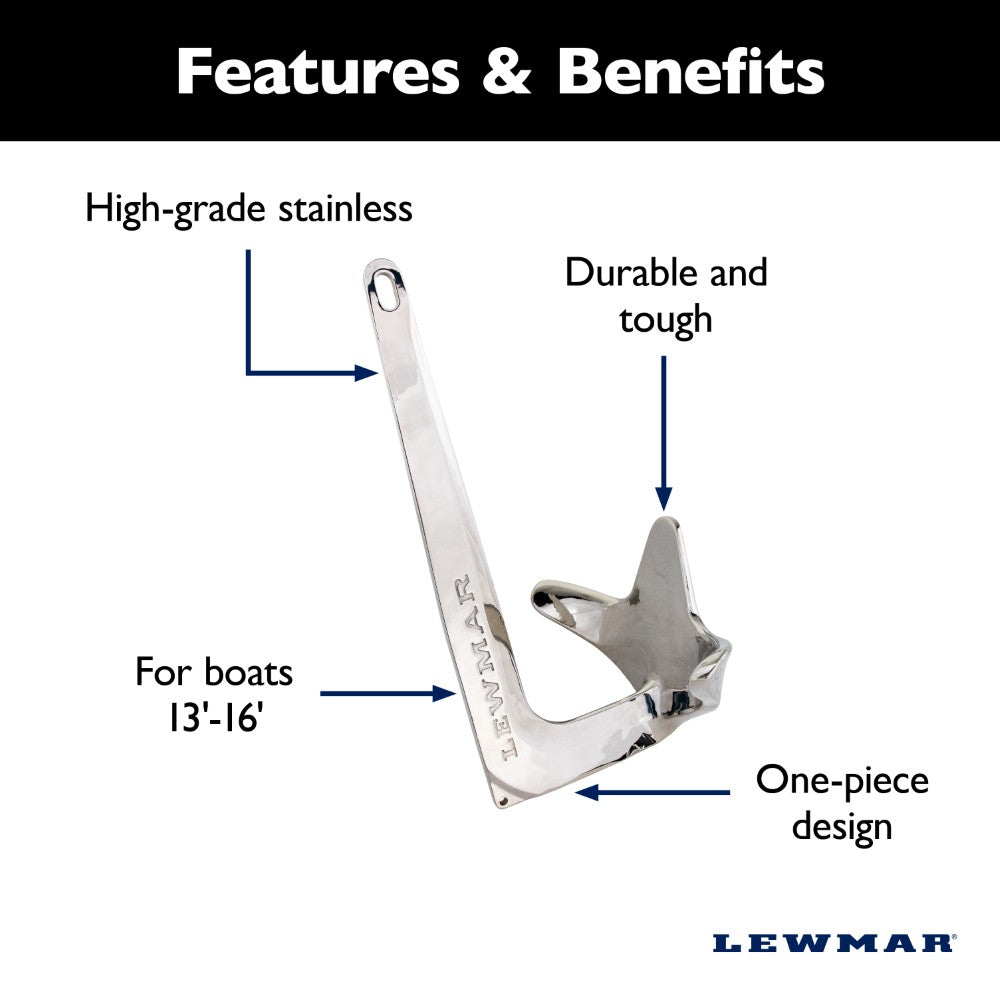

FEATURES
FEATURES
- 4.4 lb (2 kg) premium stainless steel Claw anchor.
- Exceptional corrosion resistance.
- Polished finish for aesthetic appeal.
- Reliable holding power in diverse conditions.
TECHNICAL INFORMATION
TECHNICAL INFORMATION

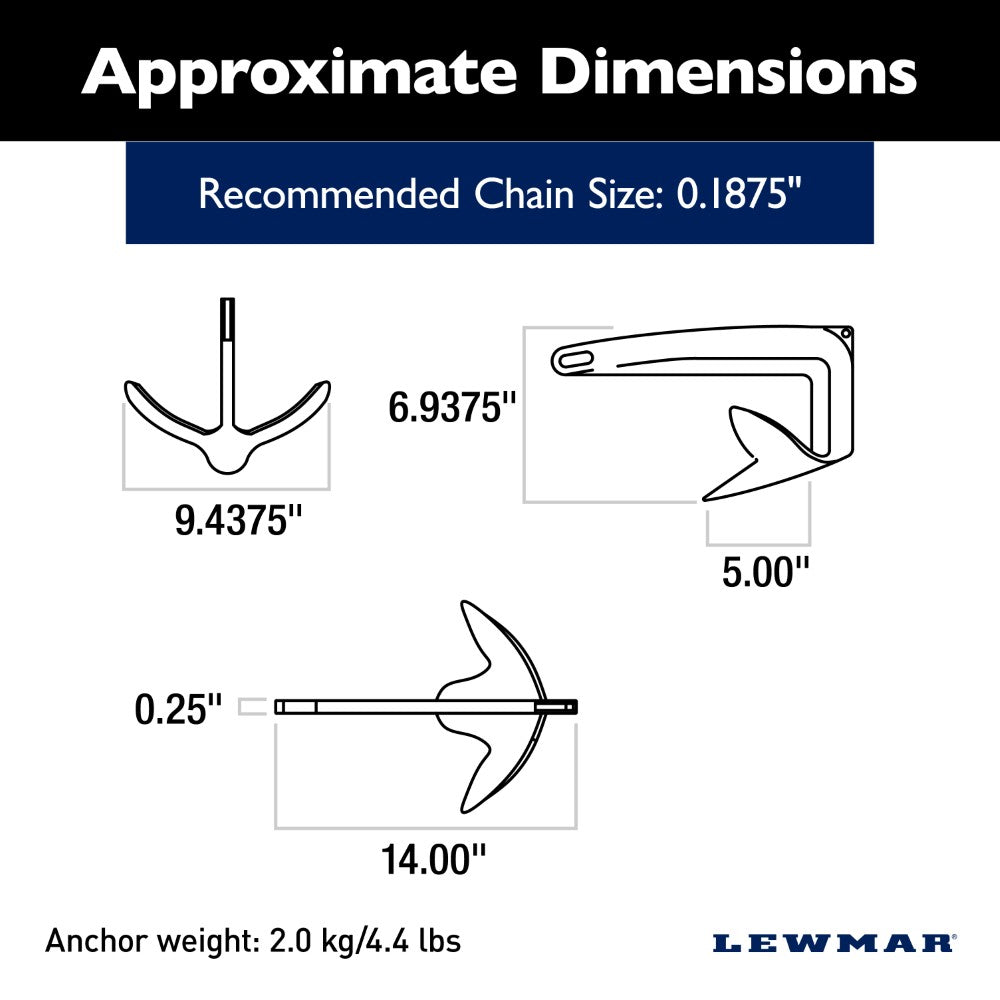

| Description | Metric | Imperial |
|---|---|---|
| Anchor weight | 2.0 kg | 4.4 lb |

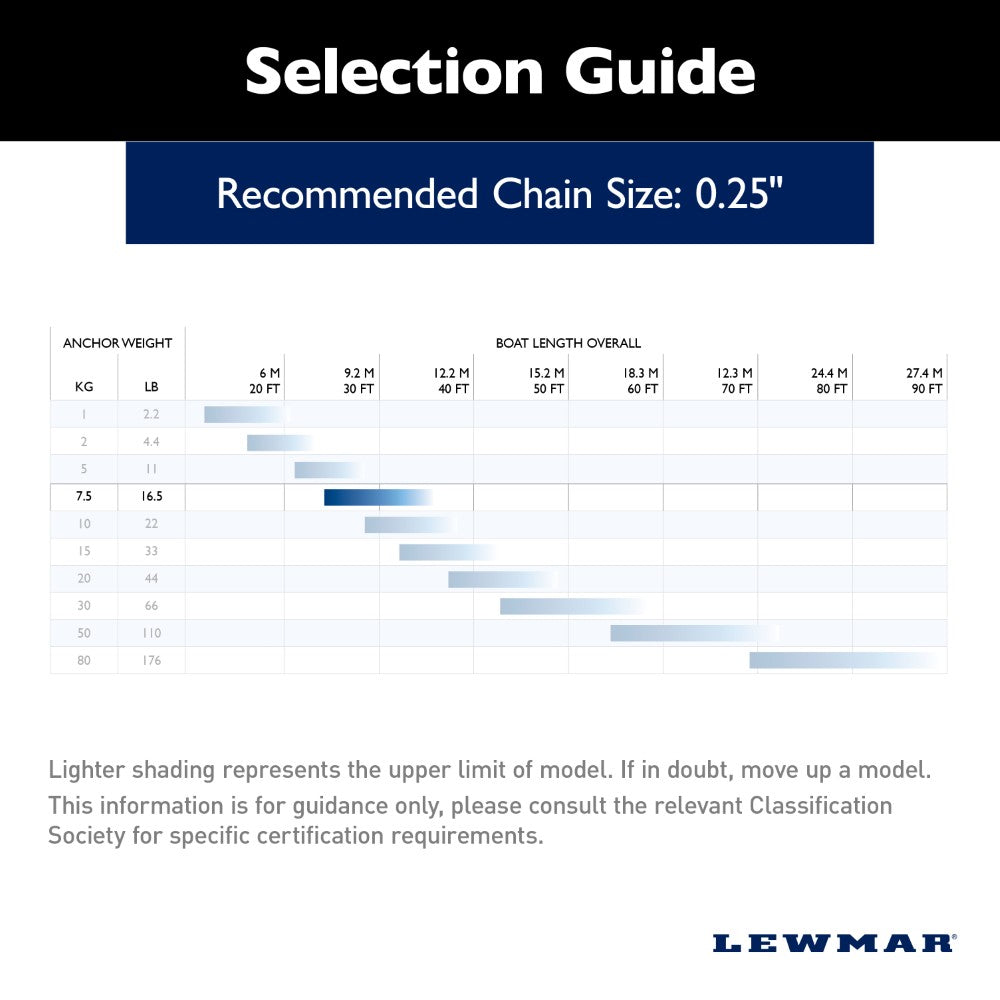

| Recommended chain size | 5.0 mm | 3/16 in |

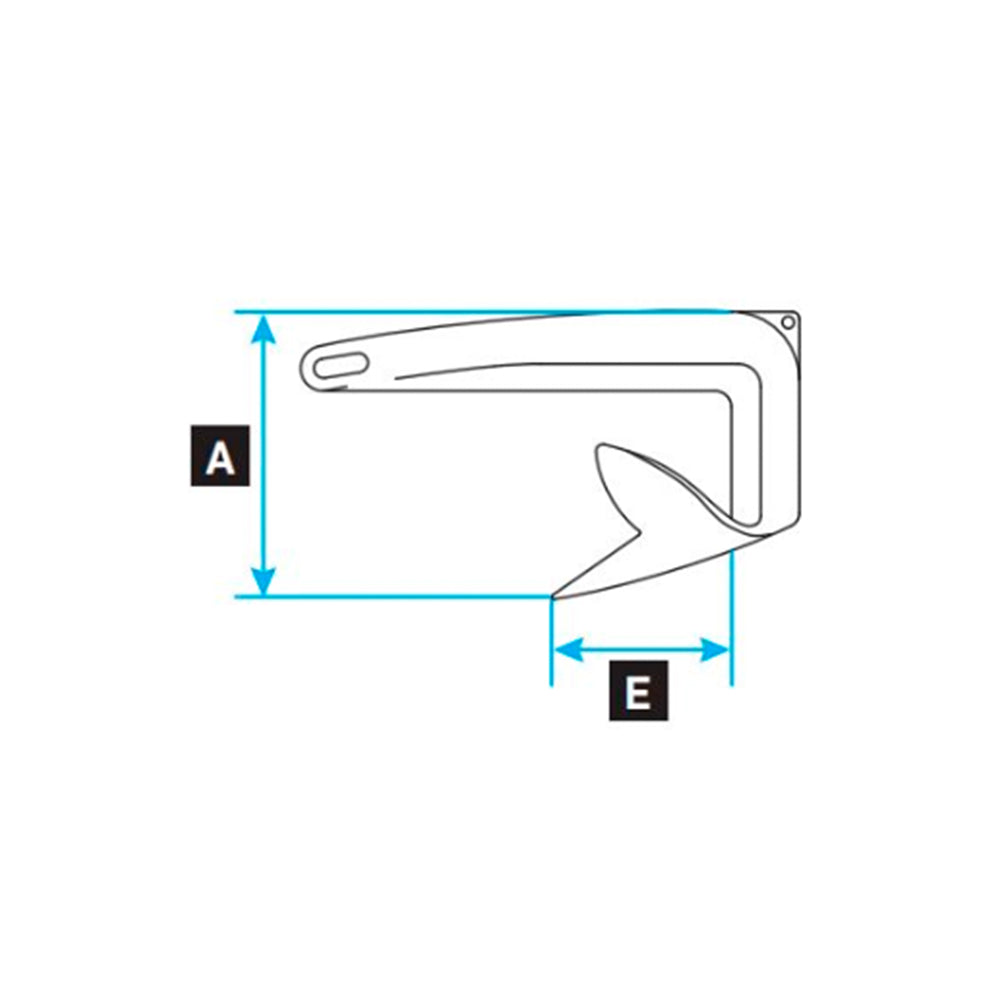

| A | 177.0 ± 8.0 mm | 6 15/16 in |

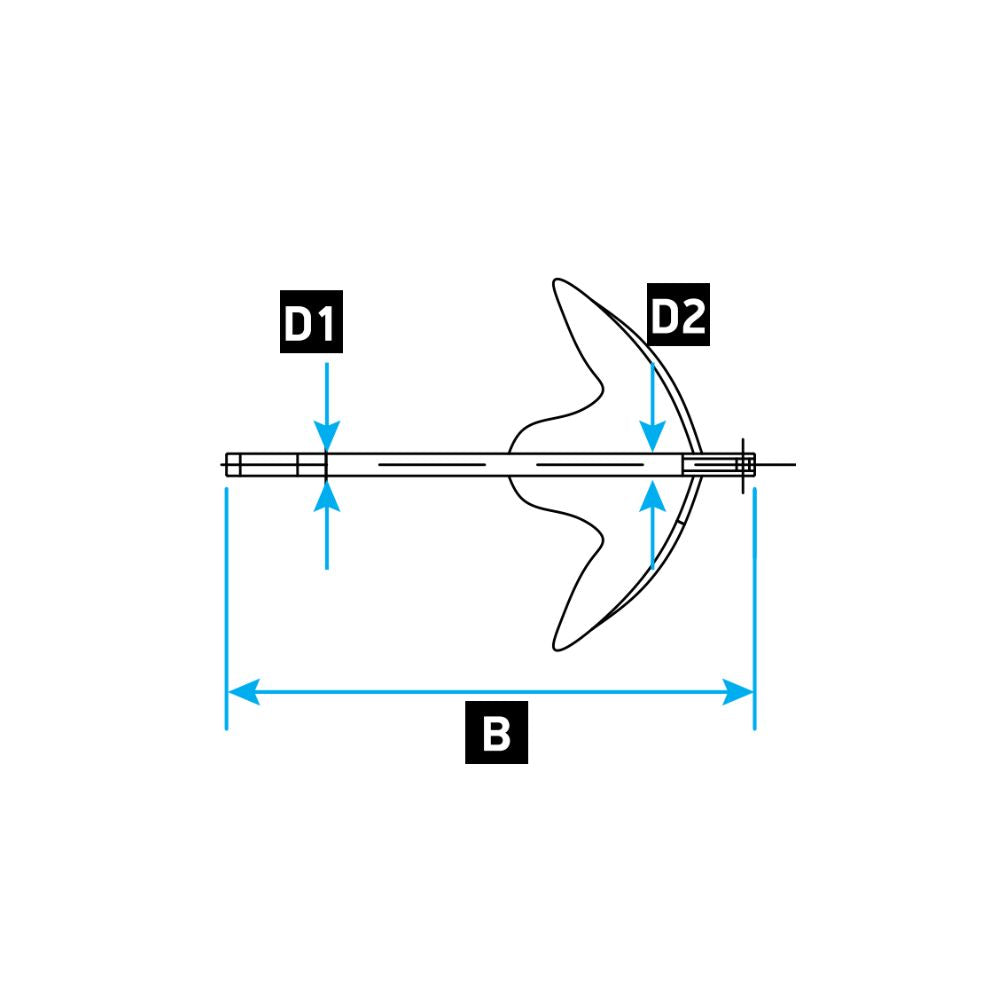

| B | 358.0 ± 4.0 mm | 14.0 in |

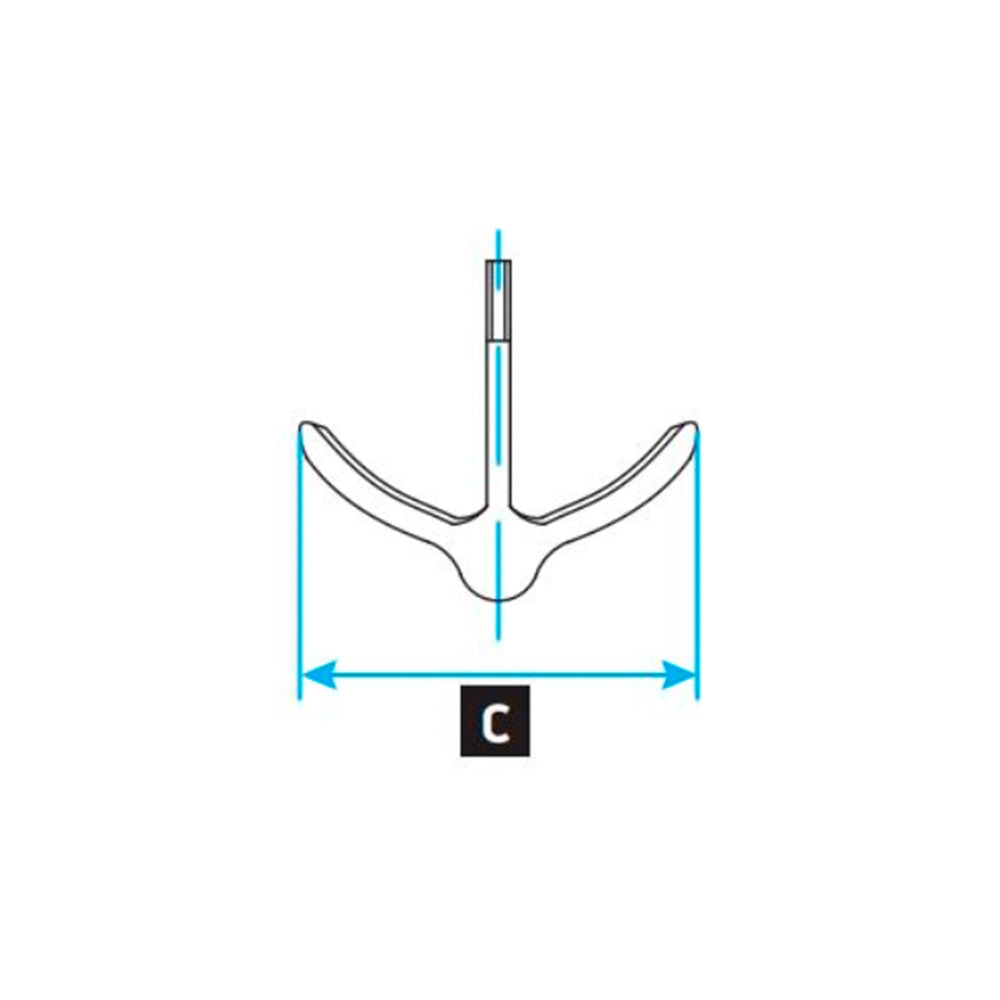

| C | 240.0 ± 8.0 mm | 9 1/2 in |
| D1 | 7.0 ± 2.0 mm | 1/4 in |
| D2 | 9.5 ± 2.0 mm | 3/8 in |
| E | 217.0 ± 6.0 mm | 5.0 in |
