DESCRIPTION
DESCRIPTION

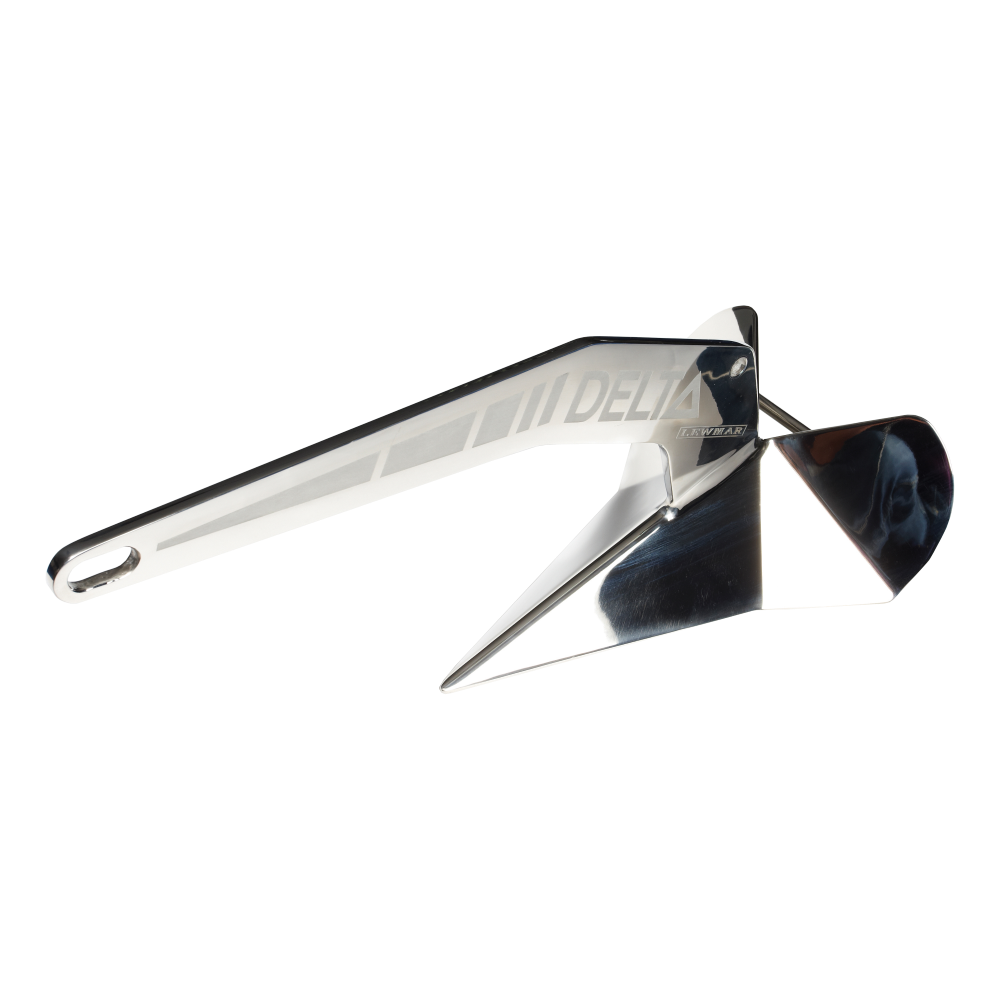

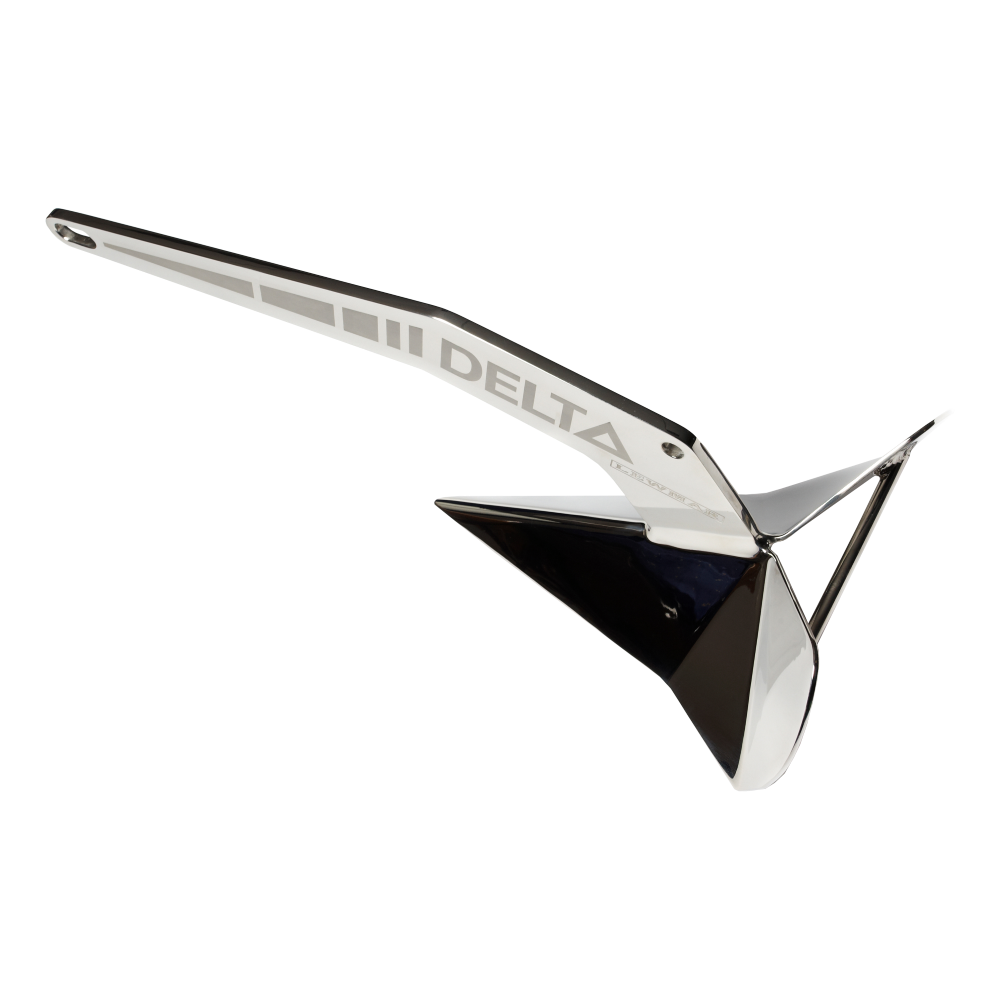

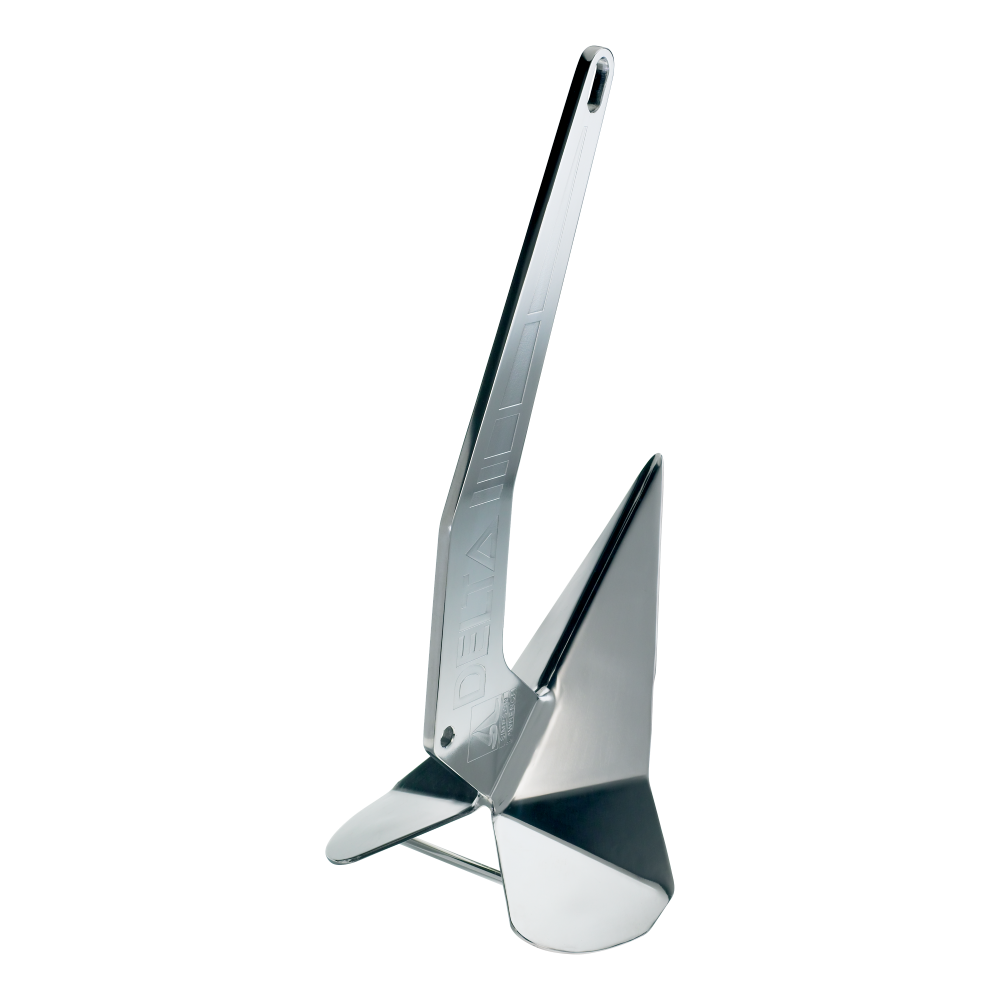

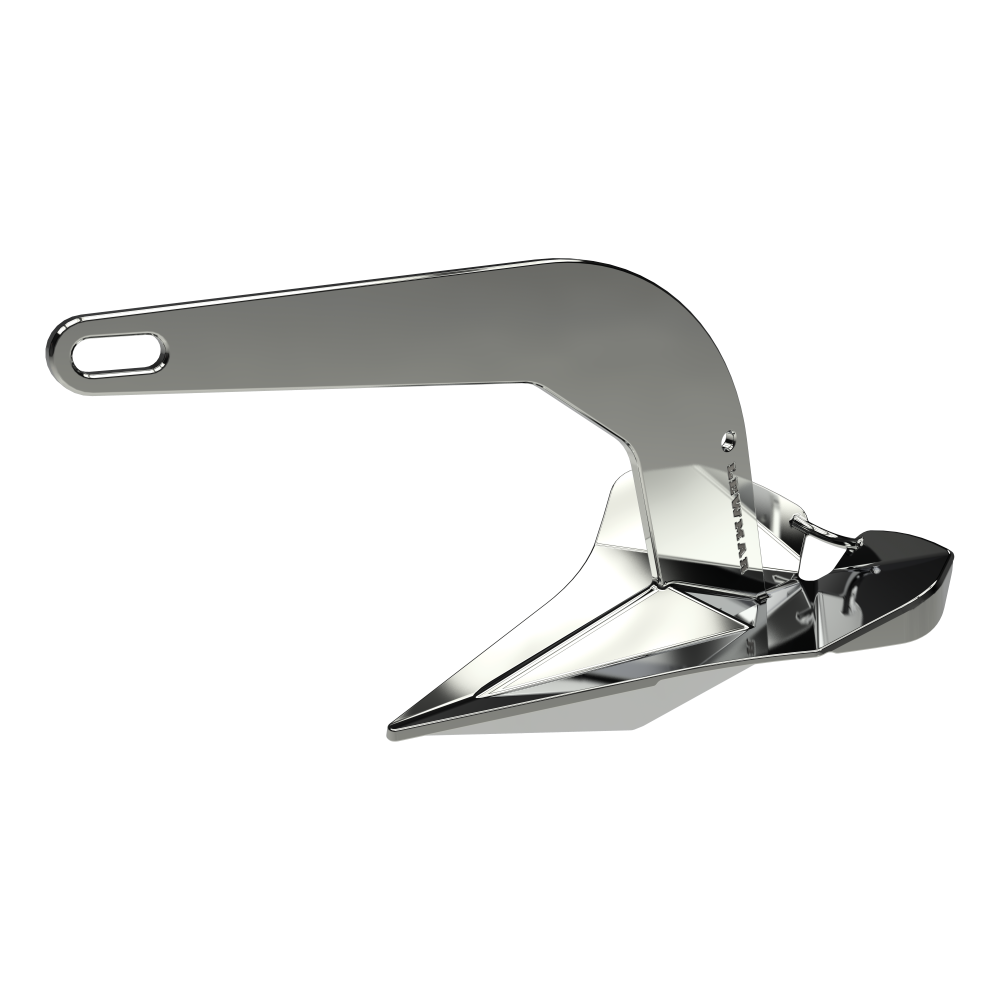

The Delta® anchor is constructed of high-grade manganese steel or Duplex stainless steel for maximum tensile strength. Its unique shank profile and ballasted tip make it self-launching. And its low center of gravity and self-righting geometry ensure that it will set inmediately.
Consistent and reliable in performance, the Delta® anchor is guaranteed for life against breakage, has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organizations.
Our Part # LEW0057350 | Mfr. Part # 57350
FEATURES
FEATURES
- High-grade polished stainless steel construction.
- Maximum holding power for large vessels.
- Fast and consistent setting performance.
- Optimized lead ballast for self-launching.
- Durable one-piece construction for longevity.
TECHNICAL INFORMATION
TECHNICAL INFORMATION

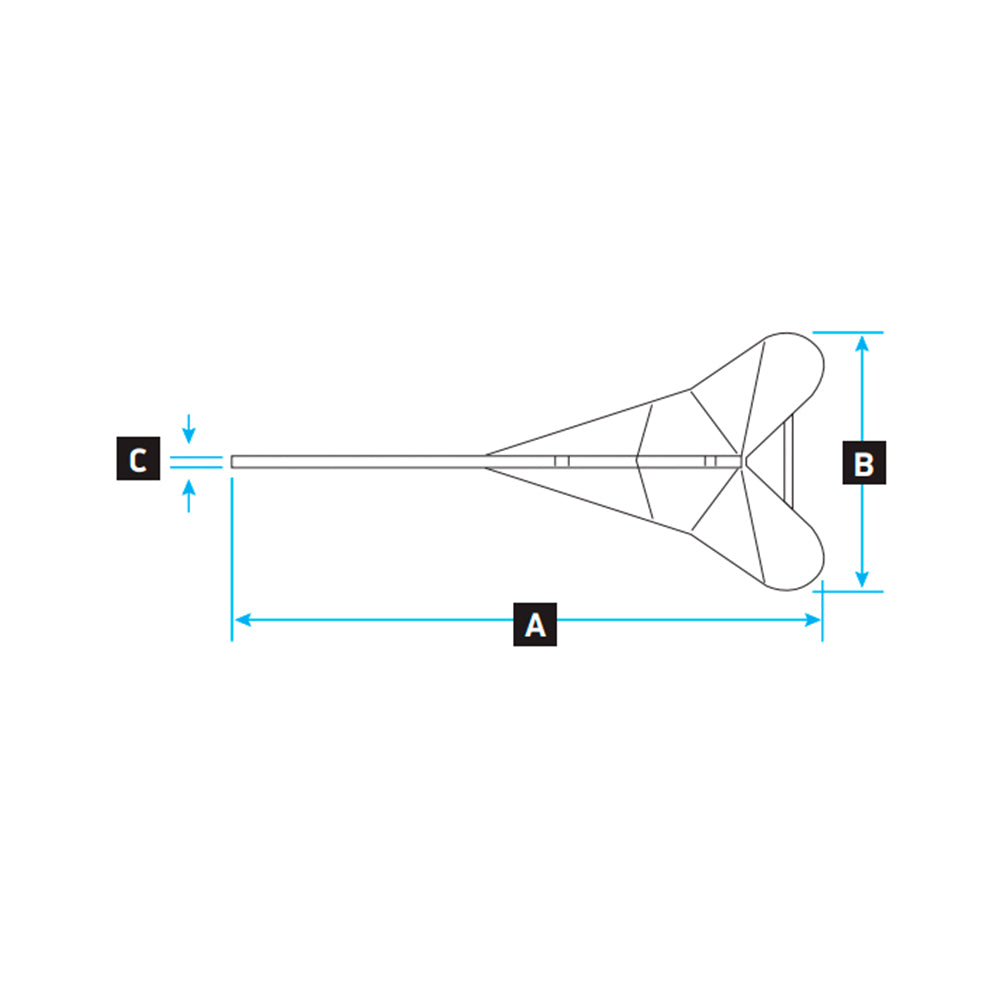

| Description | Metric | Imperial |
|---|---|---|
| Anchor weight | 50.0 kg | 110.0 lb |
| Recommended chain size | 12.0 mm | 1/2 in |
| A | 1175.0 mm | 46 1/4 in |
| B | 520.0 mm | 20 1/2 in |
| C | 20.0 mm | 3/4 in |
| D | 890 mm | 35.0 in |
| E | 479.0 mm | 18 7/8 in |
