DESCRIPTION
DESCRIPTION
The Delta® anchor is constructed of high-grade manganese steel or Duplex stainless steel for maximum tensile strength. Its unique shank profile and ballasted tip make it self-launching. And its low center of gravity and self-righting geometry ensure that it will set inmediately.
Consistent and reliable in performance, the Delta® anchor is guaranteed for life against breakage, has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organizations.
Our Part # LEW0057363 | Mfr. Part # 57363
FEATURES
FEATURES
- Premium 316 stainless steel construction.
- Heavy-duty 140 lb (63.5 kg) design.
- Superior holding power for large vessels.
- Self-launching for easy deployment.
- Lloyd's Register Type Approved.
TECHNICAL INFORMATION
TECHNICAL INFORMATION

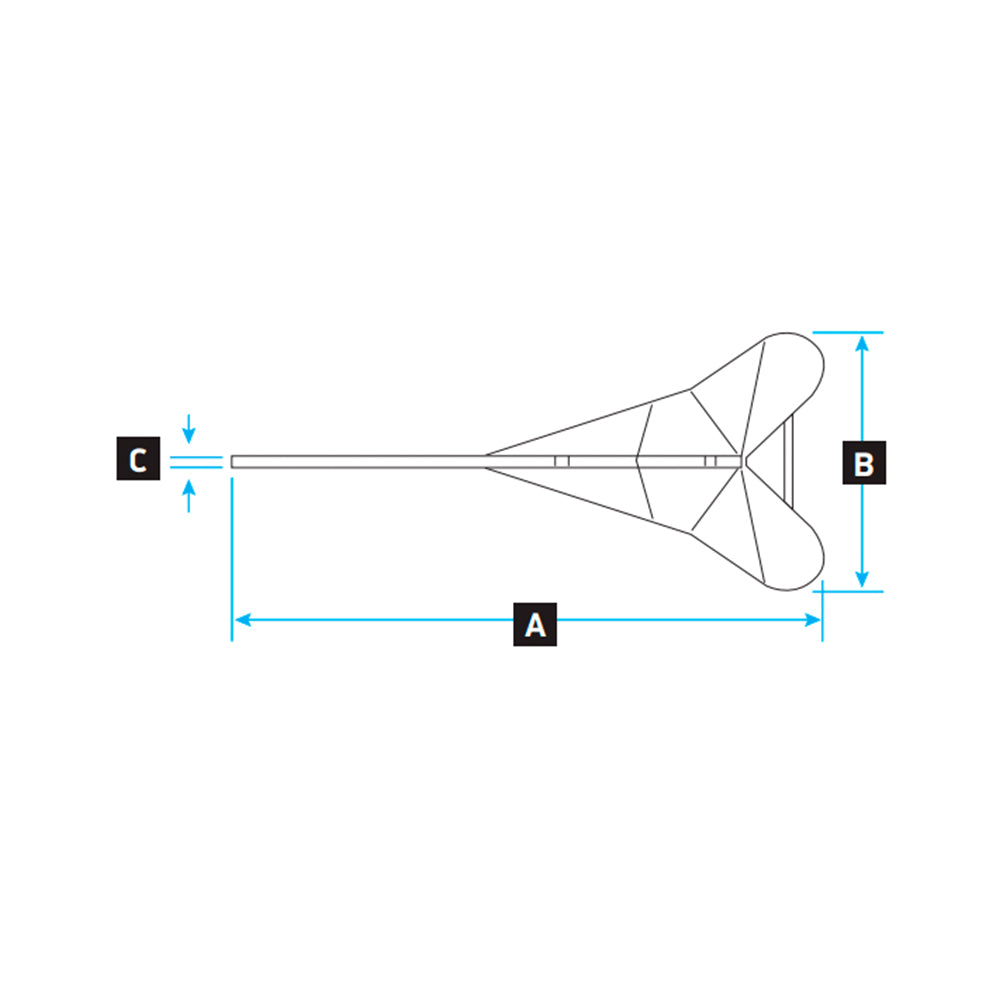

| Description | Metric | Imperial |
|---|---|---|
| Anchor weight | 63.0 kg | 140.0 lb |
| Recommended chain size | 12.0 mm | 1/2 in |
| A | 1278.0 mm | 50 1/4 in |
| B | 568.0 mm | 22 3/8 in |
| C | 22.0 mm | 7/8 in |
| D | 973.0 mm | 38 1/4 in |
| E | 518.0 mm | 20 3/8 in |
