Antal Rope Clutch - Single V-CAM 611 w/ Side Mount - Silver - Line Size: 1/4 in (6 mm) (540.21)
Antal Rope Clutch - Single V-CAM 611 w/ Side Mount - Silver - Line Size: 1/4 in (6 mm) (540.21) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Antal Rope Clutch - Single V-CAM 611 w/ Side Mount - Silver - Line ...
Description
Description

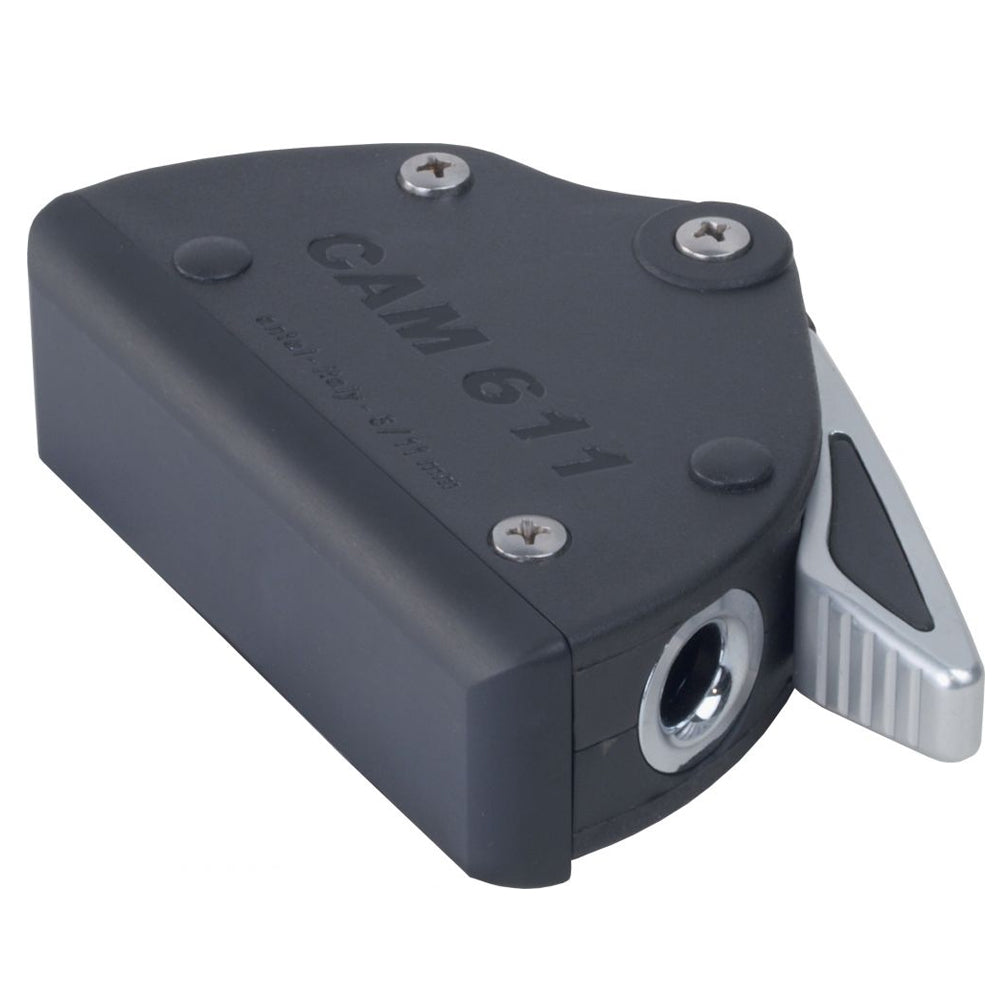

Antal V-Cam 611 Lateral Mount Clutch #540.21 is designed for lines Ø6 mm and features Antal's patented V-Grip system. This system applies pressure on three sides of the rope for superior holding power with less damage to the line. Its curved base increases the bearing surface and includes emergency release under load, making it ideal for performance sailors.
Our Part # ANT540210| Antal Part # 540.21
Technical Information
Technical Information
Length: 119 mm
Width: 33 mm
Height: 73 mm
Weight: 0.51 kg
Min line : 6 mm
Max line: 6 mm
A: 44 mm
B: 36 mm
C: 68 mm
Type: Horizontal
Fixing screws: 2 x 6 mm + 1 x 5 mm
MWL: 400 kg
