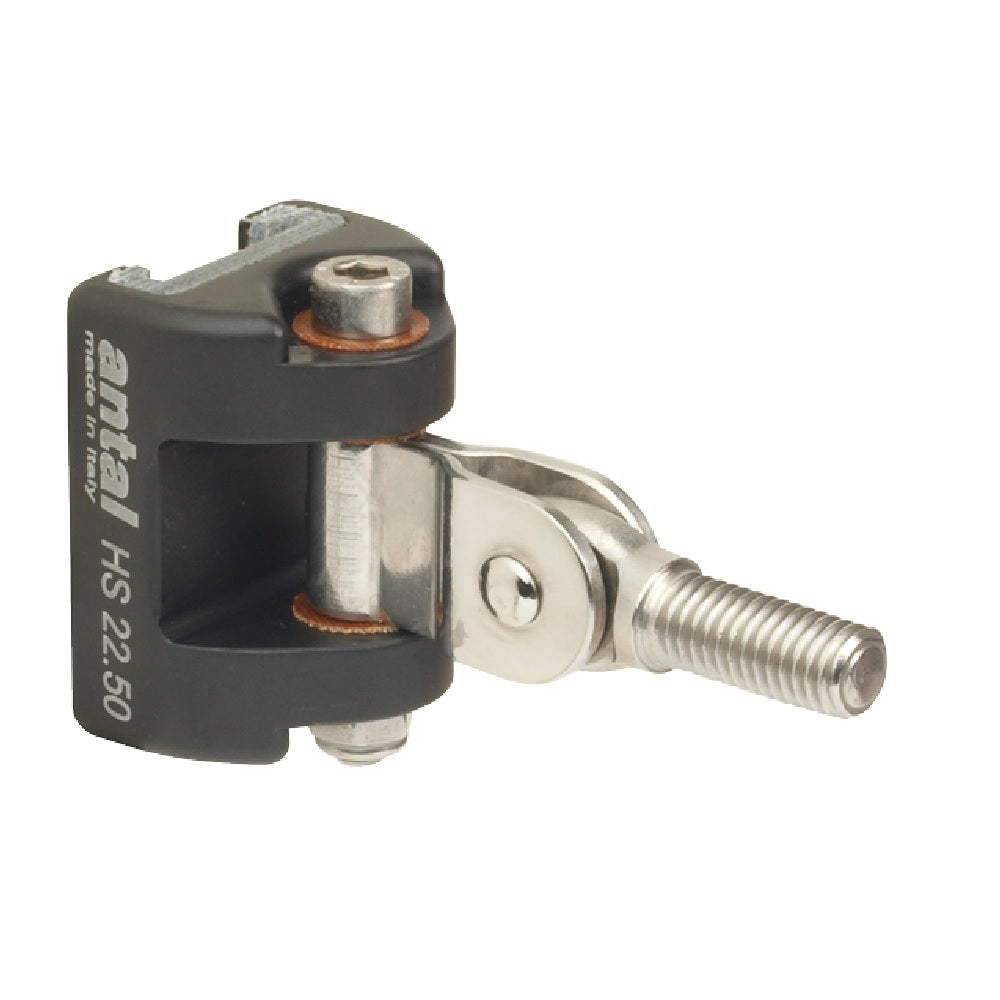

The Antal HS Guide System is designed for boats with full batten mainsails that experience high loads and compression-loading on the mainsail luff.The system's aluminium sliders contain HS composite fibre inserts that run on aluminium track mounted on the mast. HS composite fibre is a new material that is durable over long periods of use and offers extremely low friction coefficients. The material is made from special resins strengthened with fibre and is self lubricating. Our Part # ANTHS2250JR | Antal Part # HS22.50J/R
The system's aluminium sliders contain HS composite fibre inserts that run on aluminium track mounted on the mast. HS composite fibre is a new material that is durable over long periods of use and offers extremely low friction coefficients. The material is made from special resins strengthened with fibre and is self lubricating.
Our Part # ANTHS2250JR | Antal Part # HS22.50J/R
FEATURES
FEATURES
- HS22 Batten Car System.
- Integrated joint for flexibility.
- 10mm stud for batten attachment.
- Car length: 50mm.
- Race version for enhanced performance.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Length | 1 31/32 in. | 50.00 mm. |
| Track Dimensions | 55/64 x 7/16 in. | 22.00 x 11.00 mm. |
| Height | 1 19/64 in. | 33.00 mm. |
| Weight | 0.31 lb. | 140.00 g. |
| SWL | 1763.70 lb. | 800.00 kg. |
| Slot | 1 59/64 in. | 49.00 mm. |
