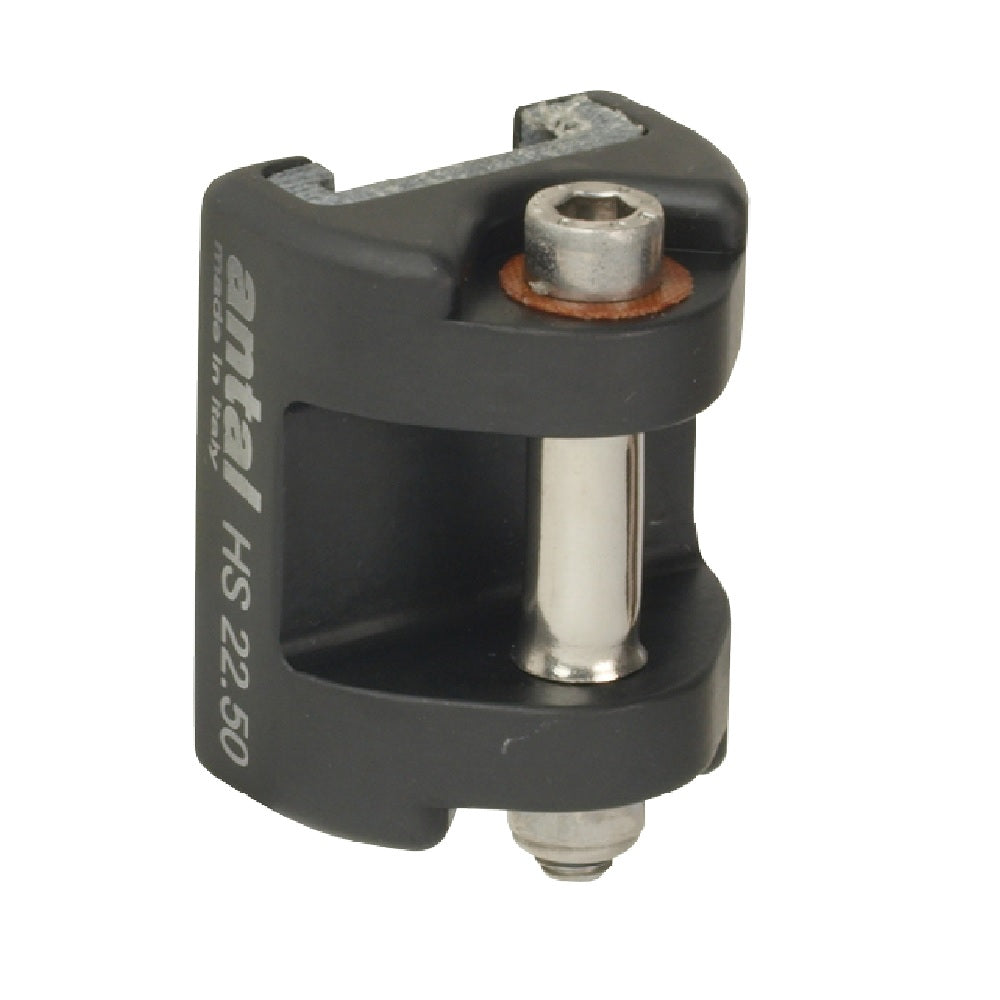

Antal Batten Car System - Intermediate Car - HS22 Race Simple Slider - Length: 50 mm (HS22.50S/R)
Antal Batten Car System - Intermediate Car - HS22 Race Simple Slider - Length: 50 mm (HS22.50S/R) is backordered and will ship as soon as it is back in stock.
Description
Description
Four different slider types may form a Full batten system: simple, with joint, headboard slider and double. What changes are the ways they are connected to the mainsail and their function in the system. All components' dimension and the distances of the sail from the mast are found in the sheet Full Batten Systems ��� Measures.
Our Part # ANTHS2250SR | Antal Part # HS22.50S/R
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Length | 1 31/32 in. | 50.00 mm. |
Track Dimensions | 55/64 x 7/16 in. | 22.00 x 11.00 mm. |
Height | 1 19/64 in. | 33.00 mm. |
Weight | 0.18 lb. | 0.08 kg. |
SWL | 1763.70 lb. | 800.00 kg. |
Slot | 55/64 in. | 22.00 mm. |
